1 / INSTALLING YOUR APPLIANCE
These hobs must be connected to the power
grid via an all-pole cut-off device that com-
plies with installation regulations in effect.
A disconnection device must be incorporated
into the fixed wiring.
Your appliance must be positioned so that the
power plug is accessible.
When power is first supplied to your hob, or after
an extended power outage, an indicator light will
appear on the control panel. It automatically
disappears after approximately 30 seconds, or
as soon as any touch control on the control
panel is pressed. (This display is normal and, if
needed, serves as an indication to the after-
sales service staff. In all cases, the user of the
hob should disregard it).

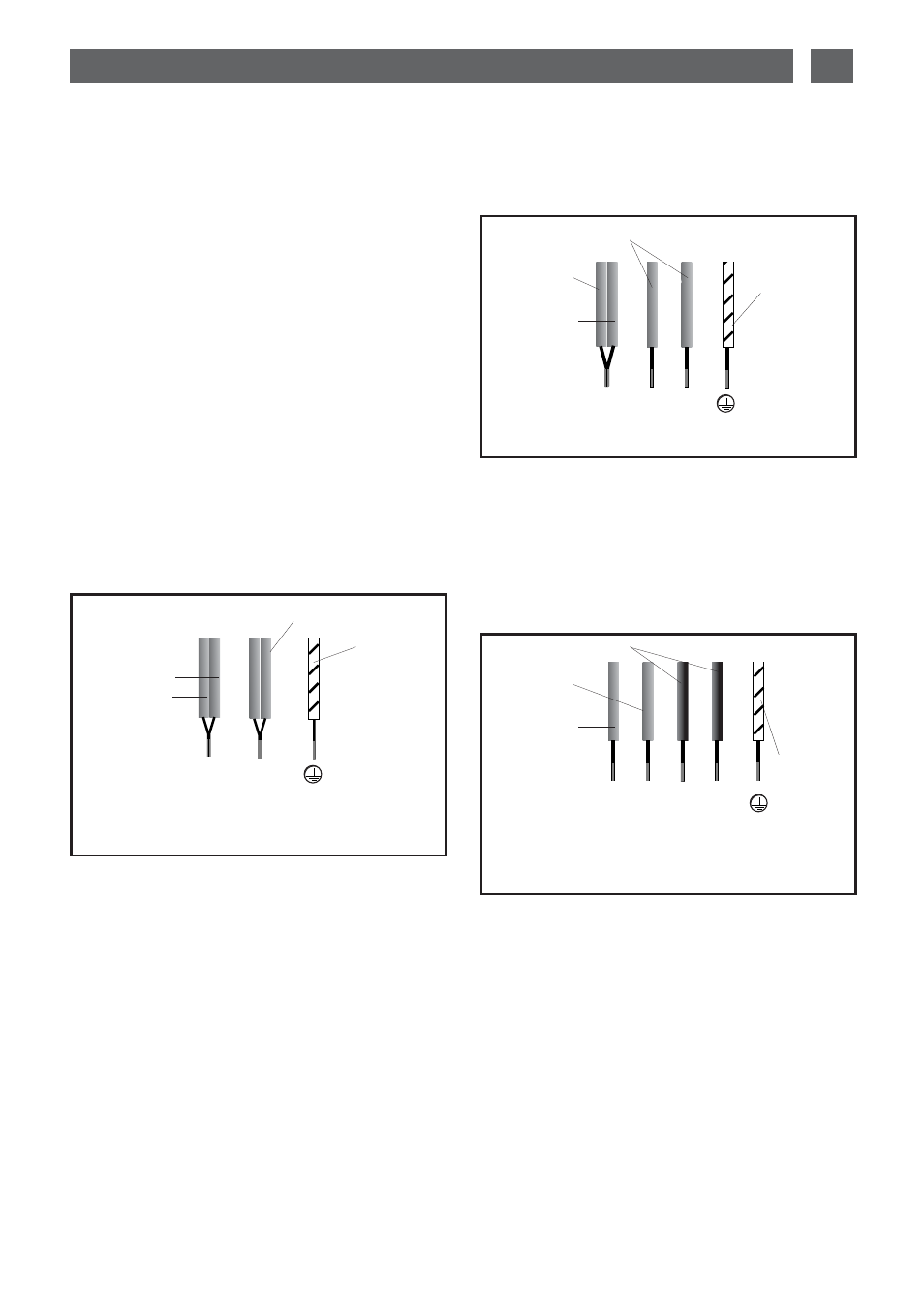

HOOK-UP •
N
e
u
tra
l
E
art
h
Ph
ase
N L
Green/yellow
Blue
Black-grey
Brown
•220-240V ~ hook-up
32A
Separate the two phase wires (L1 and L2)
before hooking up.
Neutral Earth Phase
N L1 L2
Blue
Green/yellow
Black-grey
Brown
When connecting a three-phase 400 V 2N, if
your hob malfunctions, check that the neu-
tral wire is properly connected.
•400V 2N
~
- 16A hook-up
Separate the wires before hooking up.
Neutral Earth Phase
N1 L1 L2
Blue
Green/
yellow
Black-grey
Brown
•2x230V 2L+2N
~
- 16A hook-up
N2
