9

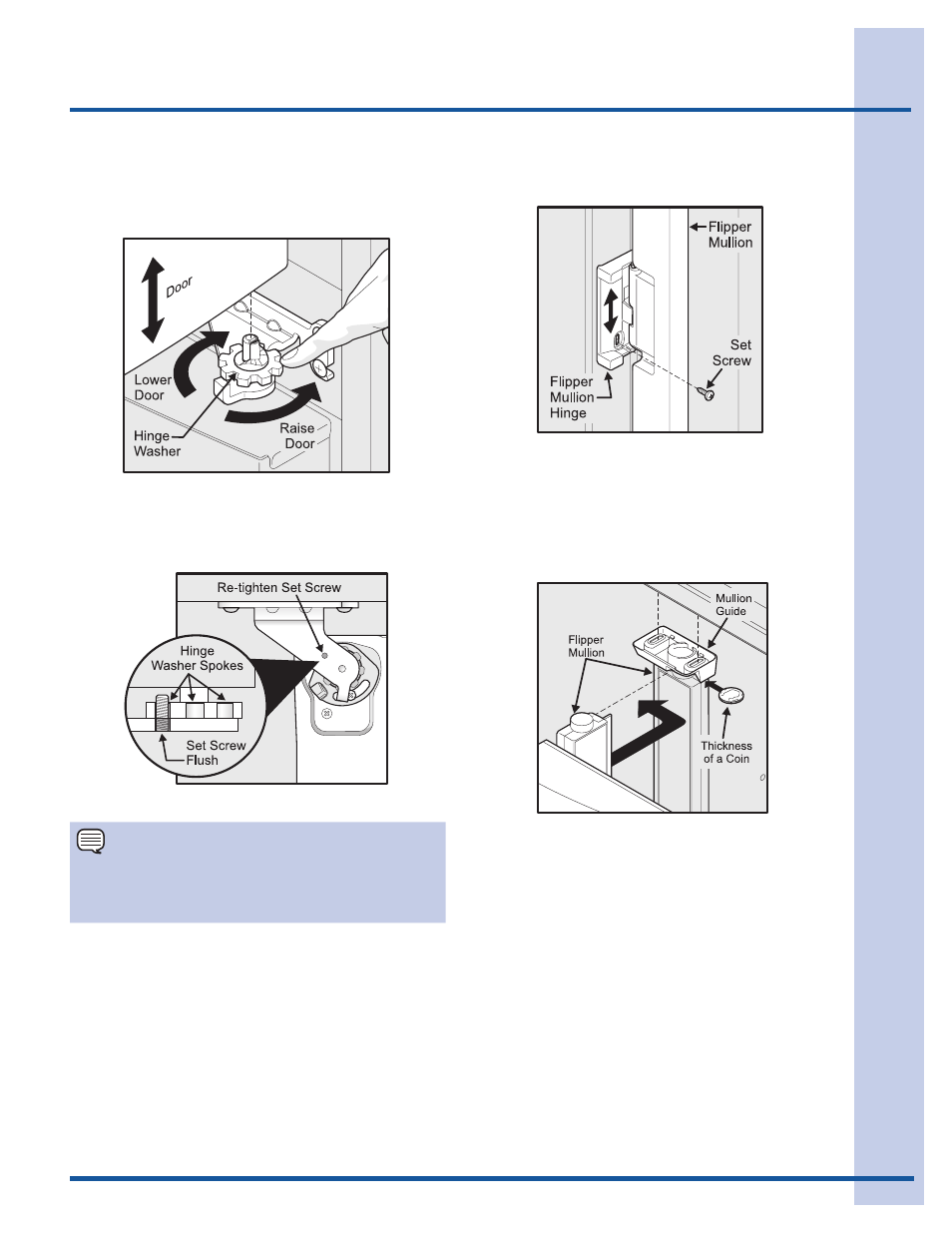

Adjusting Flipper Mullion Screw
Installation
To adjust the flipper mullion:
1 Loosen the set screw located on the flipper
mullion hinge.
2 Adjust flipper mullion height. For proper
connection with the flipper mullion guide, there
should be a separation about the thickness of a
coin (0.060 inches, or 1.5 mm) between the guide
and flipper mullion.
3 Re-tighten set screw.
4 Lift the door while adjusting the washer. To
raise the door, rotate washer clockwise (when
viewed from the bottom). To lower door, rotate
washer counter-clockwise (when viewed from the
bottom).
5 Re-tighten the set screw, ensuring it is between
the spokes of the set washer. Set screw will not
be tight, just insert until it is flush with the hinge.
Adjusting Flipper Mullion Height
Set Screw
Raising/Lowering Door
NOTE
If after adjusting doors higher the door makes a
popping/clicking sound, remove set screw and
replace with a longer one.
