Do not – SAF-HOLLAND XL-FW418-01 FW83 LowLube Fifth Wheel User Manual
Page 7
DO NOT
RELY ON
SOUND
7
OPERATING
INSTRUCTIONS
COUPLING PROCEDURES

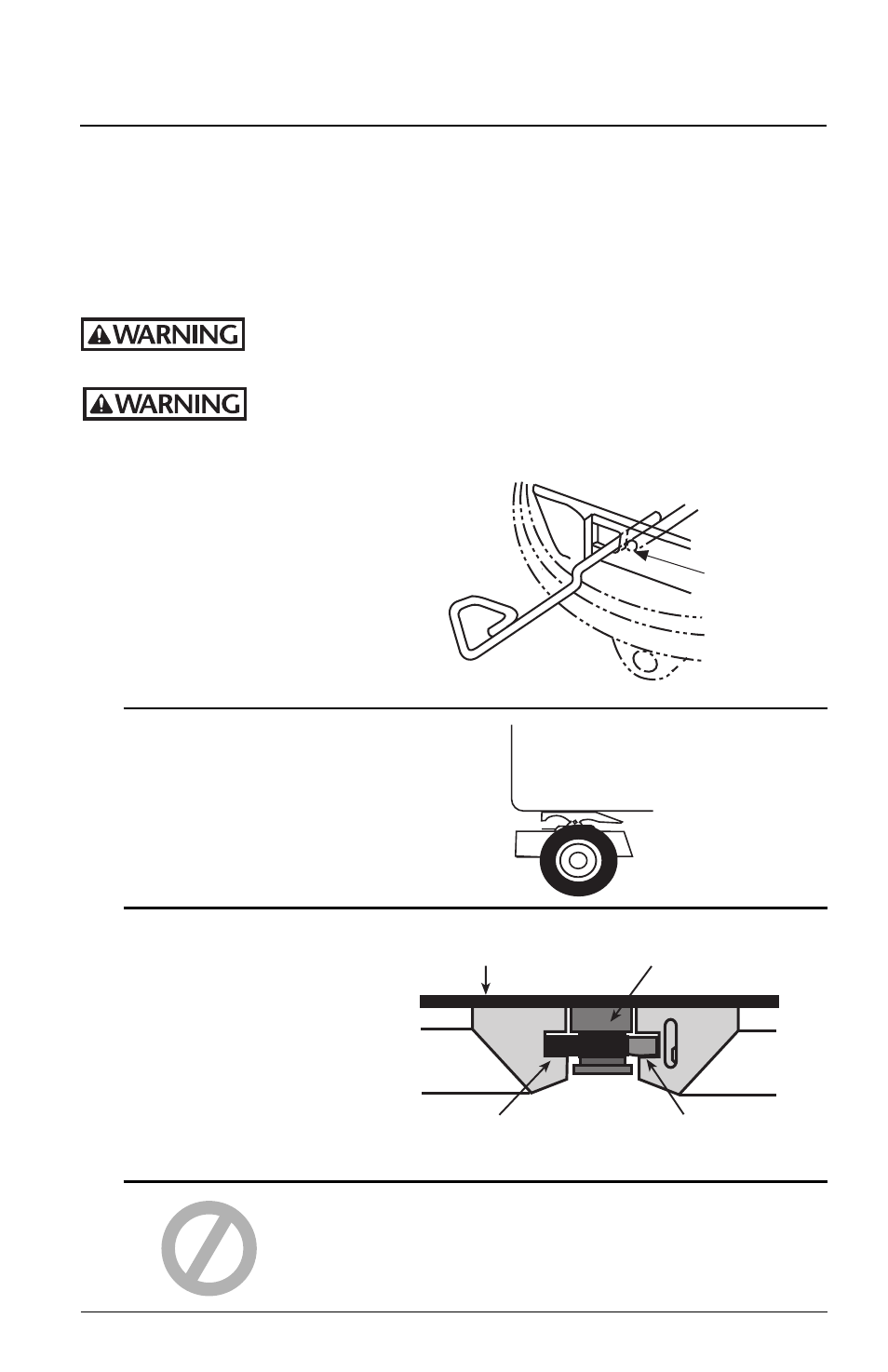

11. Visual Inspection.
GET OUT OF THE TRACTOR!
VISUALLY check that the lock is CLOSED!
LOCK
NOTCH
BEHIND
RIB
CHECK
RELEASE
HANDLE
➠
➠
CLOSED POSITION
➠
NO GAP!
PLUNGER
LOCK JAW
AROUND
KINGPIN
PLUNGER
VISIBLE AS
SHOWN
TRAILER BOLSTER
PLATE
KINGPIN
✓
1
✓
2
✓
3
XL-FW418-01 Rev C
An improperly coupled tractor and trailer may separate while
in use which, if not avoided, could result in death or
serious injury.
Do not use any fifth wheel that fails to operate properly. Failure
to properly couple tractor and trailer may allow separation
while in use which, if not avoided, could result in death or serious injury.
If you do not obtain a proper couple, repeat the coupling sequence.
