15 XL-FW418-01 Rev C
MAINTENANCE
PROCEDURES
REQUIRED INSPECTION AND ADJUSTMENT
Perform the following every six months or 60,000 miles, whichever
comes first. Thoroughly steam clean all components before inspecting
or adjusting.
General Fifth Wheel Inspection
1. Inspect the fifth wheel mounting. Check torque and replace any
missing or damaged bolts. Check for broken, worn or damaged
parts, replace as needed.
2. Thoroughly clean the fifth wheel locking mechanism every 6
months or 60,000 miles and relubricate (see Figure 1). Re-check
operation with TF-TLN-5001 Lock Adjustment Tool.
3. Inspect the fifth wheel for bent, worn or broken parts. Replace
with Holland parts only.
4. Make sure the bracket pin retention bolts and locknuts are in
place and tight, as shown in Figure 2.
5. Confirm that the lube plates are in place and properly attached.
6. Clean lube plates when dry, dirty residual grease base is present.
A scratch-brite pad can be used to clean the plate.

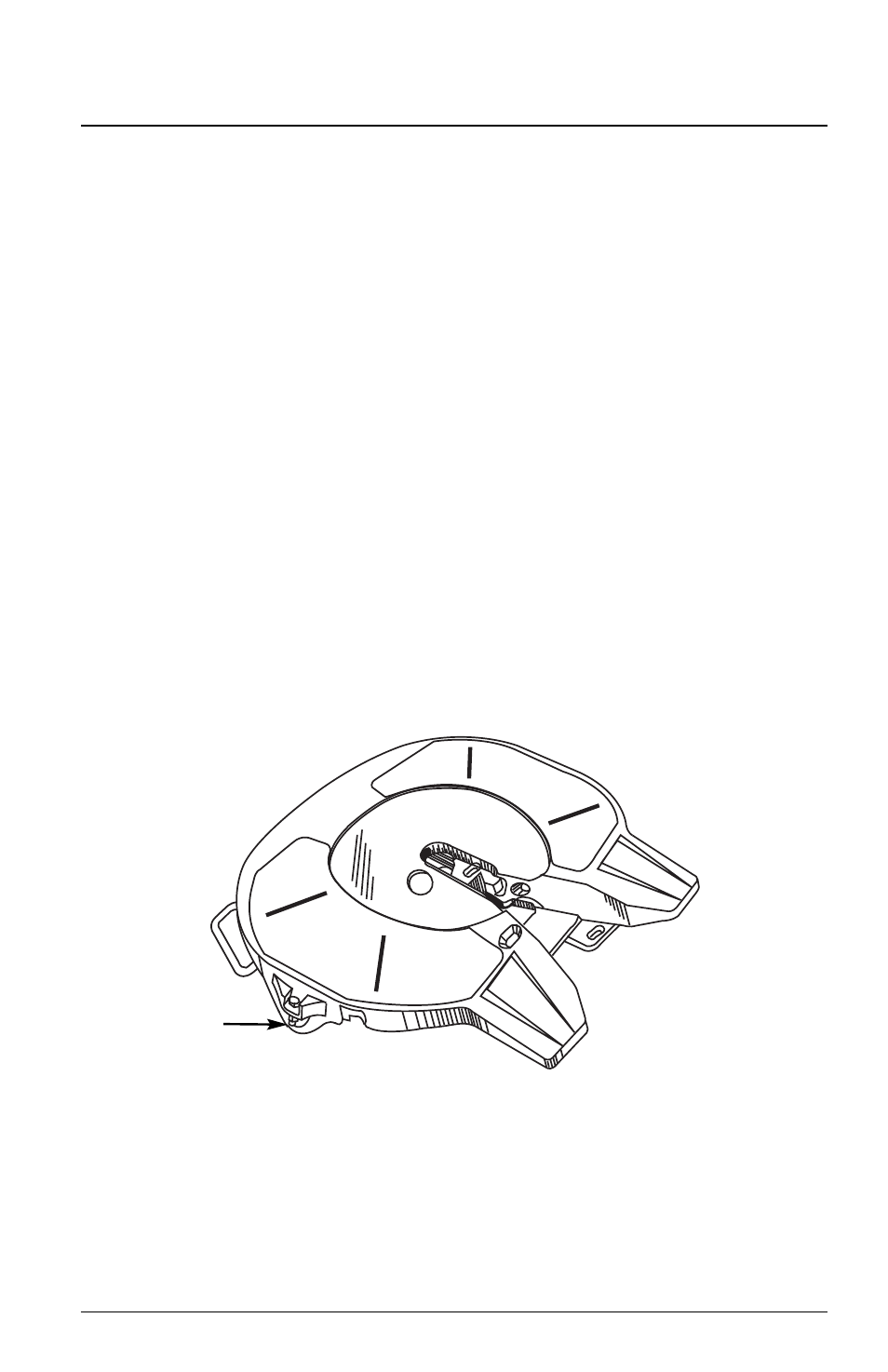

Figure 2
Make sure bolt
and nut are in
place and tight
(both sides)
