Page 12
12
XL-FW418-01 Rev C
OPERATING
INSTRUCTIONS
FIFTH WHEEL SLIDE ADJUSTMENT
5. Slowly drive the tractor forward or backward to position the fifth wheel.
6. Re-engage the slide locking plungers.Verify that both plungers have fully
engaged (locked).
NOTE: Retract landing gear if lowered.
Do not operate the vehicle if the plungers are not fully
engaged (locked). Failure to properly engage plungers and
slide base may cause loss of vehicle control which, if not avoided, could result in
death or serious injury.

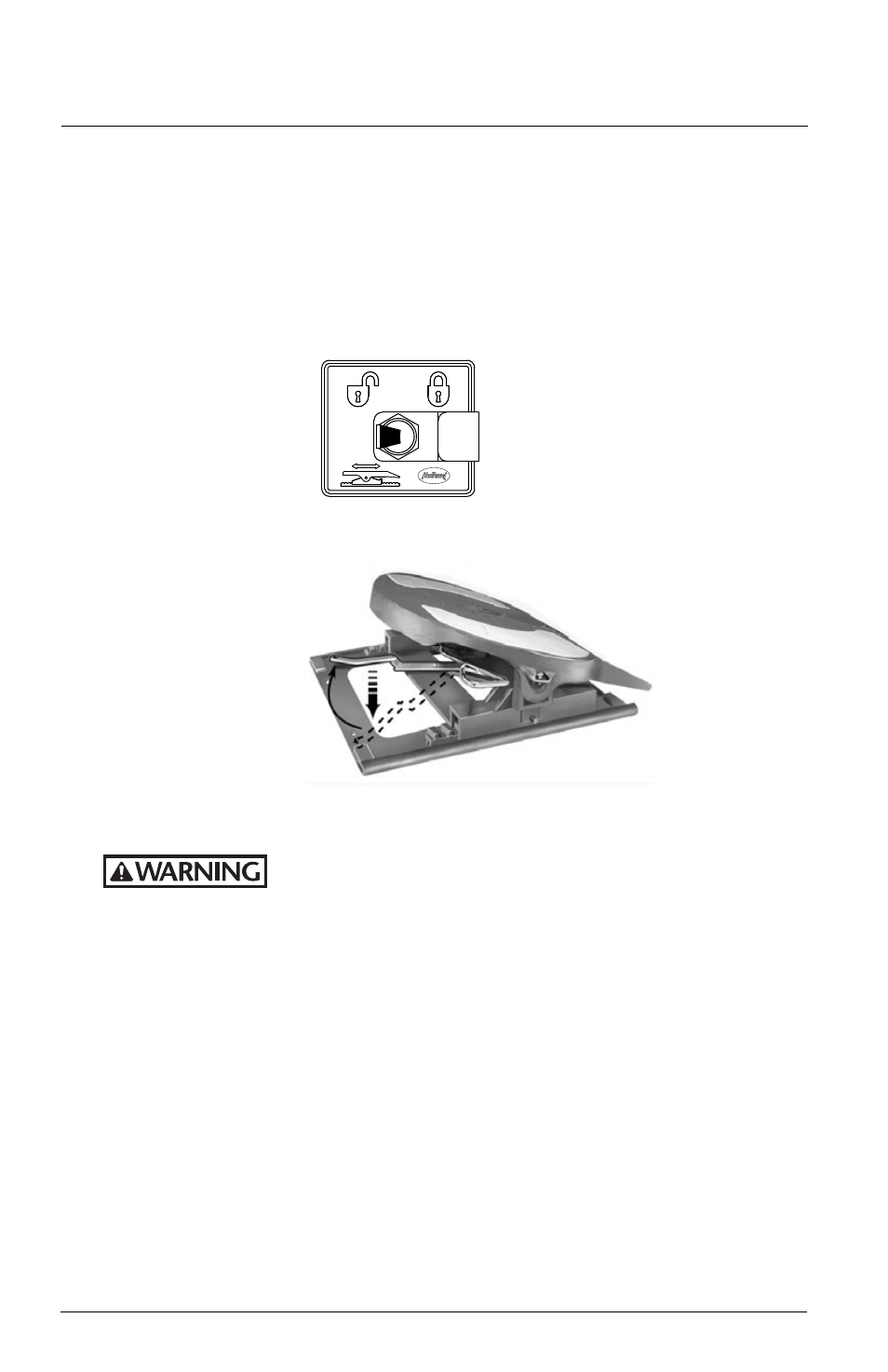

Trip the
release lever
by tapping it
downward as
shown, and
allowing it to
spring back.
MANUAL
SLIDE
AIR
OPERATED
Move cab switch
to lock position.
NOTE:
Switch style may differ
by OEM design.
