XL-FW418-01 Rev C 11
OPERATING
INSTRUCTIONS

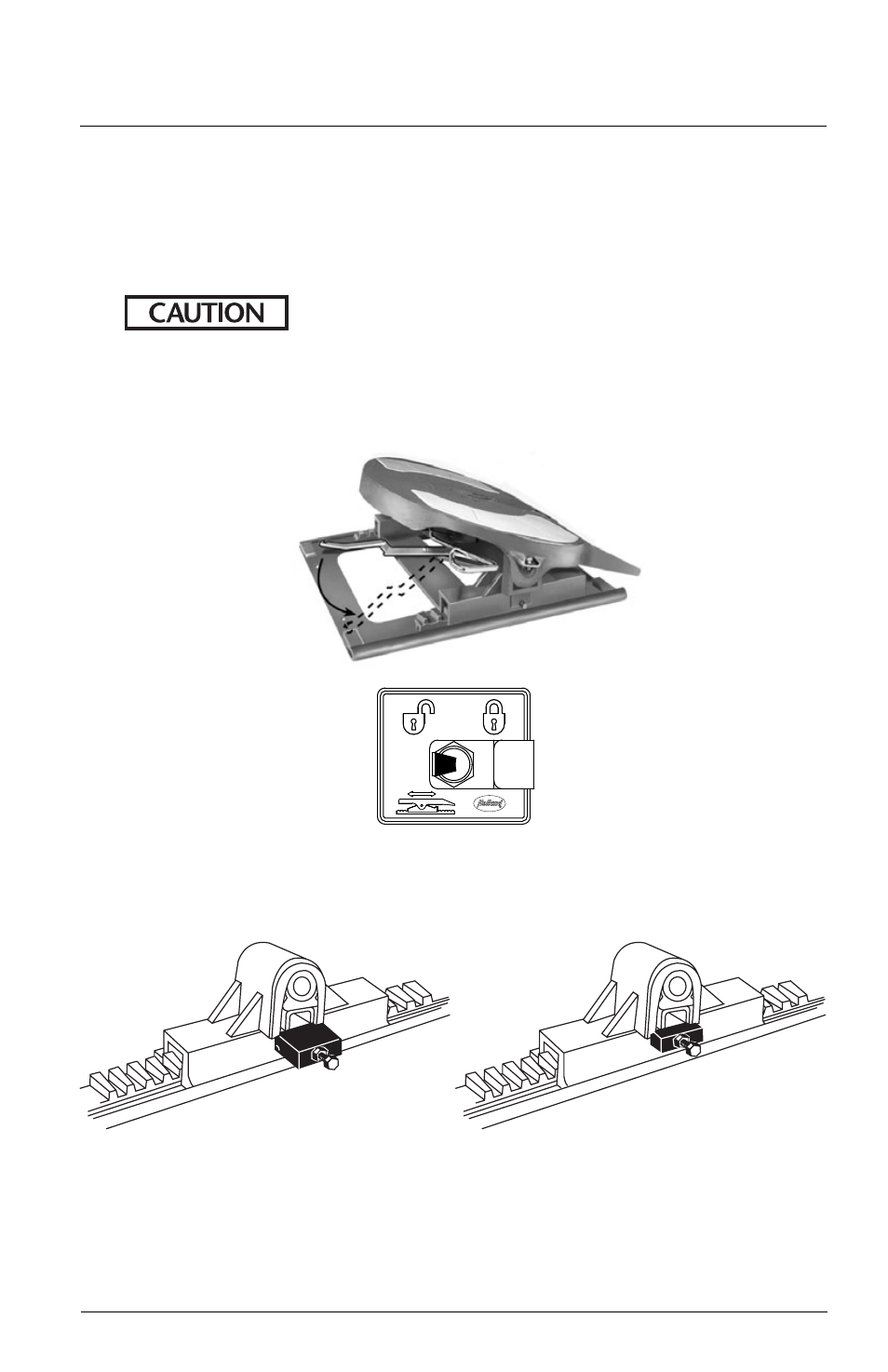

FIFTH WHEEL SLIDE ADJUSTMENT
1. Position tractor and trailer in a straight line on level ground.
2. Lock the trailer brakes.
3. Release slide locking plungers.
4. Visually check that both plungers are fully extended (unlocked),
as shown in Figure 4A.
NOTE: If the plungers do not release, using low gear on the landing
gear, raise the trailer to relieve pressure on the plungers. This will
allow the fifth wheel to slide easier.
AIR
OPERATED
MANUAL
SLIDE
Move cab switch
to unlock position.
Pull release
lever, lift up
and hook
in place.
ENGAGED
(LOCKED)
Figure 4B
The trailer must be stopped and the trailer brakes
locked to prevent damage to the tractor or trailer
by uncontrolled sliding of the fifth wheel.
EXTENDED
(UNLOCKED)
Figure 4A
NOTE:
Switch style may differ
by OEM design.
