– 28 –

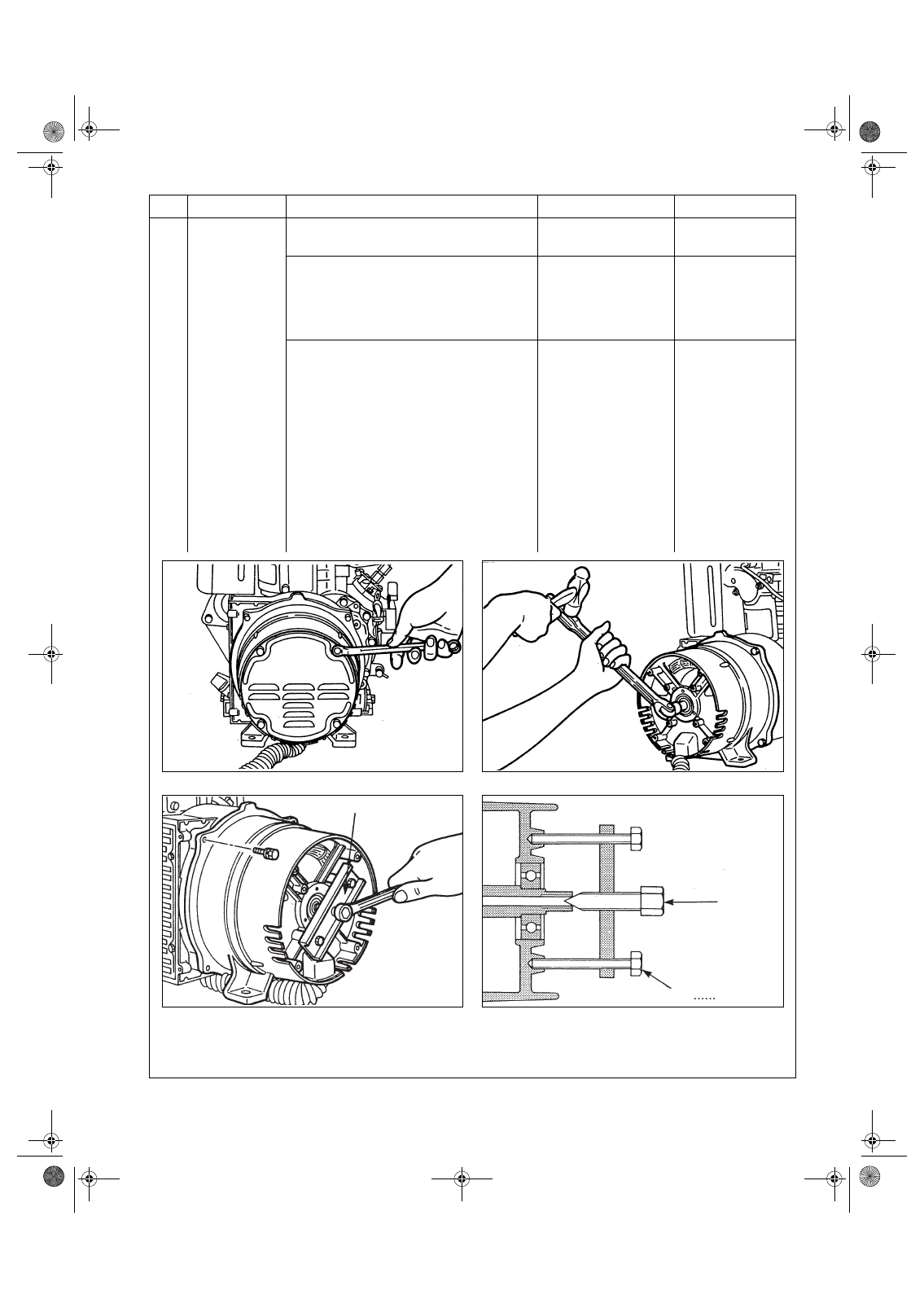

4 Rear Cover (1) Remove end cover from rear cover.
6 ø bolt................................ 4 pcs.
10 mm spanner or
box wrench
(2) Remove through bolt from rotor shaft.
Apply a socket wrench on the head of
through bolt and hit the wrench handle
with a hammer counterclockwise to
loosen.
RGD3300H: 14 mm
RGD5000H: 14 mm
Box wrench
(3) Remove the four bolts which join the
rear cover to the front cover.
(4) Take off the rear cover.
Use the special tool “REAR COVER
PULLER” to remove the rear cover.
a. Insert the two bolts of the special
tool into the thread holes of the rear
cover.
b. Apply the center bolt of the special
tool to the center hole of the rotor
shaft.
c. Tighten the center bolt to pull out
the rear cover.
Insert the two bolts
sufficiently and evenly,
or the thread holes
may be damaged at
removing.
Step Part to remove Description Remarks Tool
REAR COVER PULLER
BOLT
6ø BOLT 2 pcs.
