– 26 –

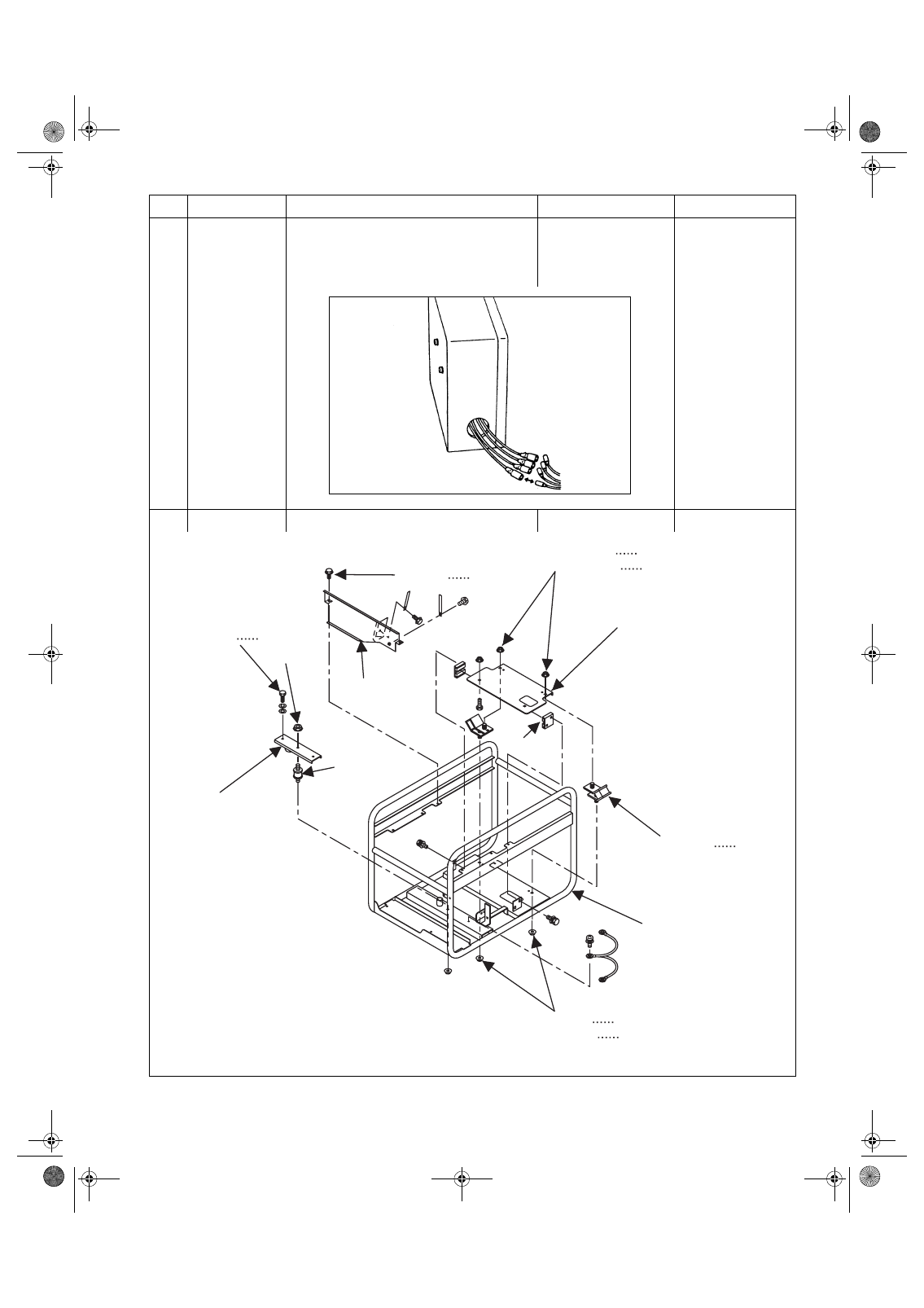

2 Control Box (6) Pull the wire harness out from the con-
trol box.
Disengage the connectors to separate
the control box.
3 Pipe Frame
Step Part to remove Description Remarks Tool
PIPE FRAME
GENERATOR BASE
MOUNT RUBBER
MOUNT RUBBER 2 pcs.
RGD3300H: 8 ø NUT
RGD5000H: 10 ø NUT 2 pcs.
2 pcs.
8 ø NUT
8 ø BOLT 2 pcs.
6 ø BOLT 2 pcs.
FUEL TANK
BUFFLE PLATE
ENGINE BASE
STOPPER
RGD3300H: 8 ø NUT
RGD5000H: 10 ø NUT 2 pcs.
2 pcs.
