- 10 -

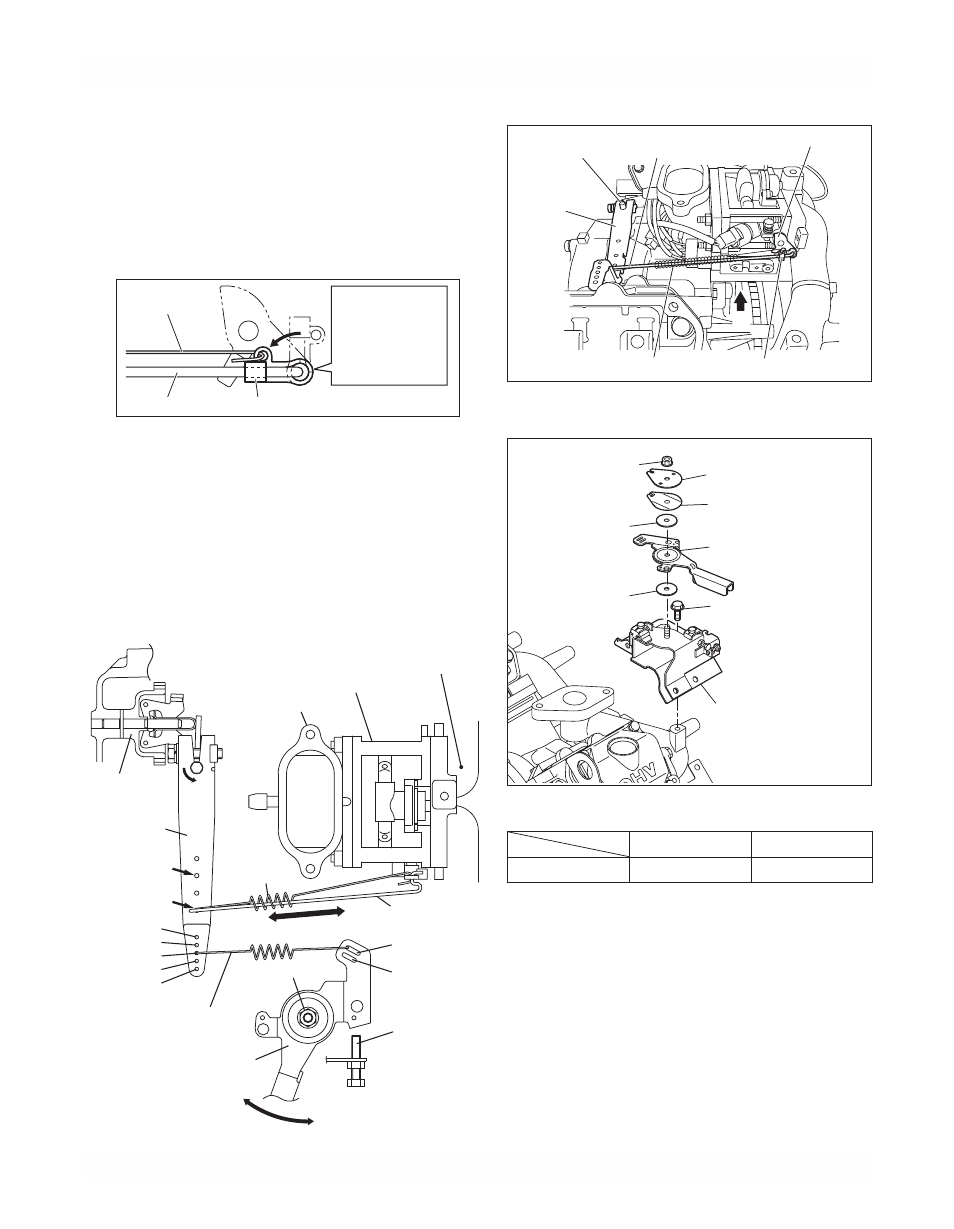

23) GOVERNOR LEVER
Attach governor rod and rod spring
between governor lever and throttle body
throttle lever, and insert the governor lever
to governor lever shaft . Tighten locking bolt
temporarily .
24) SPEED CONTROL LEVER
(1) Install speed control bracket onto intake
manifold .
(2) Attach return spring, spacer, friction
washer, wing nut, etc . to speed control lever
as shown in the ilustration .
(3) Connect governor spring to governor lever
and speed control lever .
GOVERNOR
SHAFT
GOVERNOR
LEVER
ROD SPRING
GOVERNOR
ROD
ROD HOLDER
THROTTLE LEVER
A
L
R
ROD
SPRING
GOVERNOR ROD ROD HOLDER
Turn the rod holder
counter clockwise
and fix it.
Then hook the rod
spring as shown
on the diagram.
VIEW
A
STOP PLATE
SPRING WASHER
SPEED CONTROL
LEVER
M6 FLANGE
BOLT
M6 SELF LOCK
NUT
FRICTION
WASHER
FRICTION
WASHER
BRACKET UNIT,
speed control
E
D
*29(5125
*($5
*29(5125635,1*
$'-867,1*
6&5(:
63(('&21752//(9(5
*29(5125
/(9(5
*29(5125
52'
52'635,1*
&/($1(5$'$37(5
7+5277/(%2'<
)8//23(1
)8//&/26(
/2&.187
+,*+63(('
/2:63(('
$
%
,17$.(0$1,)2/'
/
5
Fitting location of governor rod and governor spring
50 Hz 60 Hz
EH72 FI NA A-2(a)
