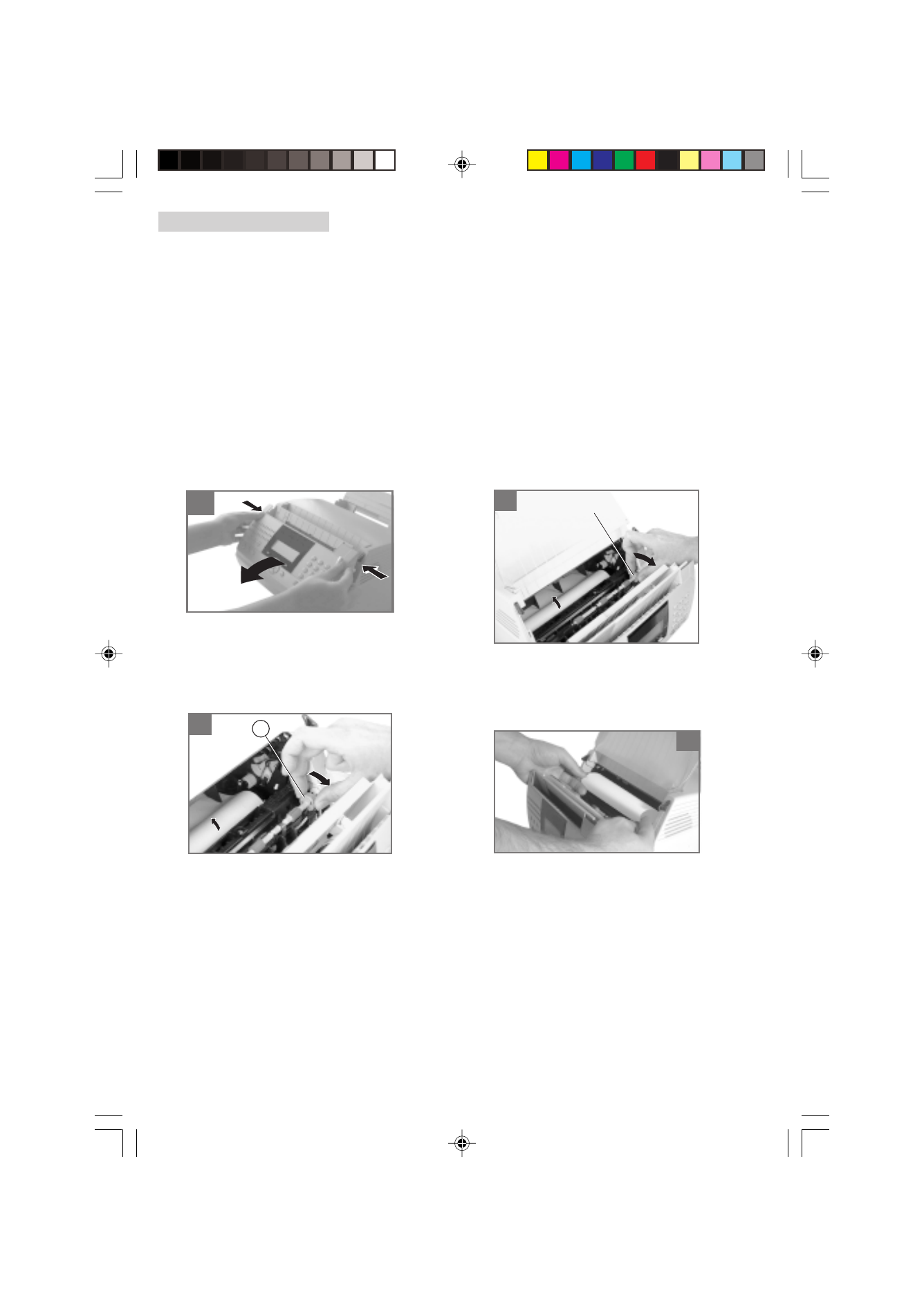

1- Open the cover housing the scanning assembly by
simultaneously pressing on the buttons located on either
side.
Wait a few minutes for the heat elements to cool down.
Remove the toner cartridge and photosensitive drum.
2- Hold the toothed wheel (A) and turn it in the
direction shown
3- Un-jam the sheet of paper completely towards
the back by turning the toothed wheel (A).
INVALID GAUGE
The ON icon is flashing red. Install the toner gauge (see the Installing the gauge paragraph), or check whether the gauge
installed is working.
CHECK PRINTER: XY
Open and close the cover housing the scanning assembly. If the error persists, contact
your local TA distributor.
CHECK PAPER
LOAD PAPER
Reload paper into the paper tray (see the INSTALLATION chapter).
3
4
4- Remove the sheet of paper by pulling it out
towards you.
A
2. PRINTER ERRORS
When you open the printer cover, a message appears on the unit’s display:
IF NEW TONER
CHANGE GAUGE
This message reminds you that you should change the gauge when you replace the printer toner cartridge.
PAPER EMPTY
Insert more paper into the paper tray.
CHANGE TONER
The TONER icon at the low part of the display is lit.
1) TONER out: change the toner cartridge and gauge.
2) Missing toner cartridge: insert the toner cartridge into place.
Note:
The TONER icon will start to flash when the TONER is low.
PAPER JAM
The PAPER JAM icon flashes at the low part of the display.
1 2
