13

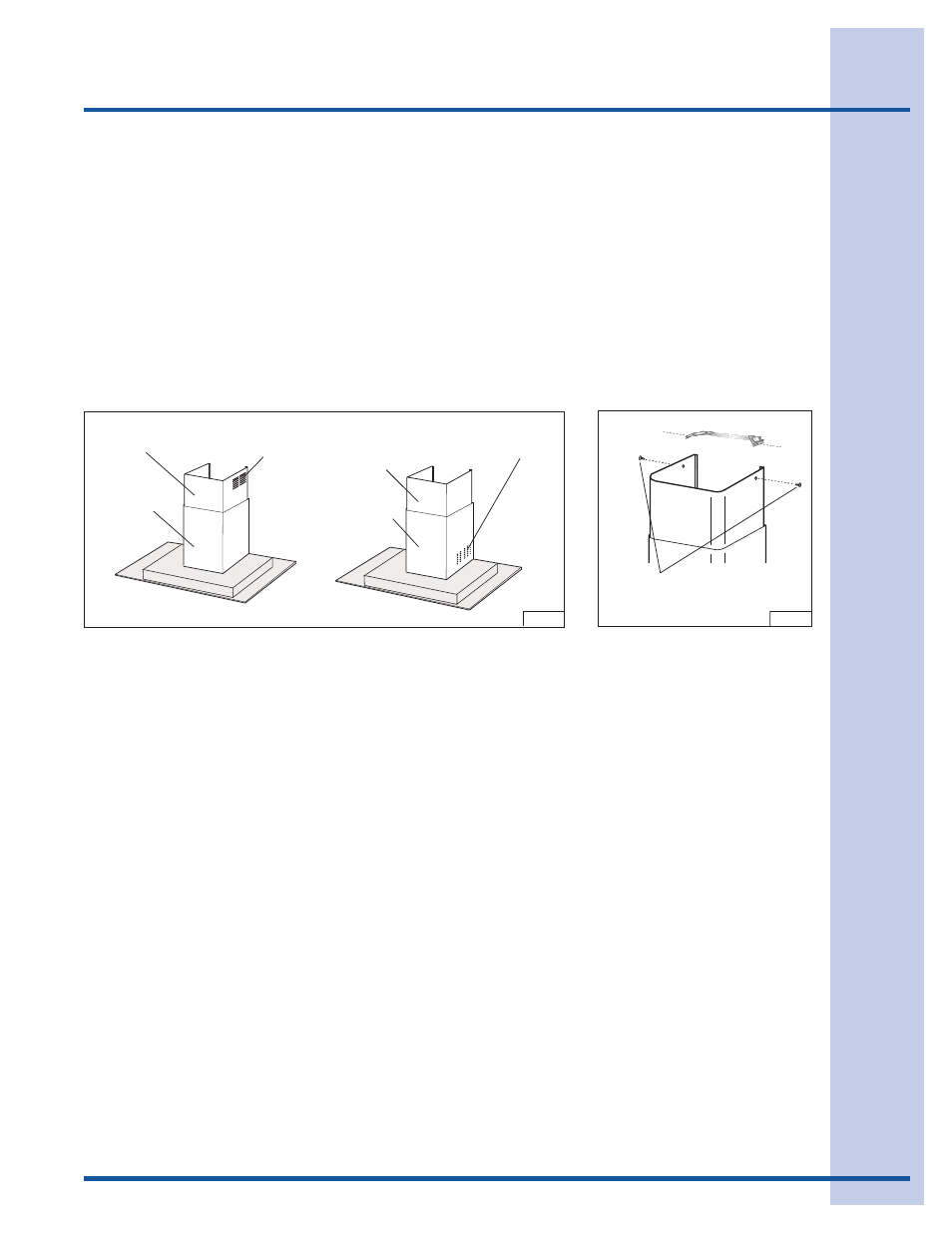

9. Carefully place the decorative flue on the hood. Fig. 13.
- On ducted installation in rooms with 8-foot ceilings, the air vents are concealed. Install the flue with the
air vents down.
- On non-ducted installations in rooms with 8-foot ceilings, the air vents are exposed. Install the flue
with the air vents up.
- On ducted and non-ducted installations in rooms with 9-foot ceilings, the vents are exposed. Install
the flue with air vents up.
ROOMS WITH 10-FOOT CEILINGS
Rooms with 10-foot ceilings require flue extension model EXWC75GS, available from your local dealer.
10. Discard the upper flue supplied with the product. Replace it with the flue extension EXWC75GS.
11. Raise the upper flue until its holes align with holes in the flue mounting bracket (located on ceiling). Fig.14.
12. Secure the flue with (2) 3.9x9.5mm mounting screws. Fig. 14.
3.9x9.5mm
MOUNTING SCREWS
FIG.14
UPPER
FLUE
LOWER
FLUE
UPPER FLUE VENTS
EXPOSED
FIG.13
UPPER FLUE VENTS
CONCEALED
UPPER
FLUE
LOWER
FLUE
Installation
