12 Installation

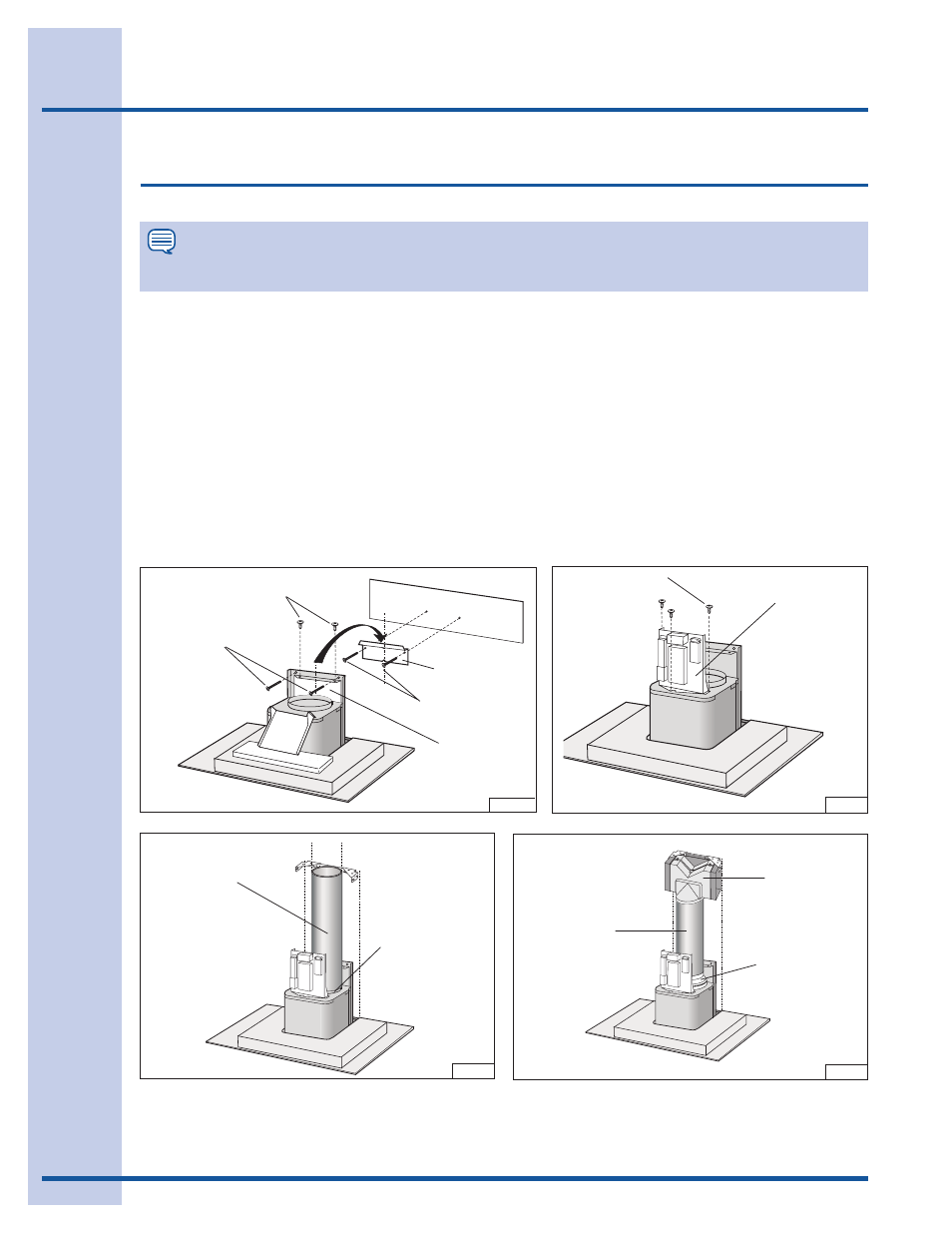

FIG. 9
MOUNTING SCREWS
(4.8x38mm)
MOUNTING SCREWS
(4.8x38mm)
RECTANGULAR
OPENING
WALL MOUNTING
BRACKET
MOUNTING SCREWS
(3.9x9.5mm)
FIG.10
PLATE OF THE
ELECTRICAL SYSTEM
MOUNTING SCREWS
(3.9x9.5mm)
Install the hood
1. Raise the hood into its mounting position.
2. Align the rectangular opening on the back of the hood with the wall-mounting bracket. Gently lower the hood
until it securely engages the bracket. Fig. 9.
3. Level the hood with (2) 3.9x9.5mm mounting screws and secure with (2) 4.8x38mm mounting screws. Use
drywall anchors provided if wall studs or framing are not available. Fig. 9.
4. Mount the electrical system plate attaching it with (3) 3.9x9.5mm mounting screws. Fig. 10.
5. On ducted hoods, attach 6" round metal duct between the hood’s blower collar and duct that leads to the
outside location (Fig. 11).
6. On non-ducted hoods, attach 5" round metal expandable duct between the 5"- 6" adapter on the hood and
the connector on the plenum (Fig. 12).
7. Tape all duct joints to make them secure and air tight.
8. Plug the power cord into the electric wall receptacle. Tuck excess cord behind the flue.
NOTE
At least two people will be required to mount the hood.
FIG.11 FIG.12
6” ROUND
METAL DUCT
BLOWER COLLAR
PLENUM
5” ROUND
METAL DUCT
5”-6”
ADAPTER
