11

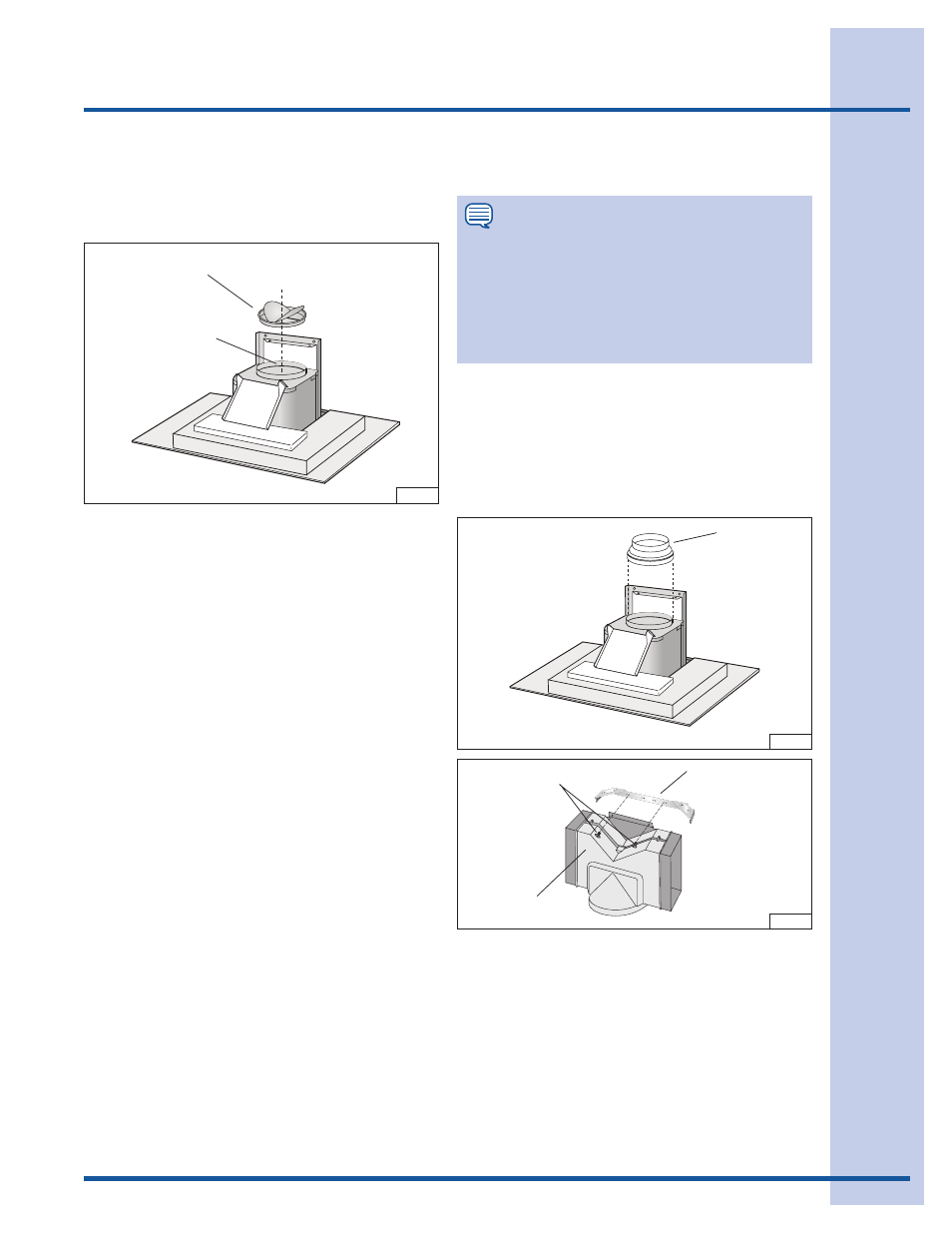

DUCTED CONFIGURATION
1. Install the discharge collar into the duct connector
of the range hood. Fig. 6.
FIG. 6
DISCHARGE
COLLAR
DUCT
CONNECTOR
Non - Ducted Recirculation Kit, Model DFKTWC75GS.
5” diameter duct.
1. Discard discharge collar/damper supplied with the
hood. Install the 5” to 6” adapter supplied with the
Non-Ducted Recirculation Kit (Fig. 7).
2. Secure the plenum to the flue mounting bracket
with (2) 3.9x6mm flat head screws (the screws are
supplied with the Non-Ducted Recirculation Kit
“DFKTWC75GS”). Fig. 8.
FIG. 7
3.9x6mm
FLAT HEAD
SCREWS
PLENUM
5”-6”
ADAPTER
NON- DUCTED CONFIGURATION
NOTE
The following materials must be purchased
separately for non-ducted recirculation
installations:
FIG. 8
FLUE MOUNTING
BRACKET
Installation
