Assembly Instructions
Step 1:
Step 2:
1. Find a clean, level place to begin the assembly
of your Soccer Table. The table will be
assembled upside down and then turned over
on its legs once the assembly completed. This
game table is heavy, and turning it over will
require at least two adults.
2. Remove all the parts from the box and verify
that you have all of the listed parts as shown
on the parts list page. Carefully cut or tear the
four corners of the box so that the bottom of
the box can be used as your work surface.
3. Slide the Rubber Bumpers (#13) and the Plas-
tic Washers (#14) onto the Player Rubbers
(#17 - #24).
4. Slide the Player Rods (#17 - #24) through the
Rod Bushings (#33) on the Side Aprons (#1) in
the order as shown in illustration.
NOTE: Make Sure that the Player Rods are
installed properly. The players should be
upside down with their backs facing their own
goal. The players for each team must be facing
the same direction.
7
14 14 13 13
35
Player Rods
(#17 - #24)
IMPORTANT
EACH TEAM SHOULD BE HEAD DOWN WITH THEIR BACKS FACING THEIR
OWN GOAL BOX.
Note: The Player Rods have a hole at the end where the handles will go.
21
22
24
1
1
23
17
33
33
18
20
19
the Hole

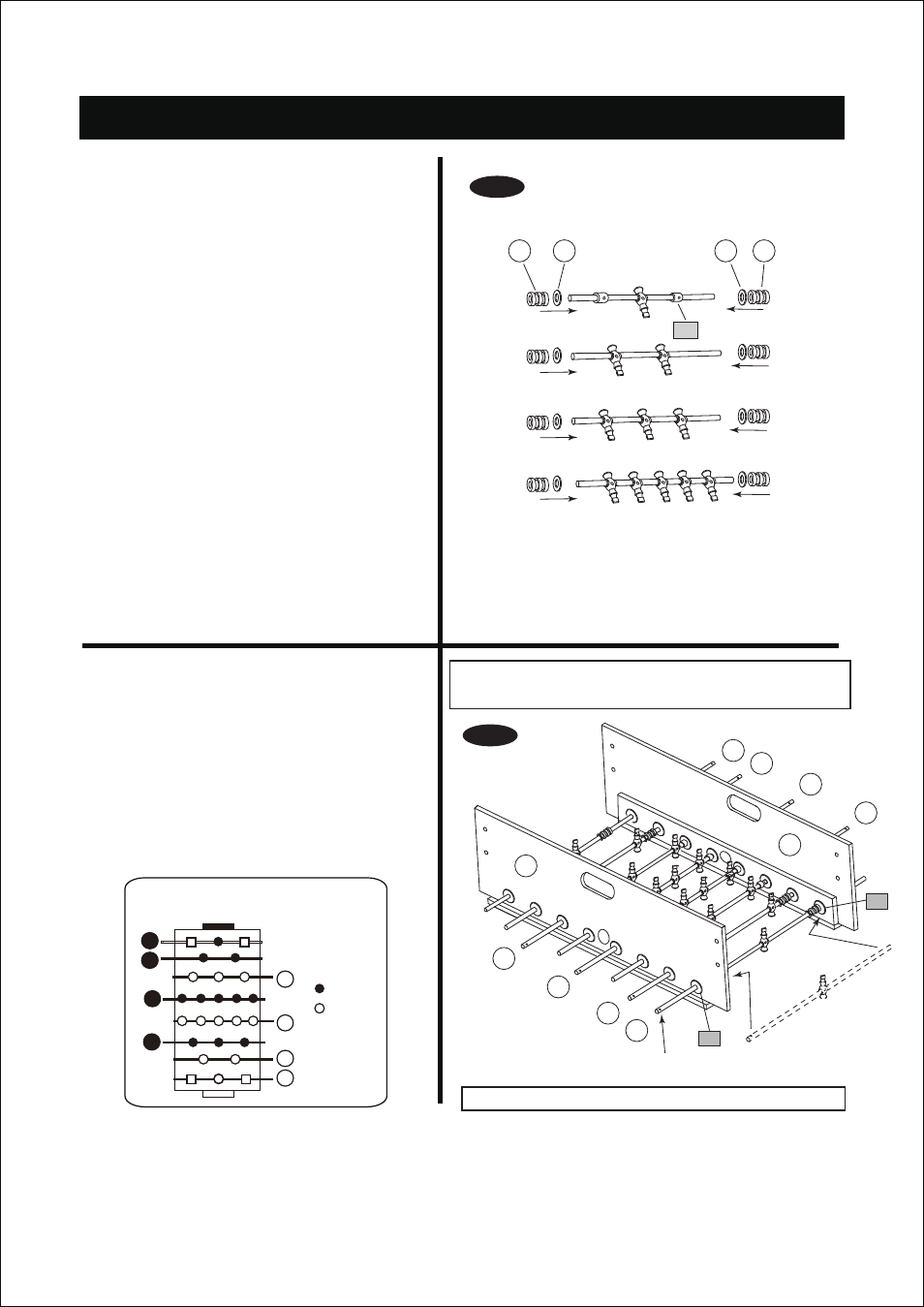

FIG.1
FIG.2
ORDER OF PLAYERS
(Overhead View - Table Upside Down)
= BLACK
= IVORY
19
23
17
21
24
20
22
18
