Medal Sports YSLSUIG3003/AC25800 - Manual (Page 12)

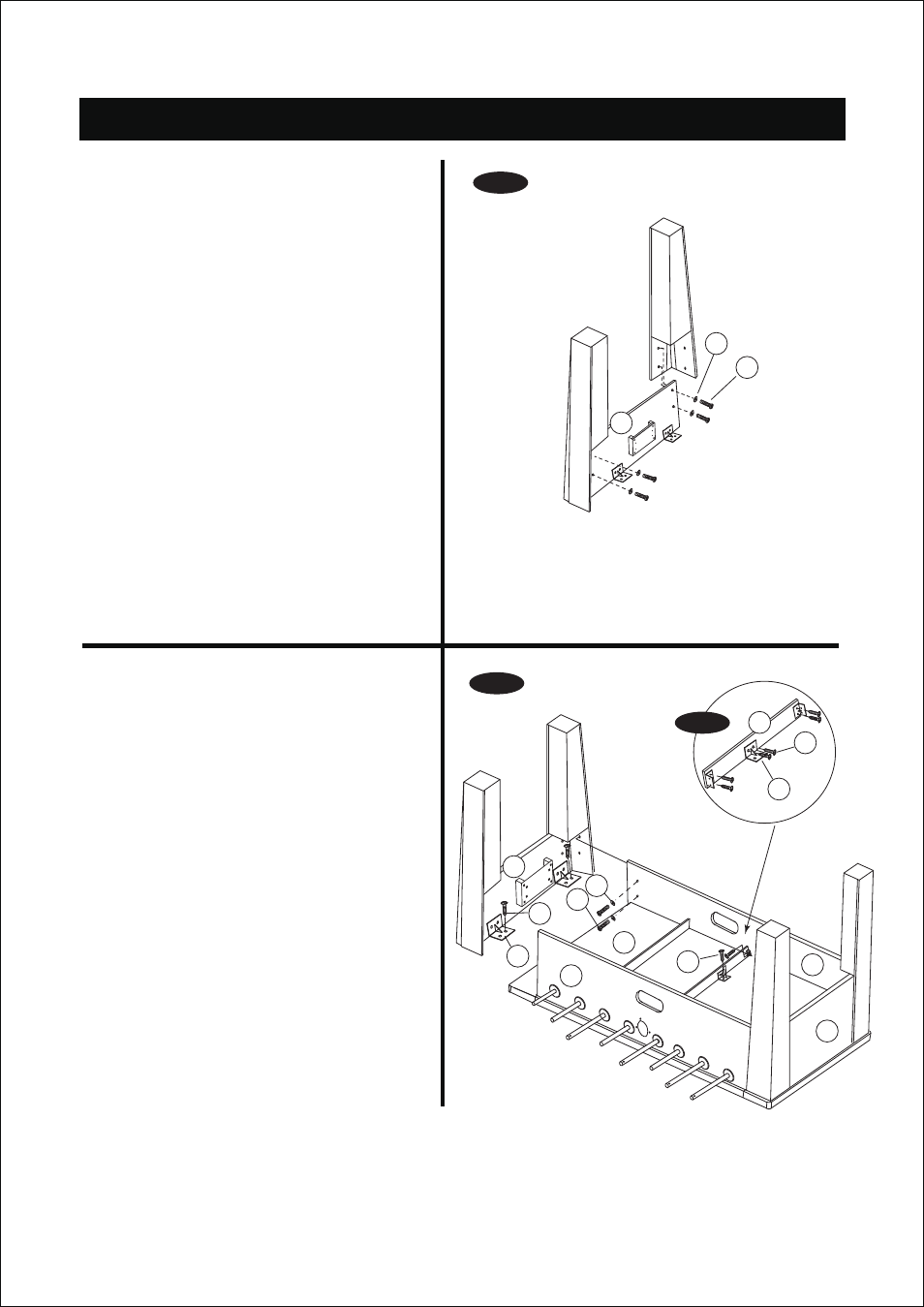

15. Attach the Legs(assembled) to End Apron(#2)
using two Bolts (#43) and two Washers(#42) per
Leg . DO NOT TIGHT THIS TIME.
Assembly Instructions
Step 9:
16. Attach the End Apron(with Leg) to the Side Aprons
(#1) using two Bolts (#43) and two Washers(#42)
per Leg .
17. Attach two Plastic Brackets (#26) to the End Top
Rails (#4) using two Screws (#39) per Bracket.
18. Attach three Plastic Brackets (#26) to each Support
Brace (#6) using two Screws (#39) per Bracket. See
FIG.9A.
19. Place the Support Braces (#6) on the Playfield (#3)
and then attach the Brackets (#26) to the Playfield
and Side Aprons (#1) using two Screws (#39) per
Bracket.
Step 10:
11
43
42
6
1
2
3
1
26
39
39
39
26
FIG.9
FIG.10
FIG.9A
2
2
43
42
