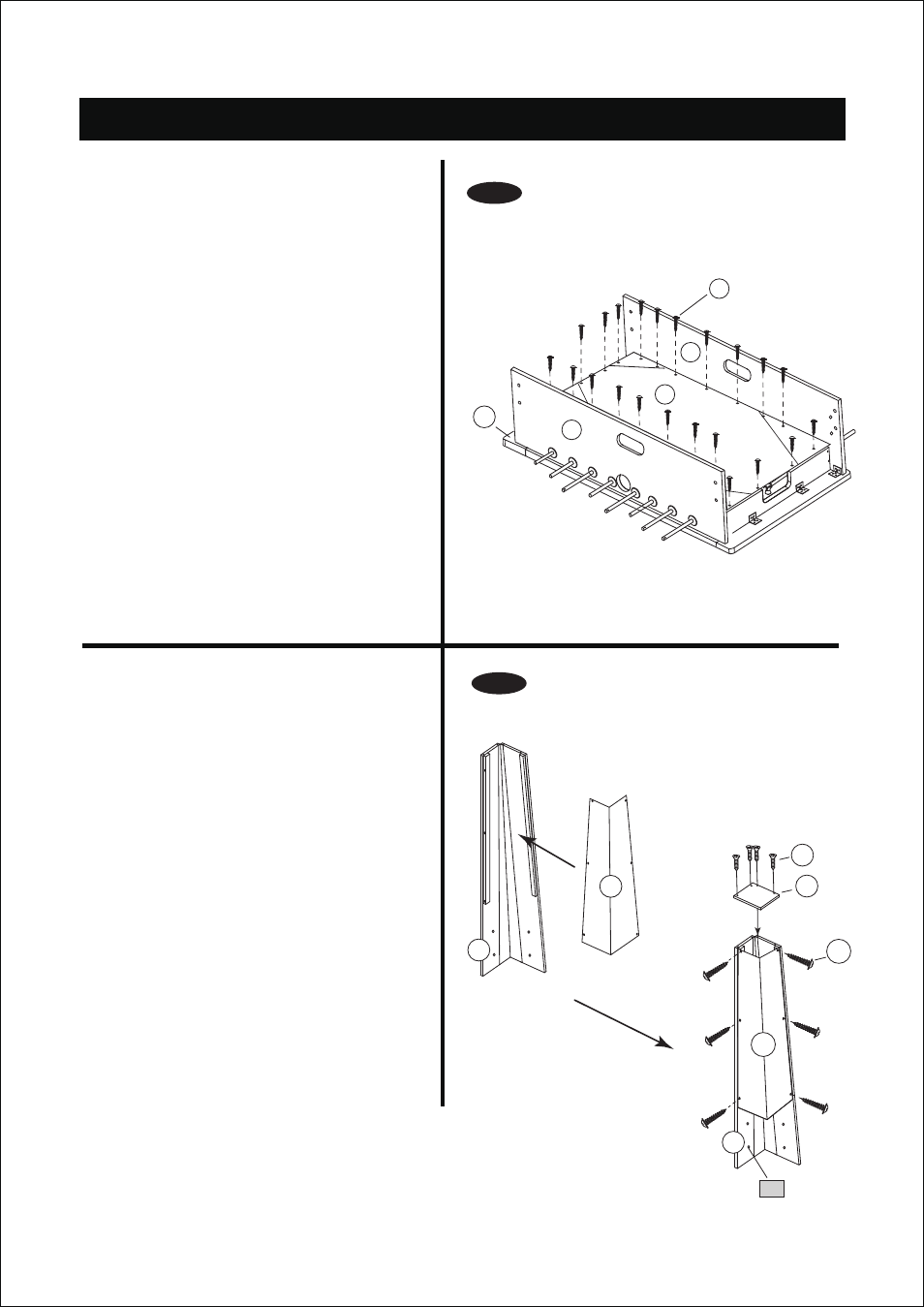

12. Attach the Playfield to the frame using twenty-

two Screws (#36).

Assembly Instructions

Step 7:

13. Attach the Leg Side Boards-B (#8) to the Leg

Side Boards-A (#7) using six Screws (#36) per

Leg.

14. Attach the Leg Bases (#9) to the bottom of legs

using four Screws (#41) per Leg Base.

Step 8:

10

7

8

1

5

4

1

36

3

FIG.7

FIG.8

41

9

7

46

36

8
