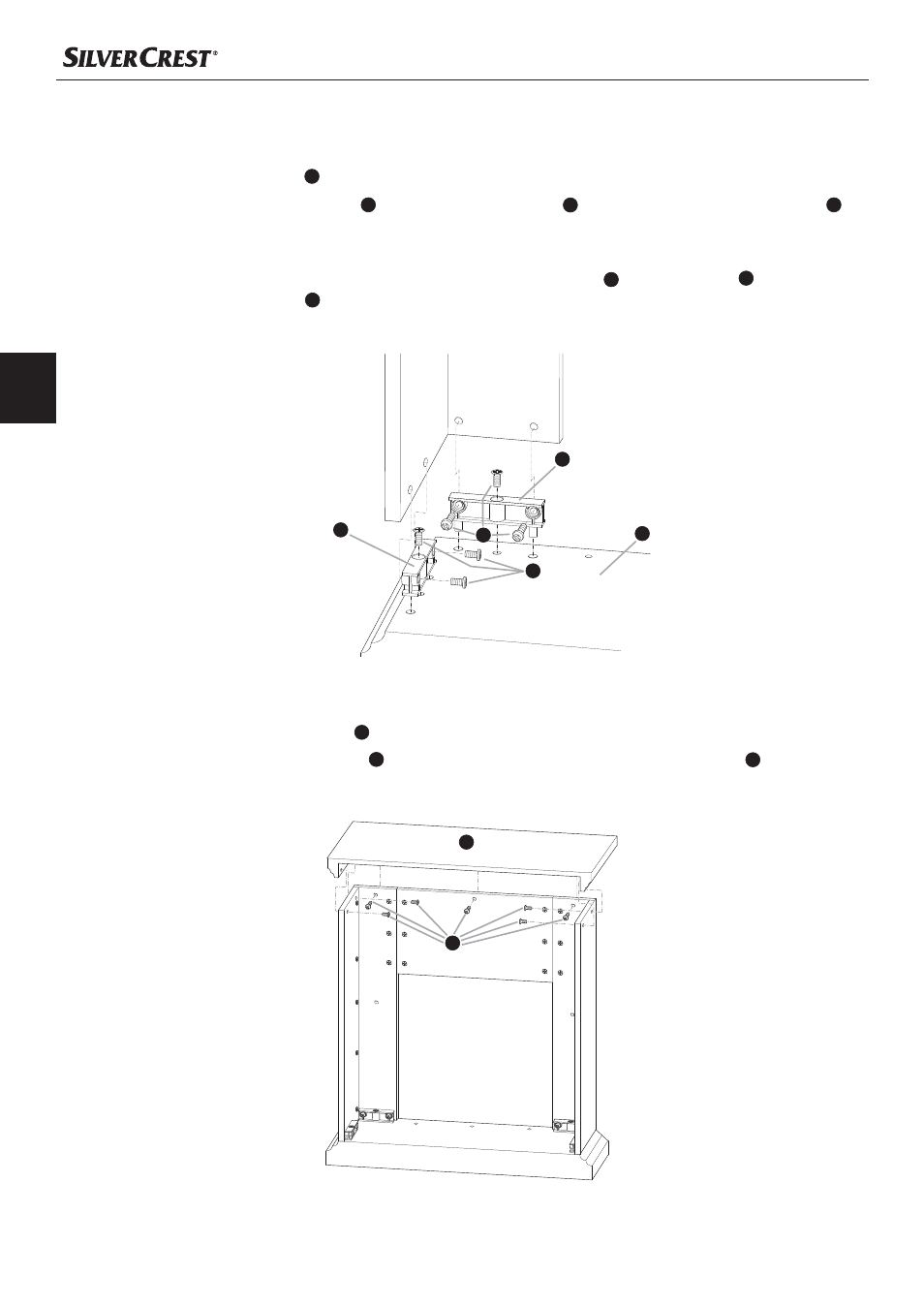

Step 5
Place the fl oor plate ♦ 7 on the fl oor.
Insert the 4 connection blocks ♦ G in the holes of the fl oor plate 7 and secure them with 4 screws of type A .
Now take the previously assembled unit and carefully place it on the fl oor plate as shown in the following ♦
diagram.
Then screw together the assembled unit with the connection blocks ♦ G on the fl oor plate 7 . For this, use
8 screws of the type A (2 screws per connection block).
Step 6
Take the top covering panel ♦ 3 and place it on the preassembled unit.
Secure the top covering panel ♦ 3 from the inner side of the unit with 7 screws of the type A .
