Assembly
SEKU 2000 A1
GB
MT
Assembly

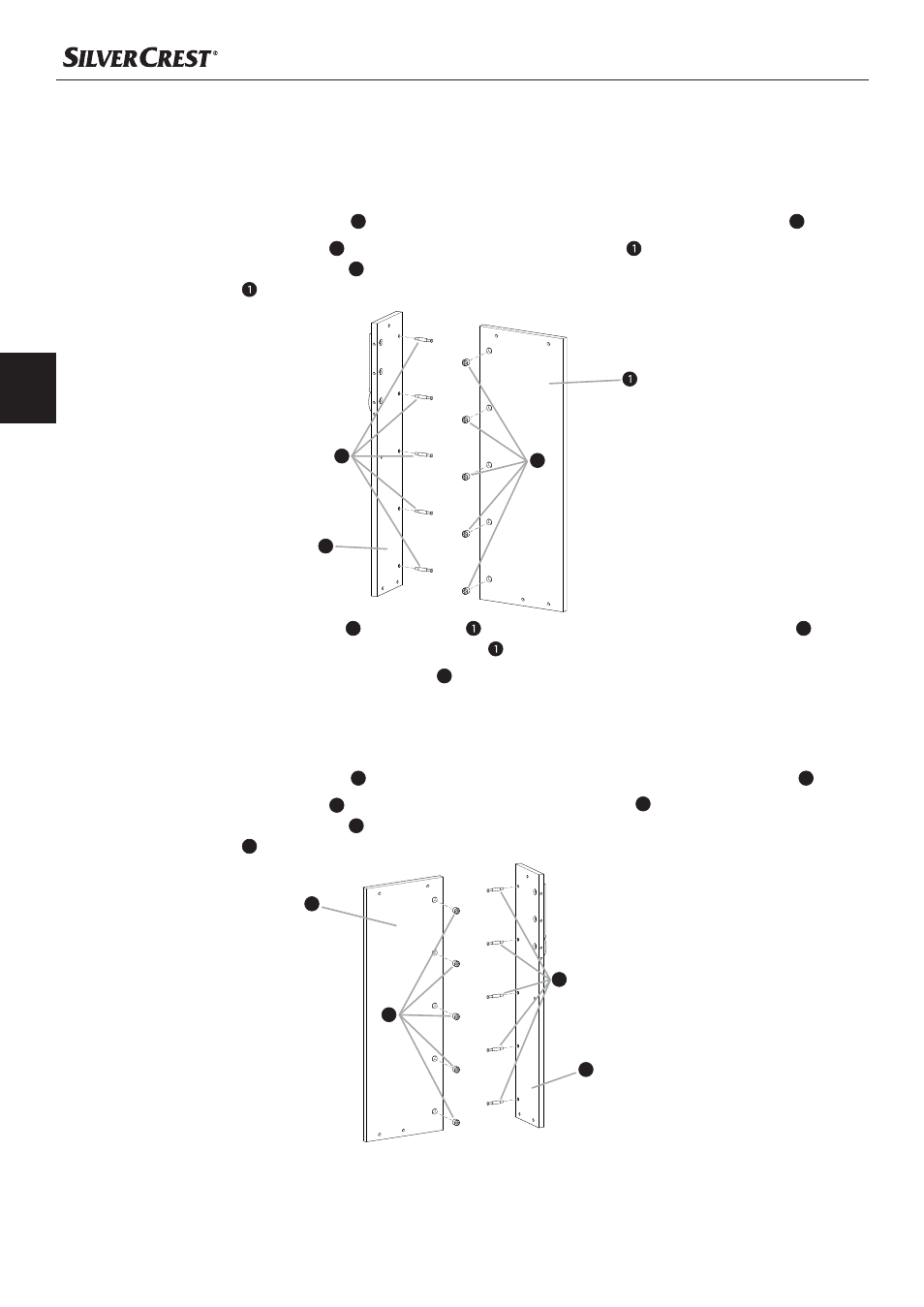

Step 1
Screw 5 single locking pins ♦ D with a screwdriver into the prepared holes on the left front panel 2 .
Insert 5 adapter sleeves ♦ E into the 5 large holes of the left side panel . Thereby, with the screwdriver
line up the adaptor sleeves E so that the arrow on the adaptor sleeves points to the outer edge of the
side panel .
Then, bring the front panel ♦ 2 and side panel together at right angles, so that the locking pins D
enter the holes on the left edge of the side panel .
When done, screw all 5 adapter sleeves ♦ E to the right with the screwdriver until the locking pins are
clamped into the adapter sleeves and the panels are seated fi rmly together and at right angles.
Step 2
Screw 5 single locking pins ♦ D with a screwdriver into the prepared holes on the right front panel 4 .
Insert 5 adapter sleeves ♦ E into the 5 large holes of the right side panel 8 . Thereby, with the screwdriver
line up the adaptor sleeves E so that the arrow on the adaptor sleeves points to the outer edge of the
side panel 8 .
2
D
E
8
4
D
E
