24552-0-0608 Page 16

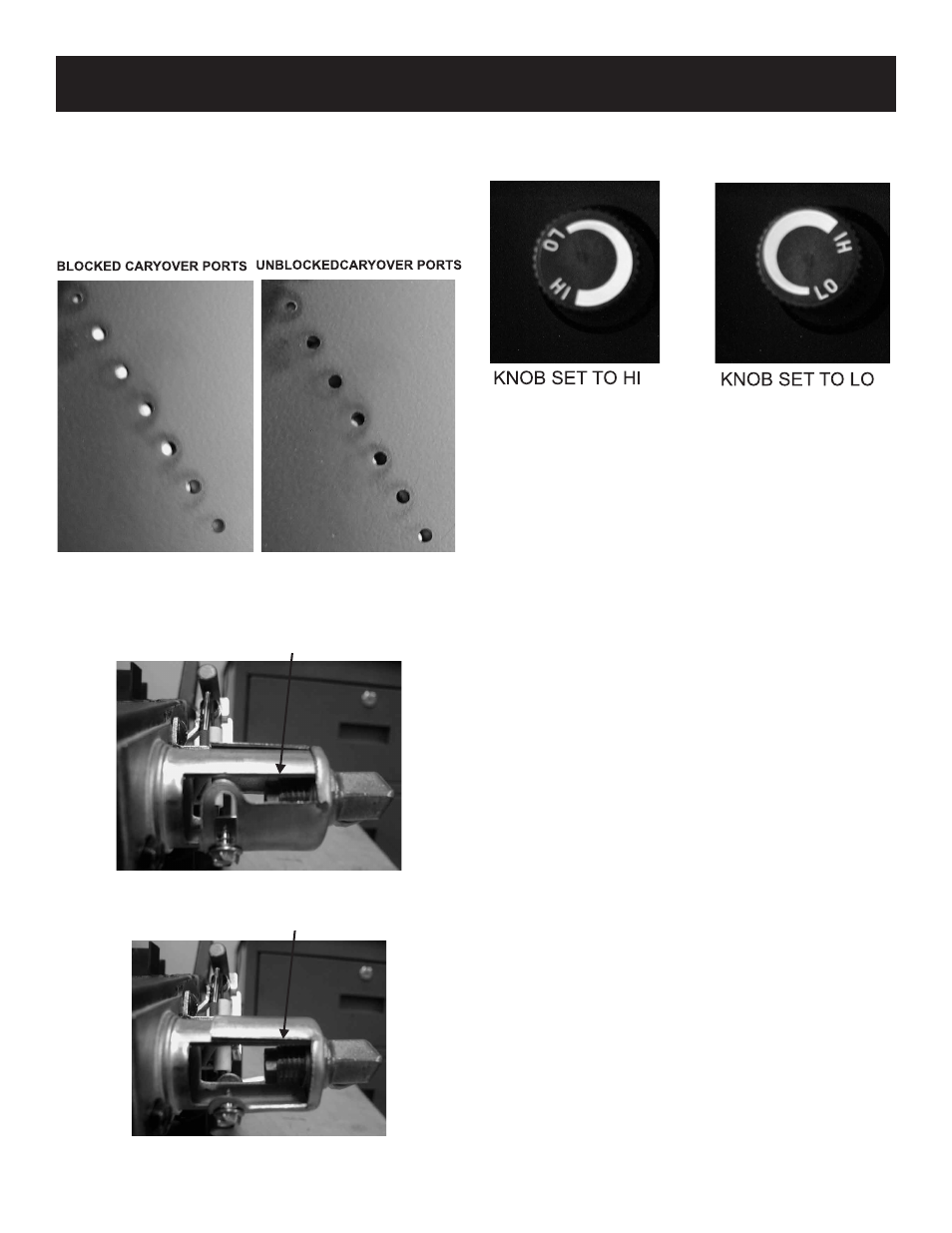

Check the following items during installation prior to
lighting the multisided burner:
• Check all carryover ports for blockage from the ceramic
media
o If there is blockage, use a small pointed tool to move
the ceramic media away from the carryover port.
• Check air shutter for correct setting.
o NAT gas
o LP gas
NOTE: Orifice shield removed for photo clarity.
• For best results when lighting the burner, have your
adjustable flame knob to the HI position, then adjust to
a lower setting after the burner has ignited.
• When first lighting the pilot on the burner, it takes ap-
proximately 60 to 75 seconds to fully heat and energize
the thermopile. Once the thermopile is energized, turn
on the gas valve and light the burner.
AIR SHUTTER 1/4” (6.4mm) OPEN
AIR SHUTTER FULL OPEN
BURNER INSTRUCTIONS
