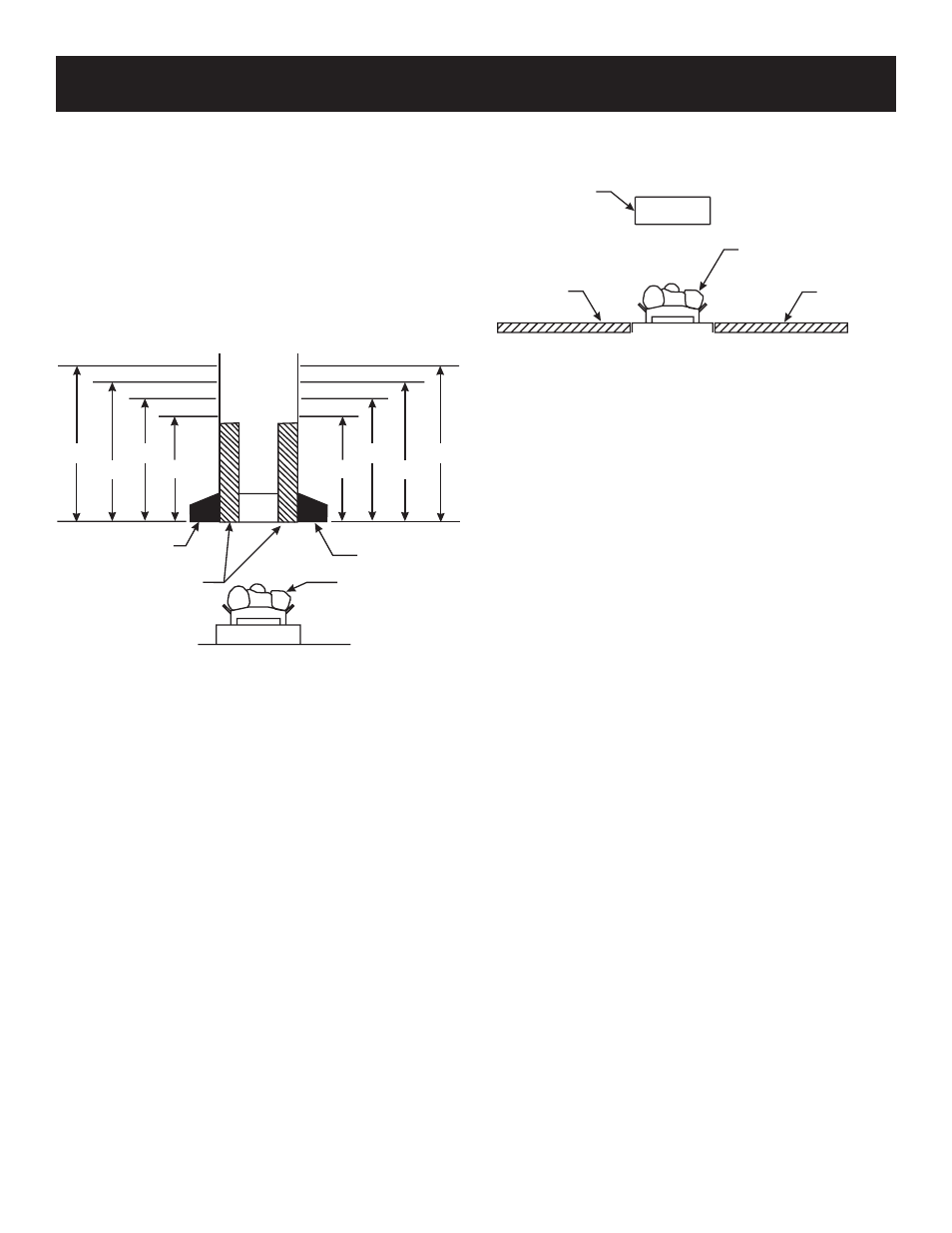

Floor Clearance (Figure 6)
If installing heater at floor level, the minimum distance to com-
bustibles is “0” inches.
Figure 6
Mantel Clearances with Hood (Figure 5)
You must have non-combustible materials above the fireplace
opening. Non-combustible material must extend at least 8" above
fireplace opening. With sheet metal, you must have non-combustible
material behind it.
Heat resistant materials such as slate and marble must be at least
1/2" thick. Sheet metal should not be installed onto combustible
material.
Example: A mantel may project from the wall a maximum of 2"
at a minimum of 13-1/2" above the opening, and a maximum of
6" at a minimum of 15" above the opening.
Figure 5
If your installation does not meet the above minimum clearances,
you must proceed to one of the following steps:
• Operate the heater with the flue damper open. See page 12
for Installing as a Vented Appliance.
• Raise the mantel to the proper height.
• Remove the mantel.
