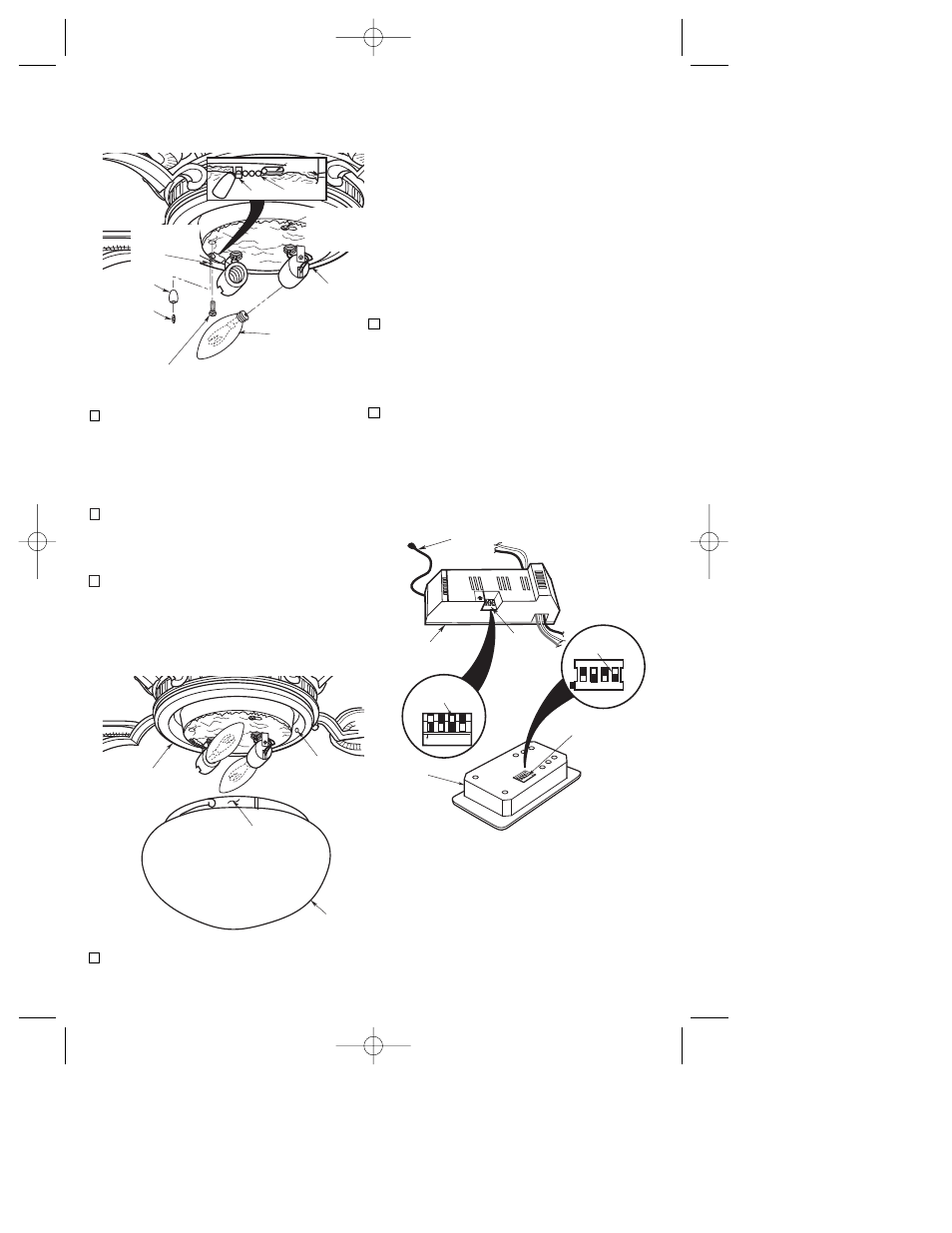

18. Screw in two 60-watt (maximum)

candelabra bulbs in the light fitter
sockets (Figure 12). Bulbs not
supplied.

19. Place the lower glass into the light

fitter, aligning the three flat areas on
the lower glass flange with the three
tabs on the light fitter (Figure 13).
Then turn the lower glass clockwise
until the glass stops turning.

20. Your ceiling fan is now installed and

wired to be controlled by your SW101
Fan/Light Wall Control.

FLAT AREAS (3)

LOWER
GLASS

TABS (3)

LIGHT FITTER

Figure 13

Setting Operating

Frequency of Wall

Control and Receiver

(Figure 14)

Your wall control and receiver have code
switches which must be set in one of 16
possible code combinations. The four
levers (numbered 1, 2, 3, and 4) on the
switches are factory-set in the ON (up)
position. Change the switch settings as
follows:

1. Slide the four switch levers in the wall

control to your choice of ON (up) or
down positions. Use a ball-point pen or
small screwdriver and slide the levers
firmly up or down.

2. In the receiver, slide the four switch

levers to the same positions as set in
the wall control. Make sure the levers
on both switches are in the same
positions, otherwise the fan will not
operate.

Figure 14

WALL CONTROL
LEVERS

RECEIVER
SWITCH LEVERS

CODE
SWITCH

ANTENNA WIRE

1 2 3 4

RECEIVER

CODE
SWITCH

WALL
CONTROL

LIGHT
FITTER

TIGHTEN
THREE PAN
HEAD
SCREWS

60-WATT
(MAXIMUM)
CANDELABRA
BULBS (2)

INSTALL PAN HEAD SCREW
WITH LOCKWASHER

PENDANT

COUPLING

REVERSING
SWITCH PULL
CHAIN

CLIP

CHAIN

HOLE

Figure 12

17. Slip the reversing switch chain

through the pendant (supplied), then
secure the pendant by snapping the
coupling onto the end of the chain
(Figure 12). Hook the chain in the clip
as shown in Figure 12 insert.

NOTE: Make sure that the lockwashers
are positioned between the screw head
and the light fitter.
