6
NOTE: Make all wiring connections
using wire connectors (supplied). Make
sure that all connections are tight,
including ground, and that no bare wire
is visible at the wire connectors, except
for the ground wire.

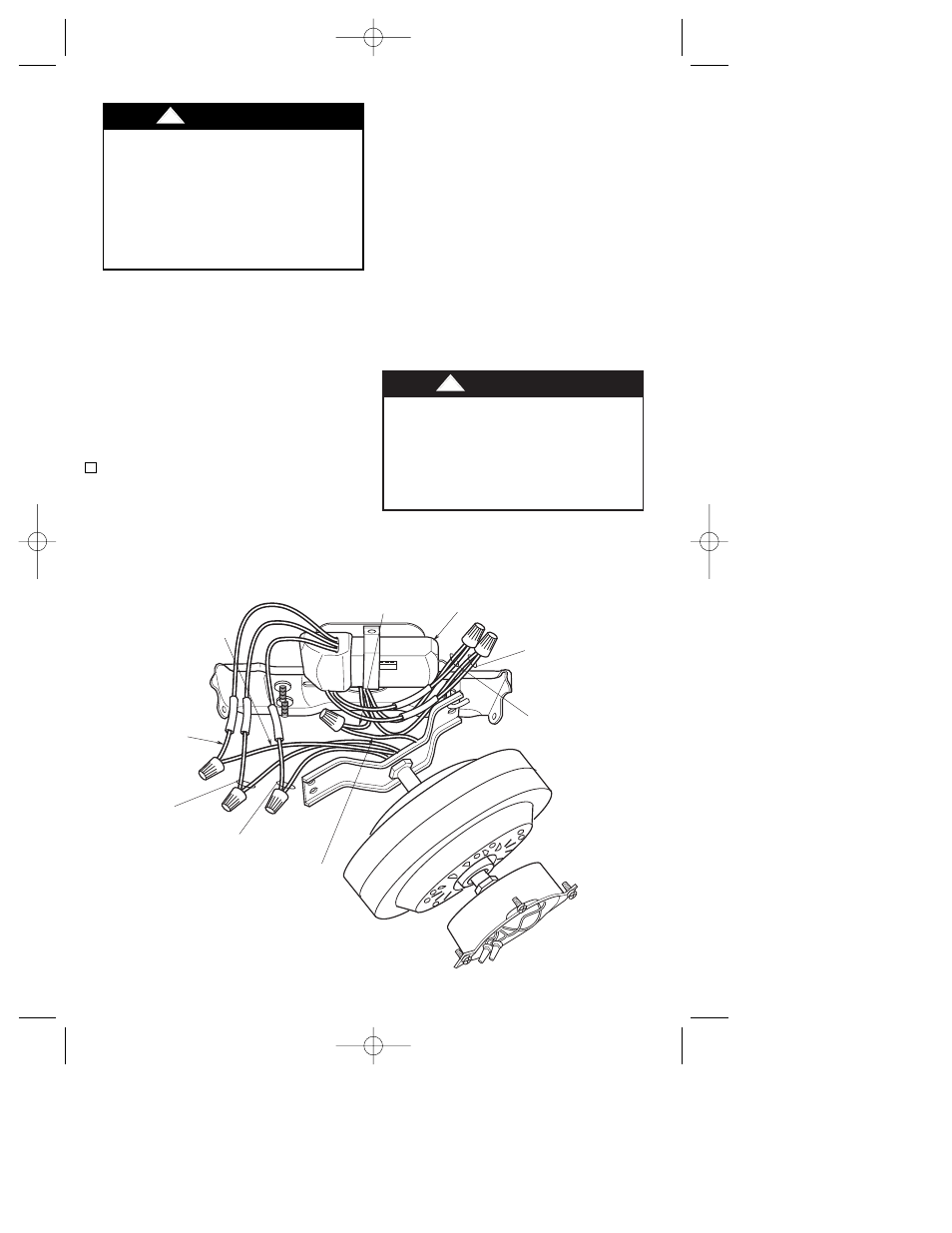

5. Refer to Figures 5 and 6 and connect
the receiver wires to the supply wires
and the fan motor wires as follows:
a. Securely connect the green grounding
wire from the motor bracket to the
supply grounding conductor (this may
be a bare wire or a wire with green
insulation).
Check to see that all connections are
tight, including ground, and that no
bare wire is visible at the wire
connectors, except for the ground
wire. Do not operate fan until blades
are in place. Noise and fan damage
could result.
! WARNING
b. Securely connect the supply white
(neutral) wire to the receiver white
(AC IN N) wire.
c. Securely connect the supply black wire
(hot) wire to the receiver black (AC IN
L) wire.
d. Securely connect the fan motor white
wire to the receiver white (TO MOTOR
N) wire.
e. Securely connect the fan motor black
wire to the receiver red (TO MOTOR L)
wire.
f. Securely connect the fan motor blue
wire to the receiver blue (FOR
LIGHT) wire.
SUPPLY WHITE
(NEUTRAL) AND
RECEIVER WHITE
WIRES
SUPPLY BLACK
(HOT) AND
RECEIVER BLACK
WIRES
GREEN WIRE
FROM MOTOR
BRACKET
RECEIVER AND
MOTOR BLUE
WIRES
RECEIVER AND
MOTOR WHITE
WIRES
RECEIVER
RED WIRE
FAN BLACK
WIRE
GROUND WIRE
TO MOTOR L TO MOTOR N
FOR LIGHT
AC IN L
AC IN N
RECEIVER
Figure 5
CAUTION: To reduce the risk of
electrical shock, disconnect the
electrical supply circuit before
installing the fan, light kit or receiver.
Turning off wall switch is not sufficient.
To avoid possible electrical shock, be
sure electricity is turned off at the main
fuse or circuit breaker box before wiring.
All wiring must be in accordance with
National and Local codes and the ceiling
fan must be properly grounded as a
precaution against possible electrical
shock.
! WARNING
