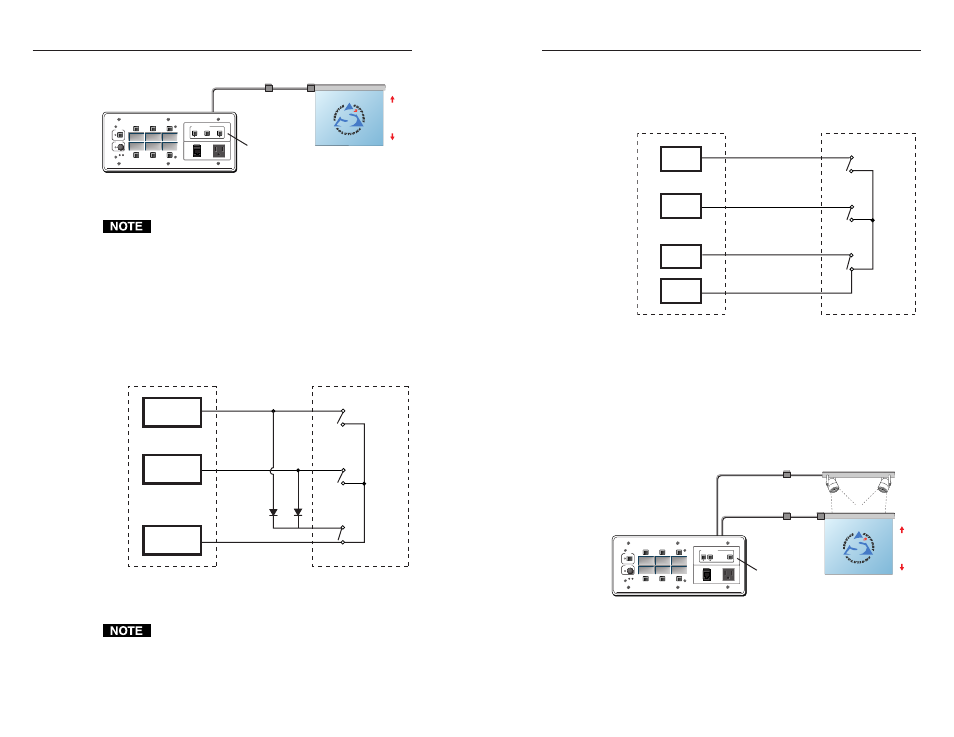

MLC relay wiring for an RCM-SC
MLC 206 w/ AAP
RCM-SC
Extron
MediaLink Controller MLC 206
DISPLAY
POWER
VOLUME
MAX/
MIN
VCR DVD Laptop
Low Voltage
Controller
Stop
UNSWITCHED
100-240V - 5AMAX
SCREEN POSITION DOWN UP STOP
A typical RCM-SC application
The diagrams included here are examples only. Your
equipment may have different wiring requirements.
Refer to the specific wiring instructions provided by the
manufacturer of the screen controller that you are using.
For DaLite and Draper screen controllers, a momentary
closure between either the up and common terminals or
the down and common terminals causes the screen to
move up or move down. A momentary closure between
all three terminals (up, down, and common) stops the
screen in its current position. Use the included diodes
(1N4001 or equivalent) for reverse bias protection.
1B
2A
1A
2B
3A
3B
Up
MLC Relay Ports Low Voltage Controller
Down
Stop
Black
Red
White (Da Lite)
Blue (Draper)
MLC relay wiring block diagram for an RCM-SC and a
Da Lite single motor LVC-4 (part #40973) screen controller or a
Draper single motor LVCIII screen controller (part #6300858)
Use 1N4001 or equivalent diodes (100mA maximum
current through the diode, 50V maximum reverse bias)
for the Da Lite and Draper installations shown above.
For Stewart Filmscreen screen controllers, a momentary
closure between the up and common terminals, the down
and common terminals, or the stop and common terminals
will cause the screen to go up, go down, or stop.
1B
2A
1A
2B
3A
3B
Up
MLC Relay Ports Low Voltage Controller
Down
Stop
Up
Down
Stop
Common
MLC relay wiring block diagram for an RCM-SC and a
Stewart SFC Control (part #6300891) screen controller
MLC relay wiring for an RCM-SCLT
For controllers, a momentary closure between either the
up and common terminals or the down and common
terminals causes the screen to move up or move down. A
latching contact toggles the AC power/lighting (or other)
controller on and off.
RCM-SC LT
MLC 206 w/ AAP
Extron MediaLink Controller MLC 206
DISPLAY
POWER
VOLUME
MAX/
MIN
VCR DVD Laptop
Low Voltage
Controller
AC Power
Controller
UNSWITCHED
100-240V - 5AMAX
ROOM CONTROL SCREEN POSITION LIGHTING
ON / OFF
A typical RCM-SCLT application
