Tension Rod (Horizontal) x 4
Tension Rod (Vertical) x 2
Attach the Screen Material to the Frame

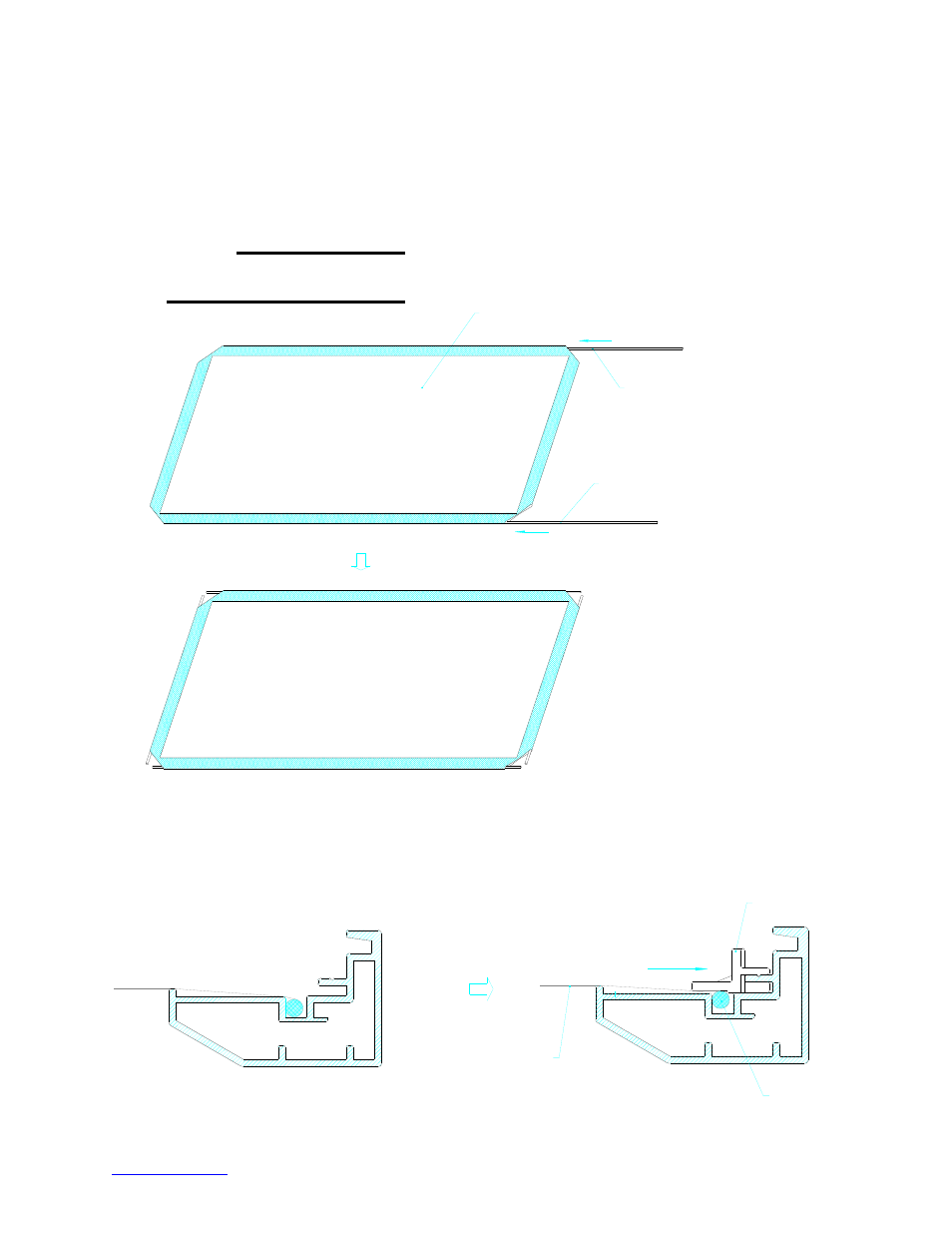

1. Lay out the material and Tension Rods on a clean & dry surface. Insert the Tension Rods through the
sleeves according to their corresponding lengths on each edge of the screen (see fig. 4).
2. Place the screen material on the back of the frame and insert the tension rods into the grooves
running of each corner of the frame. Insert the Fix Plates to the back of the frame to secure the rods
into place creating tension for a flat surface (see fig. 5 & 6).
Push
( fig.5)
Viewing surface
(Front of screen)
Steel rod
fix plate
Steel rod
Push
( fig.4)
Steel rod
Screen
Push
