3
Rev.051811‐AS
www.elitescreens.com [email protected]

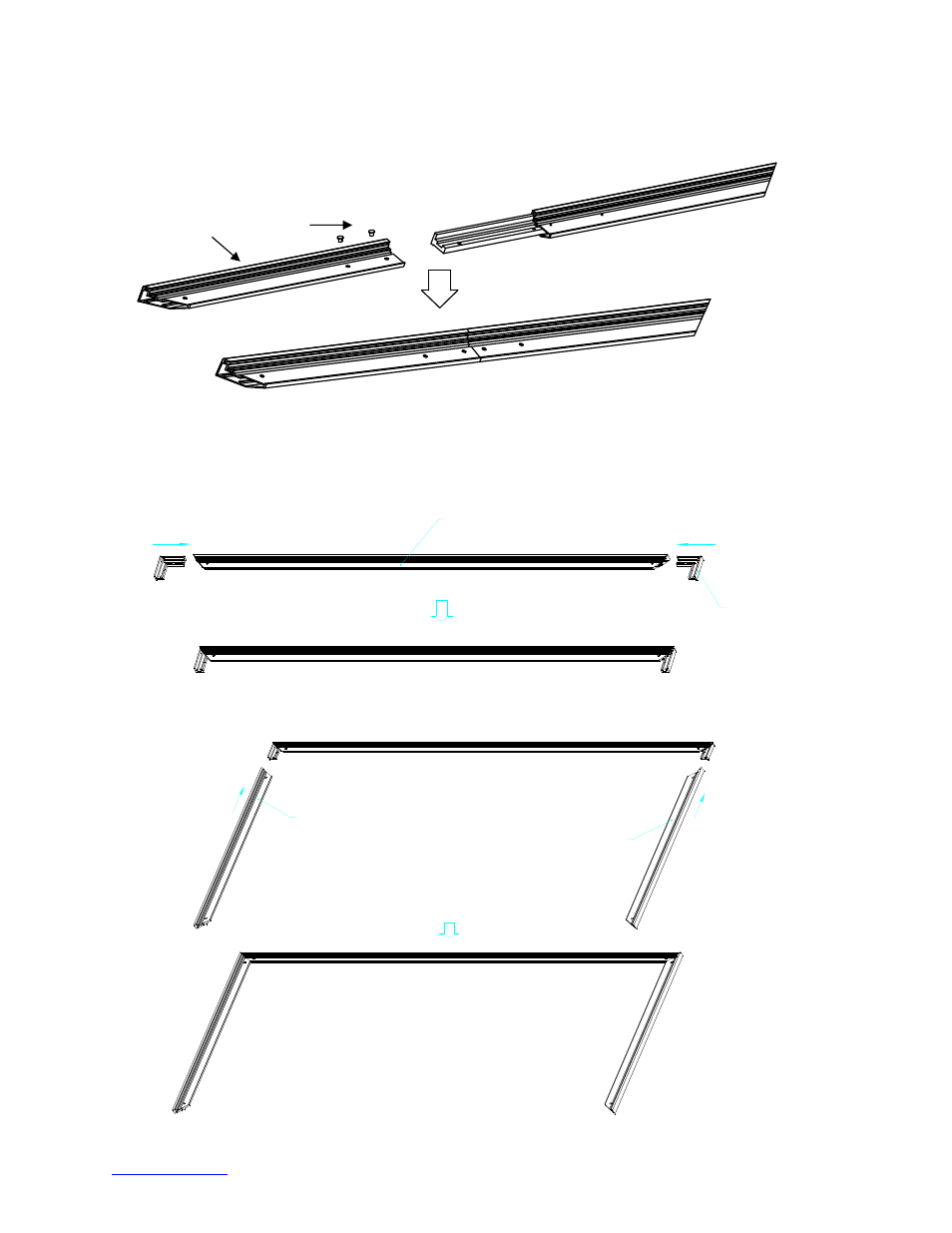

2. Insert the other horizontal frame piece to the Center Joint connector and secure with screws.
Note: To make sure the frame pieces line up correctly, do not tighten the screws until assembly is complete.
3. Insert both Elbow Joint connectors into the long horizontal frame (see fig. 1).
Push Push
Joint
Long frame
( fig.1)
P u s h
P u s h
S h o r t f r a m e
S h o r t f r a m e
1/2Long frame
Push
