ENVISION SERIES INSTALLATION MANUAL

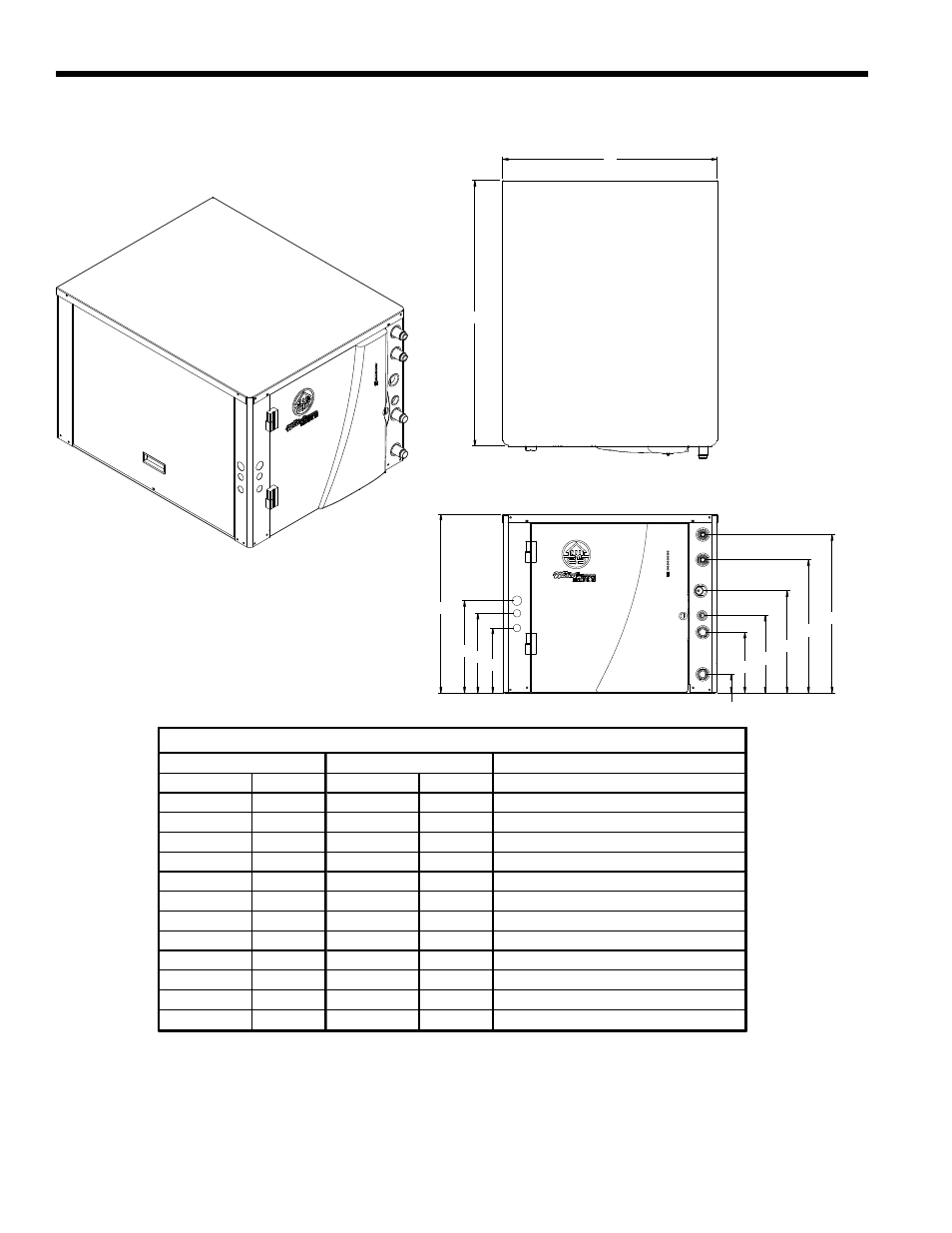

Physical Dimensions
DIMENSION VALUE DIMENSION VALUE
DESCRIPTION
A
19.25
A
21.25 UNIT HEIGHT
B
22.50
B
25.50 UNIT WIDTH
C
26.50
C
31.50 UNIT DEPTH
D
1.93
D
2.21
WATER IN
E
6.93
E
7.21
WATER OUT
F
8.44
F
9.21
BRASS SERVICE VALVE (LIQUID)
G
11.55
G
12.14 BRASS SERVICE VALVE (GAS)
H
13.43
H
15.83 DESUPERHEATER IN
J
16.43
J
18.83 DESUPERHEATER OUT
K
8.55
K
7.71
LOW VOLTAGE
L
10.30
L
9.46
EXTERNAL PUMP
M
11.80
M
10.96 LINE VOLTAGE
ENVISION - NZ SPLIT DIMENSIONAL DATA
NZ 022-030
NZ 036-072
A
C
B
D
E
F
G
H
J
K
L
M
