STEP 4. Mounting the applications platform

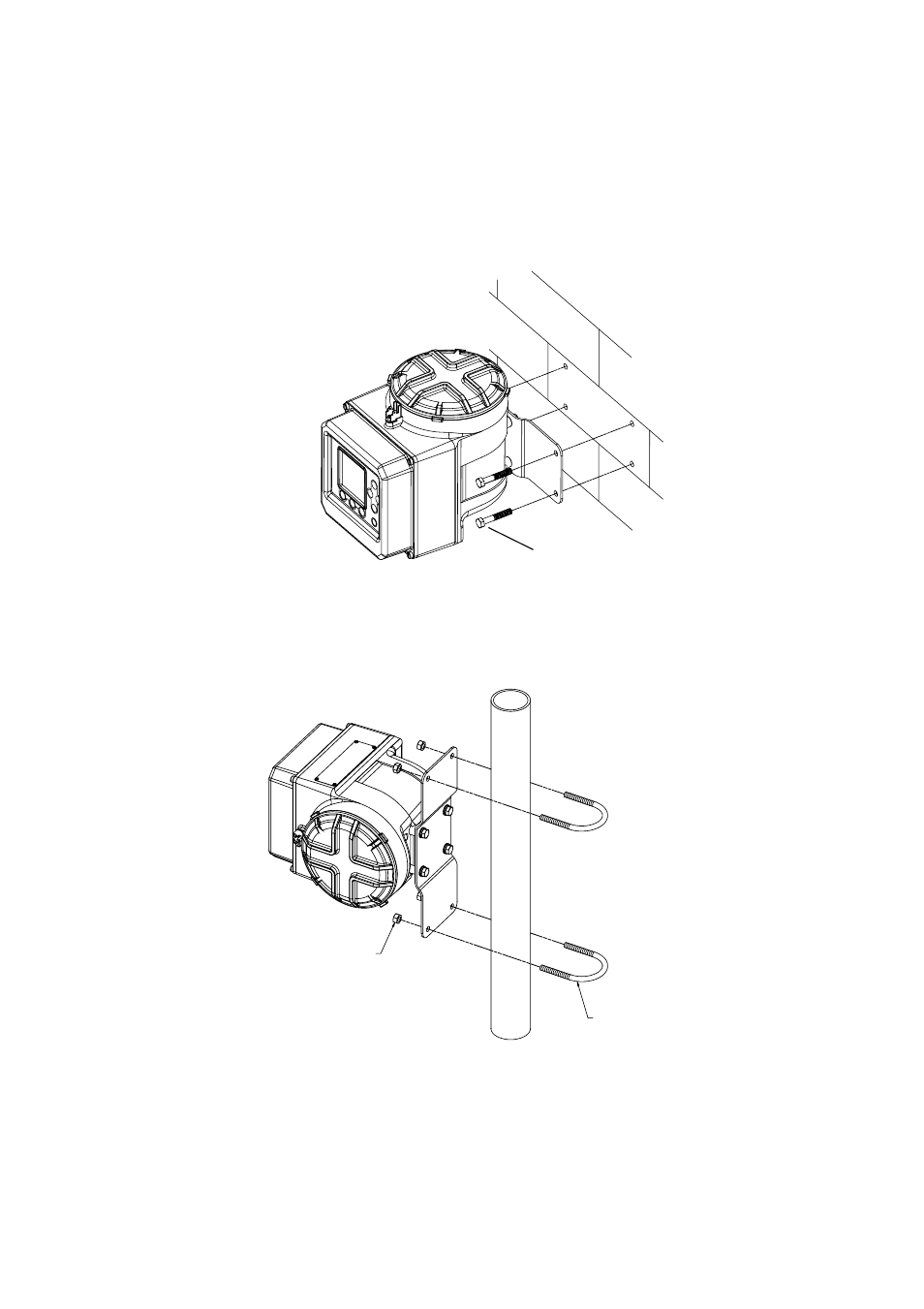

For flat-surface mounting, see Figure 8.
For pole mounting, see Figure 9.
Figure 8. Mounting to a flat surface
Figure 9. Mounting to a pole
4 x 5/16-inch or M8 bolt
(user-supplied)
• Mount all four bolts to the same surface.
• If mounting surface is not flat, use
washers to shim the bracket.
• Do not secure bolts to separate beams,
girders, wall studs, etc., which can move
independently.
4 x 5/16 inch nut
(user-supplied)
2 x 5/16-inch U bolt for
2-inch pipe (user-supplied)
