5

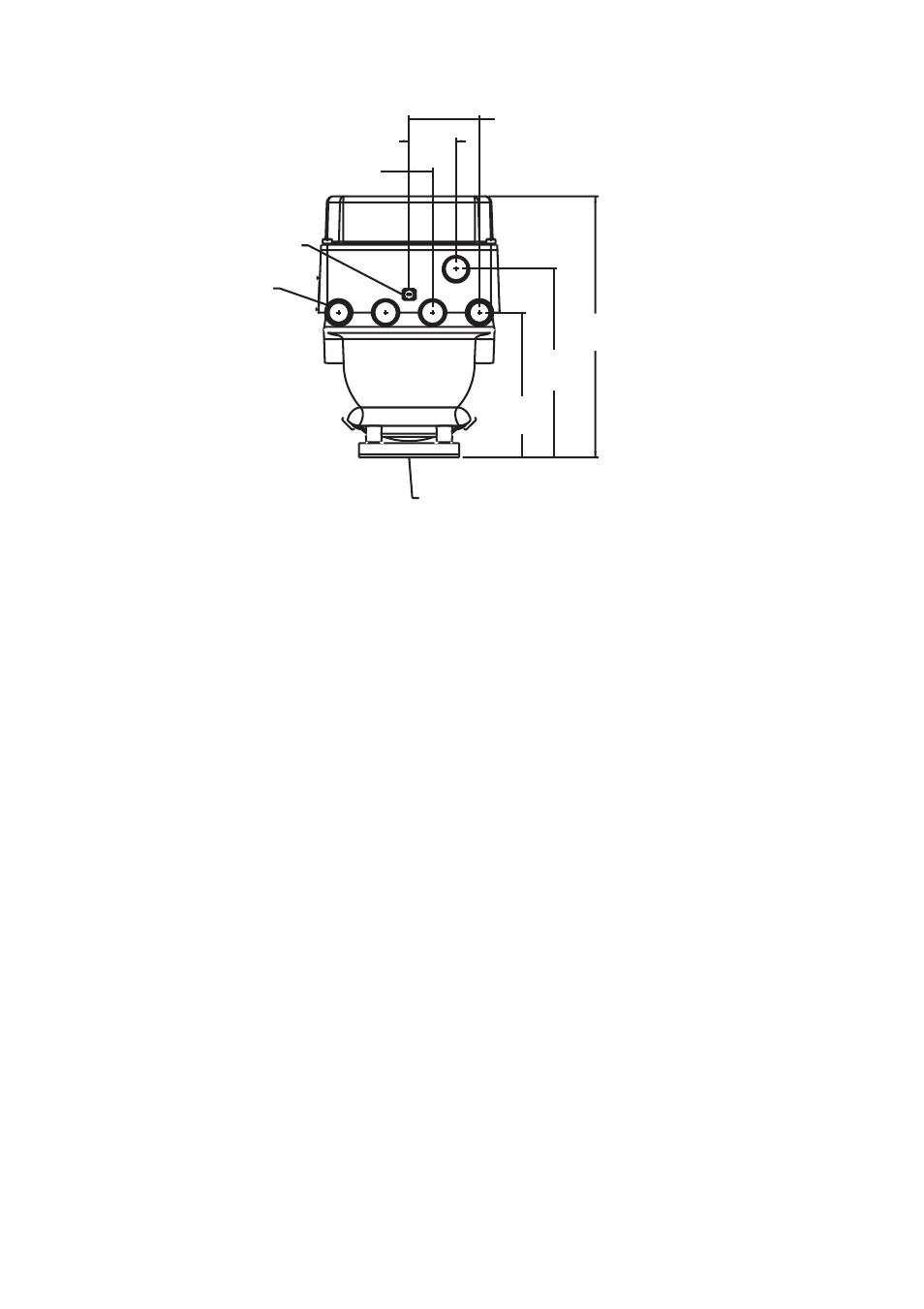

Figure 4. Dimensions – conduit openings view
Cable lengths
Maximum cable length from the sensor to the Model 3700 transmitter
depends on the installation type and cable type:
• 4-wire remote transmitter: see Figure 5, then refer to Table 1 for
maximum length of the 4-wire cable.
• Remote core processor with remote transmitter: see Figure 6, then
refer to Table 1 for maximum length of the 4-wire cable and the
9-wire cable.
If you are installing the Model 3350 applications peripheral in
combination with a transmitter, the maximum cable length from the
transmitter’s frequency output to the Model 3350’s frequency input is
500 feet (150 meters).
2 x 2 13/17
(71) inches
(mm)
1 7/8
(48)
2 x 15/16
(24)
5 x 3/4–14 NPT
or
5 x M20 x 1.5 – 6H
Mounting surface
5 3/4
(147)
7 1/2
(191)
10 3/8
(265)
Case ground
