6

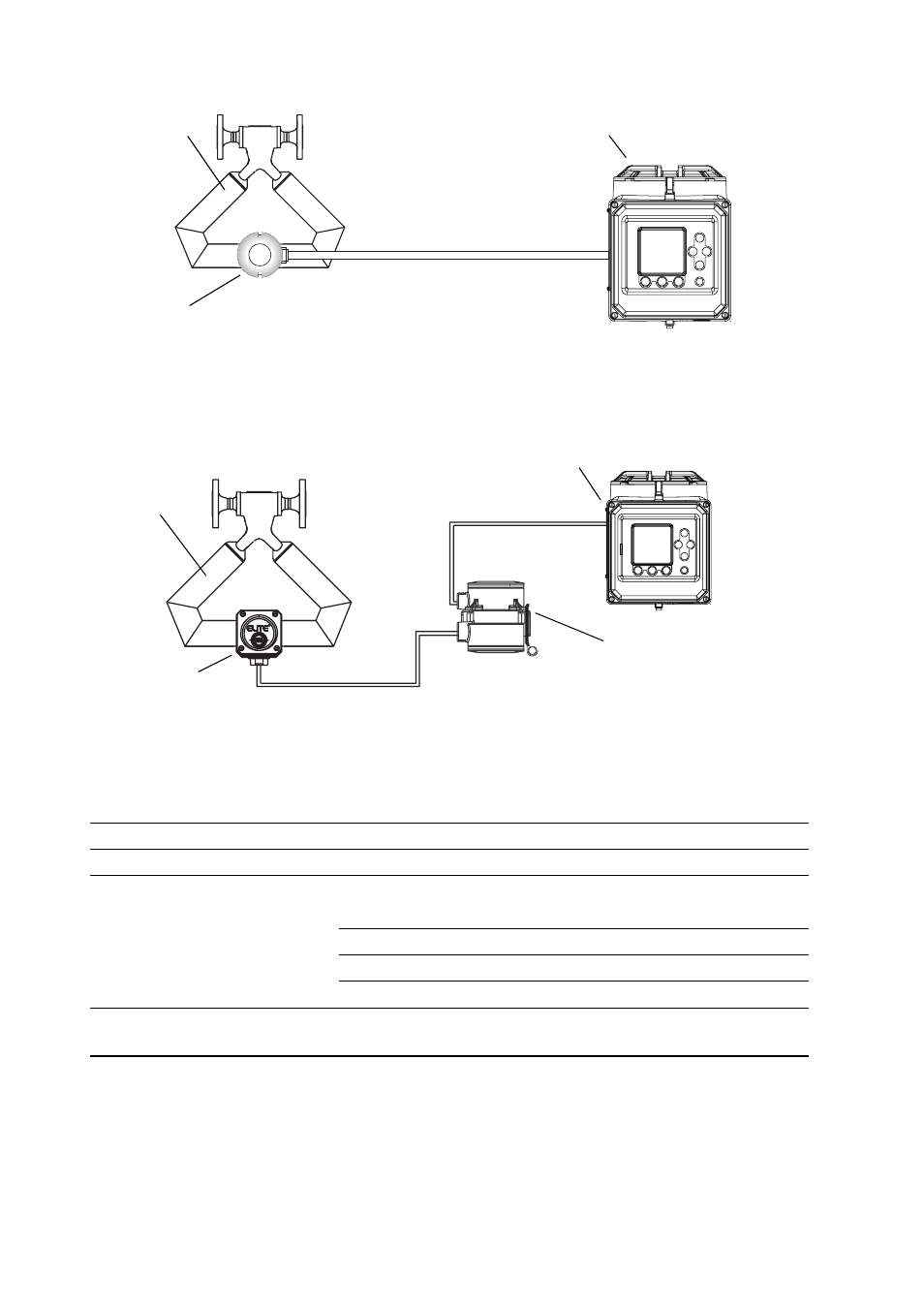

Figure 5.
4-wire remote transmitter
Figure 6.
Remote core processor with remote transmitter
Table 1.
Maximum cable lengths
Cable type
Wire gauge
Maximum length
Micro Motion 9-wire
Not applicable
60 feet (20 meters)
Micro Motion 4-wire
Not applicable
1000 feet (300 meters)
User-supplied 4-wire
•
Power wires (VDC)
22 AWG
(
0,35 mm
2
)
300 feet (90 meters)
20 AWG (0,5 mm
2
)
500 feet (150 meters)
18 AWG (0,8 mm
2
)
1000 feet (300 meters)
•
Signal wires (RS-485)
22 AWG (0,35 mm
2
) or larger
1000 feet (300 meters)
Cable from transmitter’s FO
to Model 3350’s FI
(1)
(1) Applies only to the Model 3300 applications peripheral when receiving frequency input
from a remote Micro Motion transmitter such as an IFT9701 or RFT9739.
Not applicable
500 feet (150 meters)
Model 3700
4-wire cable
Sensor
Core processor
(standard or enhanced)
Sensor
Junction box
9-wire cable
4-wire cable
Model 3700
Core processor
(standard only)
