Installing C2RPS-PSMs
SecureStack C2 Installation Guide 2-3
5.
Proceed to “
Installing C2RPS‐CHAS8 into the Rack
” on page 2‐4 for the rack mount
installation instructions.

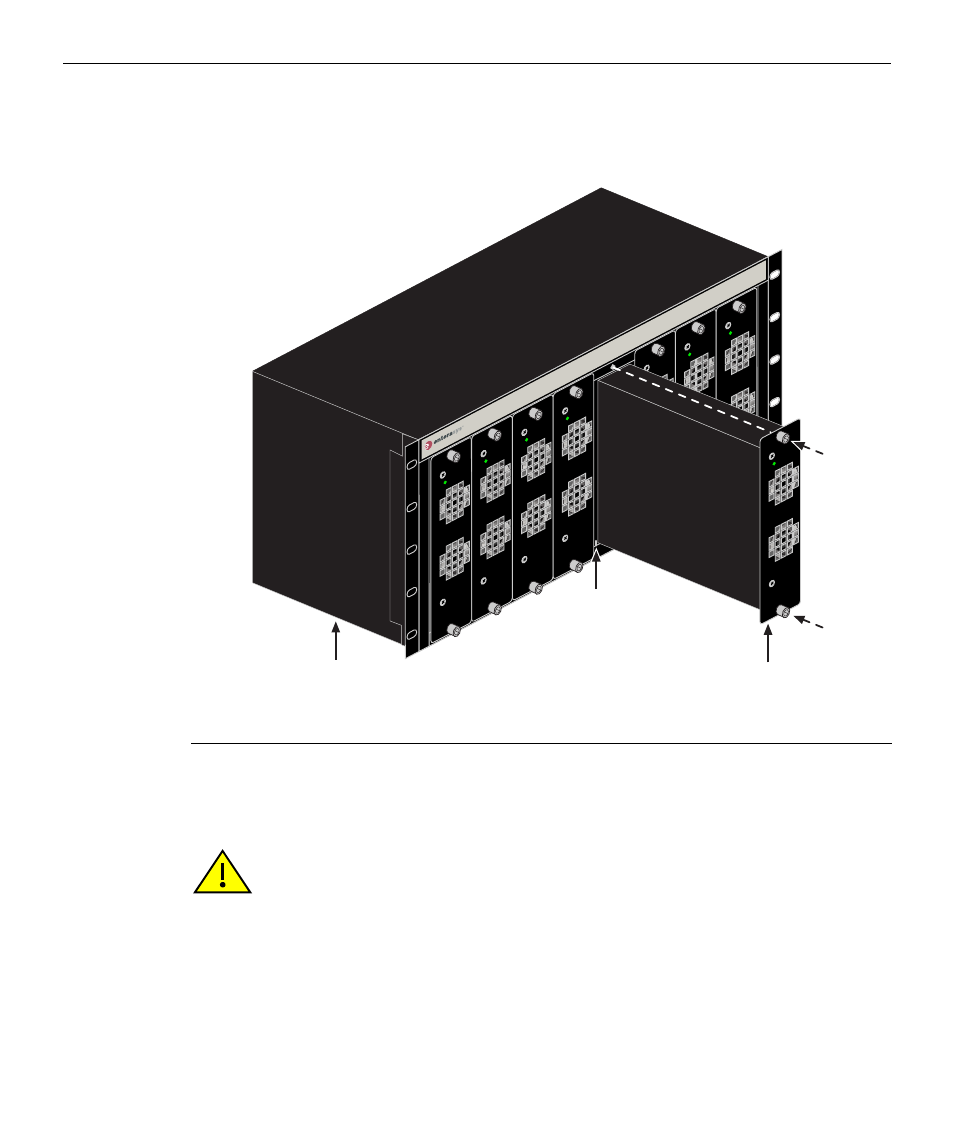

Figure 2-1 C2RPS-PSM Installation
Replacing an Installed C2RPS-PSM
To replace a PSM installed in an operating system, proceed as follows:
1.
Unplug the AC power cord of the PSM from the AC power source first, then from the
rear of the PSM.
2.
Loosen the captive screws securing the PSM until it is released from the chassis front
panel.
1 C2RPS-CHAS8
3 Chassis power supply slot
2 C2RPS-PSM
4 Captive screws (2)
C2RPS-CHAS8
C2RPS-PSM
Po
we
r
C2RPS-PSM
Po
we
r
C2RPS-PSM
Po
we
r
C2RPS-PSM
Po
we
r
C2RPS-PSM
Pow
er
C2RPS-PSM
Po
we
r
C2RPS-PSM
Po
we
r
C2RPS-PSM
Po
we
r
А
Г
Б
В
Г
Caution: Observe all Electrostatic Discharge (ESD) precautions when handling sensitive
electronic equipment.
Precaución: Al trabajar con equipos electrónicos sensibles, tome todas las
precaucionesde seguridad para evitar descargas de electricidad estática.
