Packaging for shipment, cont’d – Extron electronic HSA 822 User Manual
Page 26
HSA 822 Hideaway
®
Enclosure • Packaging for Shipment
Packaging for Shipment, Cont’d
HSA 822 Hideaway
®
Enclosure • Packaging for Shipment
4
.
Place the enclosure and clamshell rightside-up on a
horizontal surface. To protect the finish, place the
enclosure on a soft cloth or rubber mat.
5
.

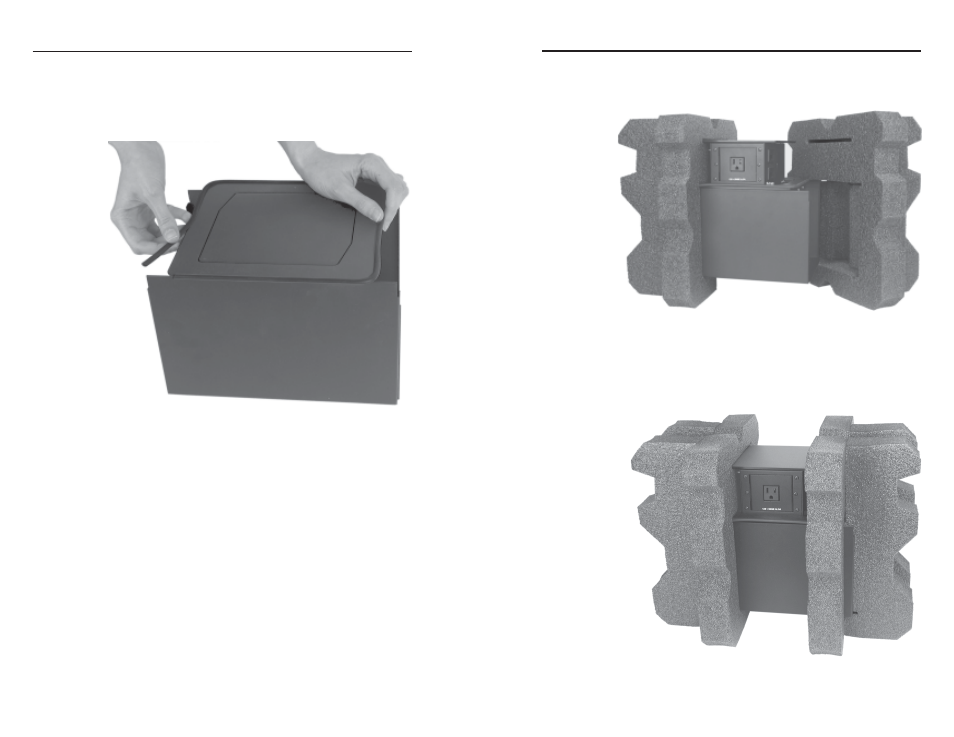

Install the rubber strips that protect the flanged edges of
the top of the surface enclosure (figure B-3).
Figure B-3 — Installing protective strips
6
.
Release (extend) the top panel.
B-5
B-4
7
.
Insert the HSA 822 and the clamshell into one of the foam
shells (figure B-4). Either open end of the clamshell and
the open top panel will fit into the recesses in the foam.
Figure B-4 — Installing the foam shell
8
.
Insert the opposite end of the HSA 822 and the clamshell
into the remaining foam shell (figure B-5). Firmly push the
foam shells together as far as they will go to completely
suspend the HSA and clamshell. The sides of the
clamshell protrude through slots in the foam.
Figure B-5 — HSA suspended in the foam
