c A b l e A c c e s s e n c l o s u r e s
Cable Cubby
®
300S
Surface-Mountable Enclosure with Square Bezel for Cables,
AAPs, and AC Power Outlets
features
• Accommodates up to two or three single-space AAP - Architectural Adapter Plates
• Offers convenient access to cable connections
• Top surface available in black anodized or brushed aluminum finishes
• Brushed brass and polished aluminum finishes available by special order,
requires 11-14 week lead time
• Flush mountable into table or flat surface
• One or two unswitched AC outlets
• Versions available with US, Australia, UK, Central Europe, Switzerland, France,
Israel, or India power outlets
• Available Universal AC power receptacle accepts US, UK, Israel, Central
Europe, France, Australia, India, Swiss, Italy, and Denmark AC plug types
• UL/CUL listed and CE compliant
• Installation routing template available upon request
desCriPtion

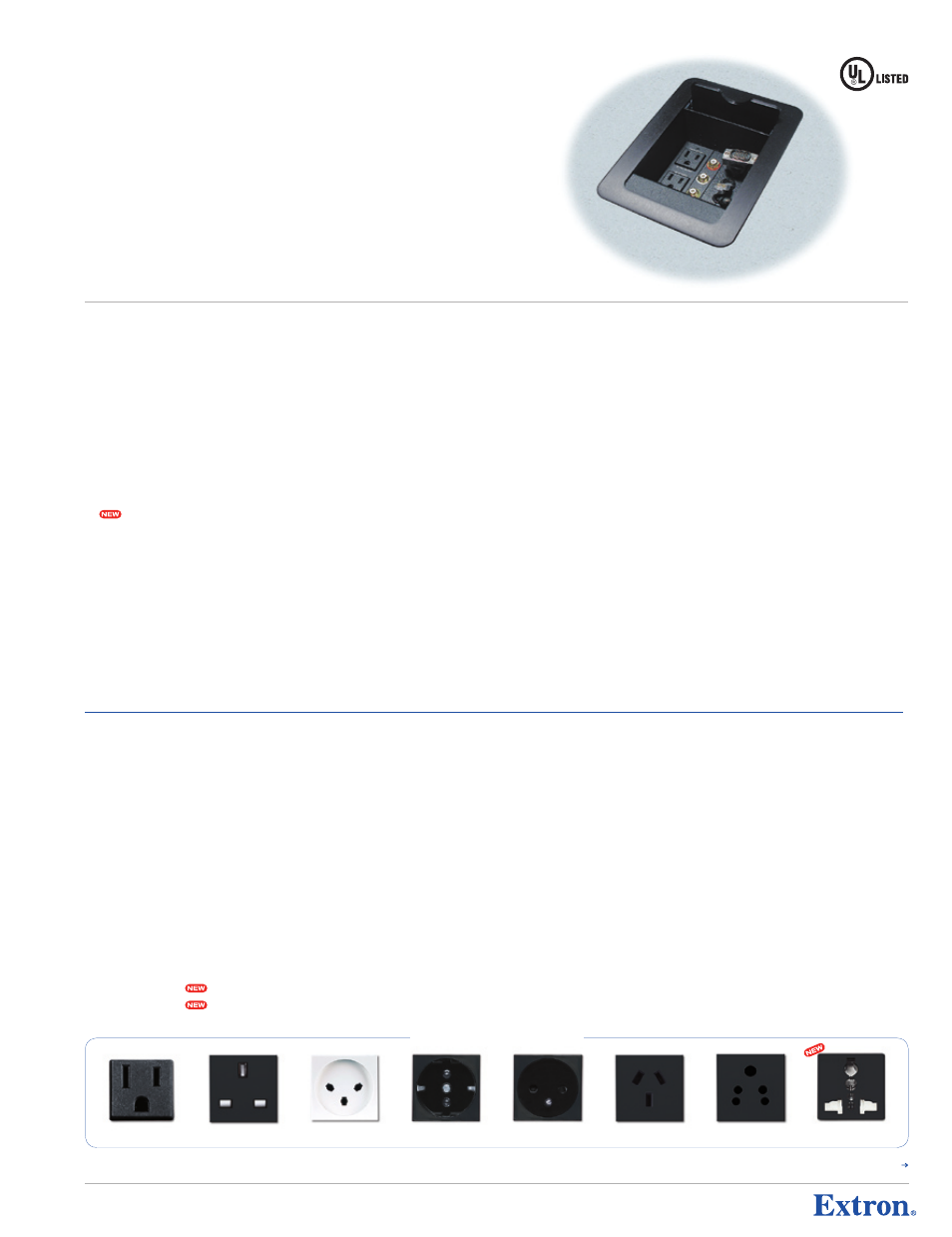

The Extron Cable Cubby ® 300S is a durable, metal enclosure that can be mounted into a
tabletop or other flat surface. When the cables are not being used, they can be stored out of
sight while remaining connected to the system, offering a discreet way to access cables and
connection points as they are needed.
Cable Cubby 300 models are available with a variety of height-adjustable, AC power outlet
styles. Versions are available with discrete US, Australia, UK, Central Europe, Switzerland,
France, Israel, or India power outlets, as well as a universal receptacle ideal for use in hotels
and conference centers. US models are equipped with two unswitched AC power outlets and
can accommodate up to three single-space AAP – Architectural Adapter Plates. All other models
features one unswitched AC power outlet and accommodate up to two single-space AAPs. The
Extron line of optional AAPs allows you to customize the Cable Cubby with almost any kind of
pass-through connectivity required.
Within its base, the Cable Cubby 300S offers adjustable panels with three sizes of hole openings
to supplement a variety of cable diameters. The elevation of the AAPs inside the Cable Cubby
and the arrangement of the AAPs and the power outlets is adjustable to suit cable lengths
and connector types. The Cable Cubby 300S ships standard in black anodized or brushed
aluminum finishes.*
*Polished aluminum finish and brushed brass finish are also available. These models are built to order and
require a longer lead time. Call an Extron Customer Support Representative for more information.
Note: Cables and AAP - Architectural Adapter Plates are shown in the photos and diagrams above as
examples only. Cables and AAPs are optional accessories for the Cable Cubby products and must be
ordered separately.
US UK Israel Central Europe France Australia India Universal
aC outlet oPtions
Shown with optional
cables and AAP
Model
version desCriPtion Part #
Cable Cubby 300S US - Black Anodized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-526-01
Cable Cubby 300S US - Brushed Aluminum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-526-03
Cable Cubby 300S UK - Black Anodized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-712-0B
Cable Cubby 300S UK - Brushed Aluminum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-712-1B
Cable Cubby 300S SWISS - Black Anodized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-712-0H
Cable Cubby 300S SWISS - Brushed Aluminum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-712-1H
Cable Cubby 300S ISRAEL - Black Anodized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-712-0C
Cable Cubby 300S ISRAEL - Brushed Aluminum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-712-1C
Cable Cubby 300S INDIA - Black Anodized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-712-0G
Cable Cubby 300S INDIA - Brushed Aluminum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-712-1G
Cable Cubby 300S FRANCE - Black Anodized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-712-0E
Cable Cubby 300S FRANCE - Brushed Aluminum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-712-1E
Cable Cubby 300S EU - Black Anodized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-712-0D
Cable Cubby 300S EU - Brushed Aluminum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-712-1D
Cable Cubby 300S AUS - Black Anodized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-712-0F
Cable Cubby 300S AUS - Brushed Aluminum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-712-1F
Cable Cubby 300S UNIVERSAL – Black Anodized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-712-0J
Cable Cubby 300S UNIVERSAL – Brushed Aluminum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-712-1J
