Installation, cont’d – Extron electronic HSA 822 User Manual
Page 10
HSA 822 Hideaway
®
Enclosure • Installation
HSA 822 Hideaway
®
Enclosure • Installation
Installation, cont’d
2-6
6
.
Remove the plastic strips that protect the flanged edges of
the top of the surface enclosure. If a sticky residue
remains, remove it with an appropriate metal cleaning
product.
CAUTION
Do not use isopropyl alcohol or other solvents to
clean the HSA. Strong solvents will ruin some
finishes.
7
.
Carefully lower the HSA enclosure into the hole to test the
fit. If necessary, remove the enclosure and use a file or
rasp to enlarge or smooth the edges of the opening.
8
.
From the underside of the table, bolt the clamshell to the
enclosure with two bolts of optimum length (included)
(figure 2-3).
9
.
Peel any remaining protective coating from the enclosure.
Mounting
Surface
Full Thread
Mounting Bolts
AAP Cables
Flat Washer
Power Cord
RJ-45 Connectors
Clamshell
HSA 822
CO
MPU
TER
INP
UT
SEL
ECT
AU
DIO

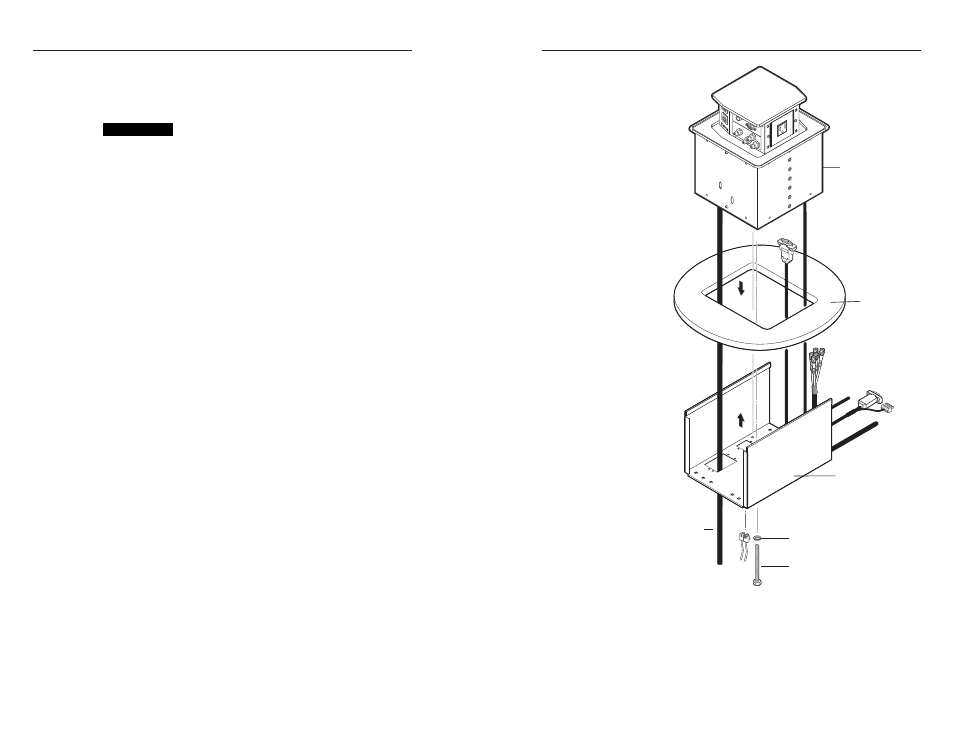

Figure 2-3 — Mounting the HSA 822 enclosure
2-7
