- 18 -

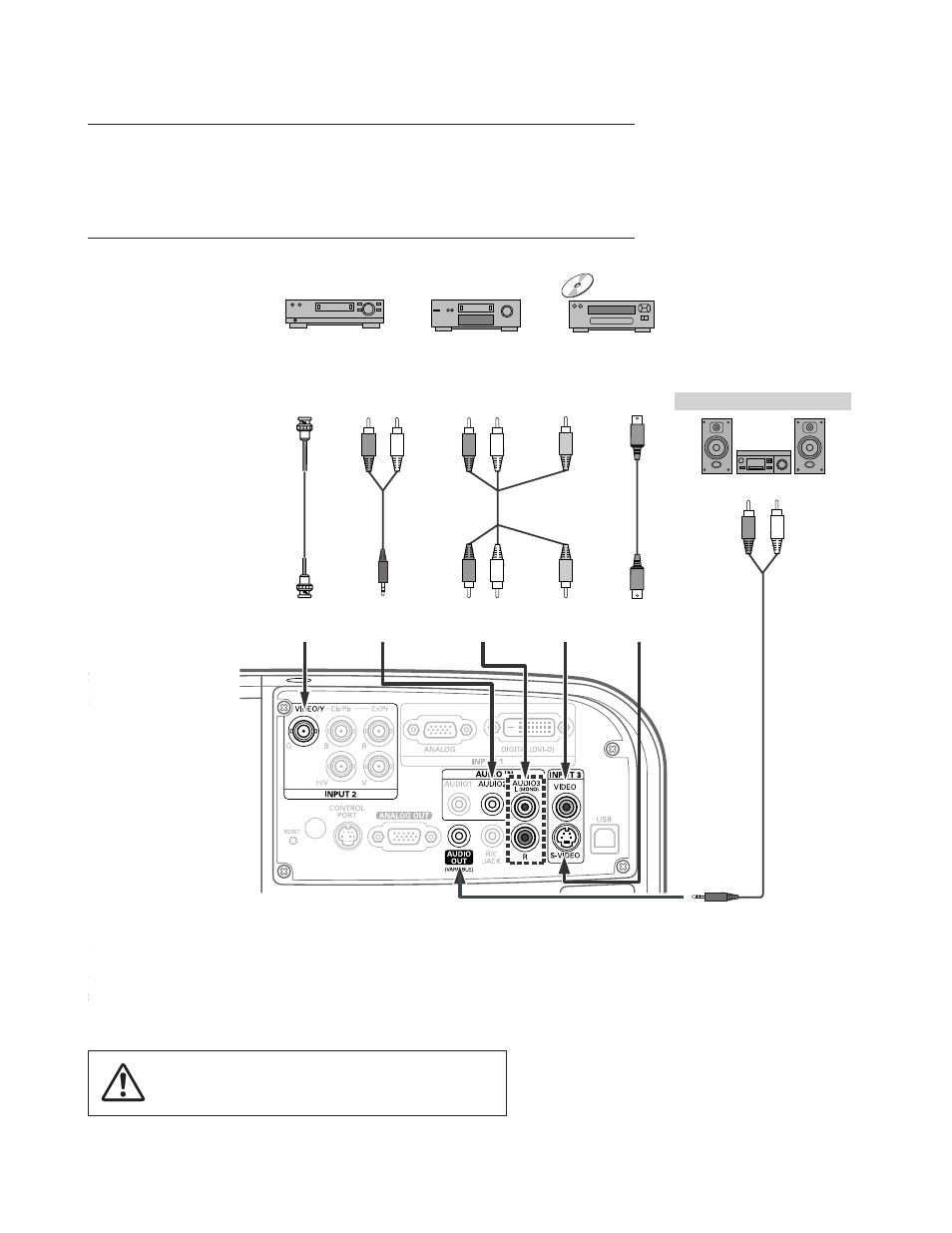

Connecting to Video Equipment (Video, S-Video)
Cables used for connection
• Video Cables (RCA x 1) • Audio Cables (Mini Plug [stereo] x 2)
• S-VIDEO Cable • BNC Cable
• Audio Cable (RCA x 2)
(Cables are not supplied with the projector.)
External Audio Equipment
Audio cable
(stereo)
VIDEO S-VIDEO
S-video
cable Video and
audio cable
Composite Video and Audio Output
S-video
Output
AUDIO IN
Audio Input
AUDIO OUT
(stereo)
(R) (L) (Video)
Unplug the power cords of both the projector and external
equipment from the AC outlet before connecting cables.
AUDIO IN VIDEO
(R) (L)
✔Notes:
•When connecting the AUDIO OUT to external audio equipment,
the projector’s built-in speaker is disconnected.
•The S-VIDEO jack connection overrides the VIDEO jack connection
when selecting AUTO in the Input Menu.
BNC
cable
Audio
cable
(stereo)
