Page 26 16938-3-0806
Cleaning
The blower wheel will collect lint and could require cleaning once
a year. If the air output decreases or the noise level increases, it
indicates a dirty wheel.
Blower Motor
The blower motor does not have oiling holes. Do not attempt to
oil blower motor.
Wiring
The appliance, when installed, must be electrically grounded in
accordance with local codes or, in the absence of local codes, with
the National Electrical Code ANSI/NFPA No. 70, if an external
electrical source is utilized. This appliance is equipped with
a three-prong [grounding] plug for your protection against
shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the
grounding prong from this plug. For an ungrounded receptacle,
an adapter, which has two prongs and a wire for grounding, can
be purchased, plugged into the ungrounded receptacle and its
wire connected to the receptacle mounting screws. With this wire
completing the ground, the appliance cord plug can be plugged
into the adapter and be electrically grounded.

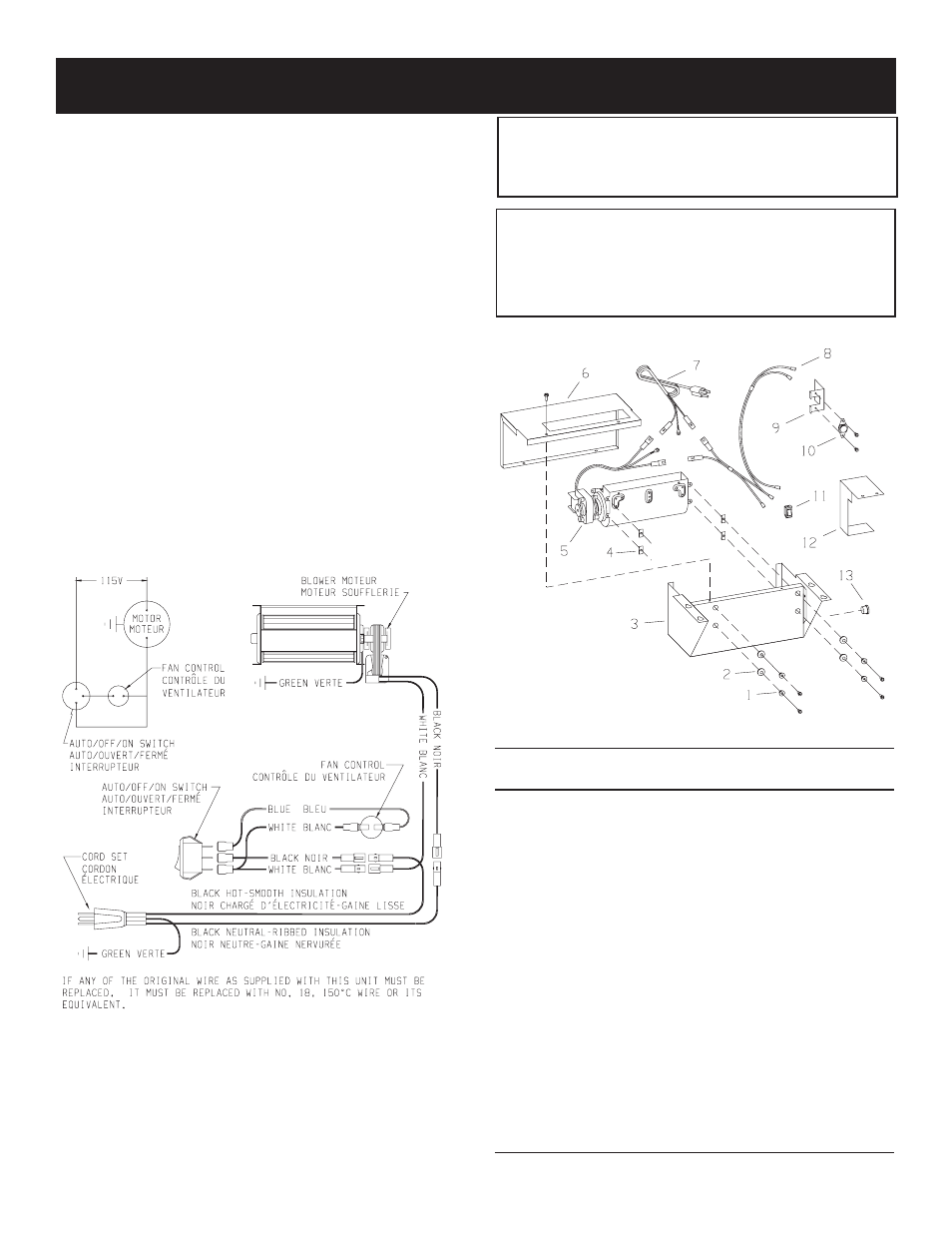

OPTIONAL BLOWER INSTALLATION INSTRUCTIONS (continued)
CAUTION: Label all wires prior to disconnection when
servicing controls. Wiring errors can cause improper
and dangerous operation. Verify proper operation after
servicing.
WARNING:
Unplugging of blower accessory will not stop the heater
from cycling. To shut heater off: Turn temperature dial
or thermostat to lowest setting. Turn knob on gas control
to "OFF", depressing slightly. Do not force.
PARTS LIST
Index
No.
Part
No.
Description
1 R-1454 Brass Bushing (4 Required)
2 R-1499 Rubber Grommet (4 Required)
3 CI-002 Blower Housing
4 R-1517 Tinnerman Clip (4 Required)
5 R-2804-A Blower Assembly
6 CI-003 Blower Housing Cover
7 R-2099 Cord Set
8 R-3767-A Wire Harness
9A CI-004 Fan Control Bracket
(Use with CIBV-30 and CIVF-25)
9B CI-325 Fan Control Bracket
(Use with CIDV-30)
10 R-2503 Fan Control
11 R-2805 Auto/Off/On Switch
12 CI-220 Fan Control Shield (Use with CIVF-25)
13 R-1410 Bushing 7/8" Diameter
