Page 14 16938-3-0806
Before operating this heater, please review the safety warnings
pages at the beginning of this manual and those precautions and
warnings listed below.
1. Know what type of ignition system this model has (standing
pilot) and follow the applicable SAFETY and LIGHTING
instructions.
2. Check to ensure there are no gas leaks. If you are unsure, turn gas
off to the heater and call a service person or your gas utility.
CAUTION: Clothing or other flammable material should not
be placed on or near the appliance.
WARNING: Children and adults should be alerted to the
hazard of high surface temperature and should stay away
to avoid burns or clothing ignition. Young children should
be carefully supervised when they are in the same room as
the appliance.
3. Tampering is DANGEROUS and voids all warranties. Any
component that is found to be faulty, must be replaced with an
approved component.
Initial Lighting (Figure 14)
Upon completing the gas line or turning the gas valve "ON" after it
has been in the "OFF" position, a small amount of air will be in the
lines. When first lighting the appliance, it will take a few minutes
for the lines to purge themselves of this air. Once the purging is
complete, the appliance will light and operate satisfactorily.
Subsequent lightings of the appliance will not require such purging
if the gas valve is not turned to "OFF."
Standing Pilot Operation
1. Follow the SAFETY and LIGHTING INSTRUCTIONS for
standing pilot controls found in this manual and on labels found
attached to the appliance.
CAUTION: During the initial purging and subsequent lightings,
never allow the gas valve control knob to remain depressed in
the "pilot" position without pushing the piezo ignitor button
at least once every second.
2. D u r i n g t h e
heating season,
leave the control
valve knob in the
"ON" position.
This will allow
the pilot flame
to remain lit.
Turn the burner
flame on or off with the
appliance ON/OFF rocker
switch, wall switch, remote control kits or 750 millivolt wall
thermostat.
NOTE: The gas control valve allows you to increase or decrease the
height of the main burner flame. The control valve has a pressure
regulator with a knob as shown in Figure 14. Rotate the knob
clockwise to "HI" to increase the flame height and counterclockwise
to "LO" to decrease the flame height.
3. When the heating season is over, turn the on/off switch to "OFF"
and the control valve to "OFF". The system, including the pilot
light, will be shut down.
Maximum and Minimum Input
The gas valve on the appliance allows the input to adjust between
a maximum input of 30,000 to a minimum input of 21,000 Btuh.
Please be advised, the maximum input provides the greatest amount
of yellow flame and ember glow on the log set. The minimum
input substantially decreases the yellow flame and ember glow
on the log set.

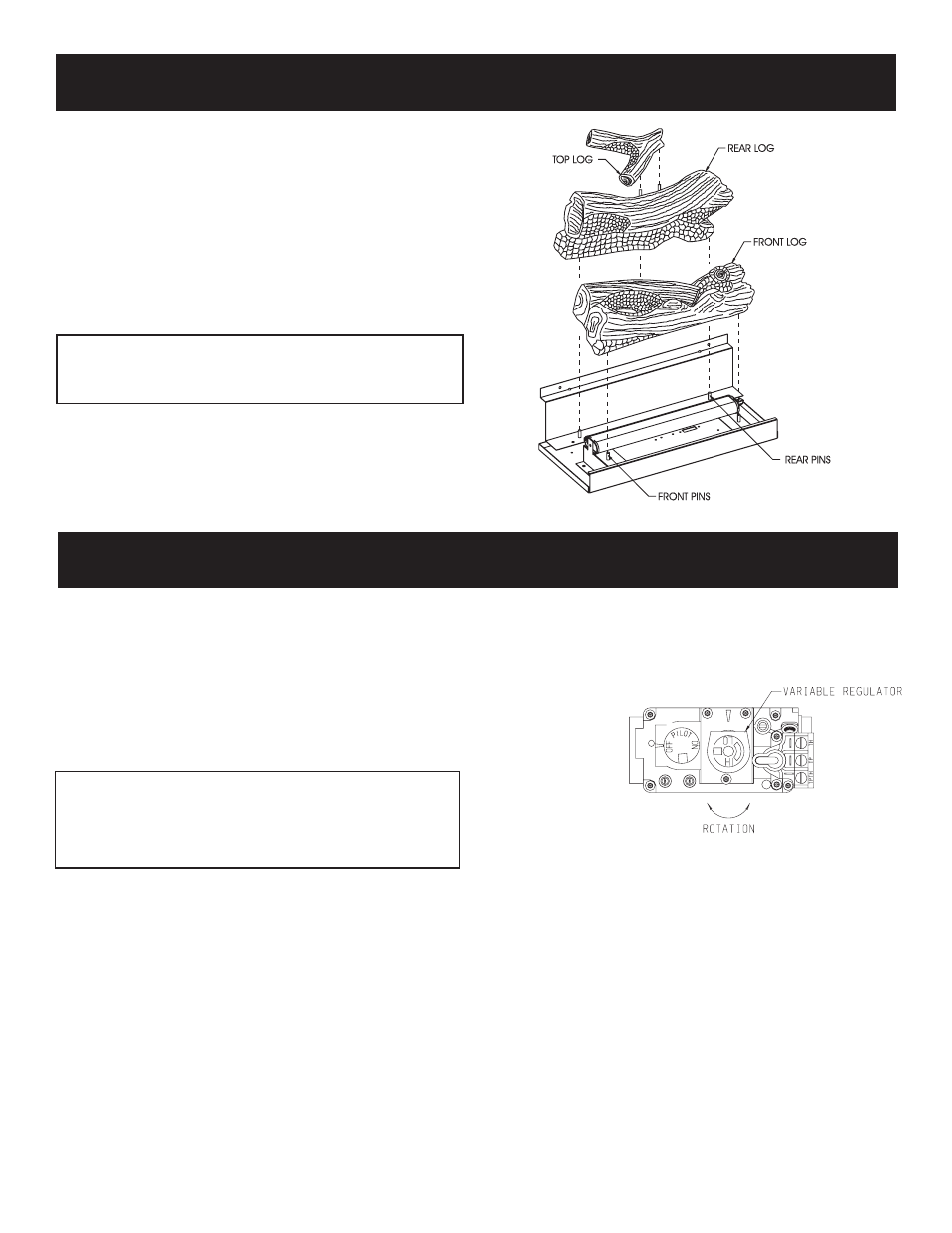

LOG PLACEMENT
1. Remove screen front from inner body by removing (2) 10 x
1/2" screws.
2. Remove logs from interior of firebox. Remove all protective
packaging from logs and interior of firebox.
3. Place front log onto two (2) front pins on inner bottom.
4. Place rear log onto two (2) rear pins on rear log support.
5. Place top log onto two (2) pins on rear log.
6. Replace and attach screen front onto inner body with (2) 10 x
1/2" screws from Step 1.
7. Log placement is completed.
Refer to Figure 13 for the following warning.
Warning: Failure to position the parts in accordance with this
diagram or failure to use only parts specifically approved with this
appliance may result in property damage or personal injury.
OPERATING GUIDELINES
Figure 13
Figure 14
