MIX 301 • Installation and Operation 5
BU C 102
A U D IO B A L /U N B A L
C O N V E R T E R
P O W
E R
1 2 V 0 .2 A
M A X
L
R
B A L /U N B A L O
U T P U T S L
R
B A L /U N B A L I N P U T S
S P A R E O N
B A L
U N B A L 1 2
MA V S ER IES
AV M AT RIX SW ITC HE R
I/O
AU D
AU DIO SE TU P
PR ES ET
VID
IR
+dB
-dB
EN TER
2
7
6
5
2
4
1
IN PU TS
OU TP UT S
8
3
1
8
6
5
4
3
7
+
+
L
R

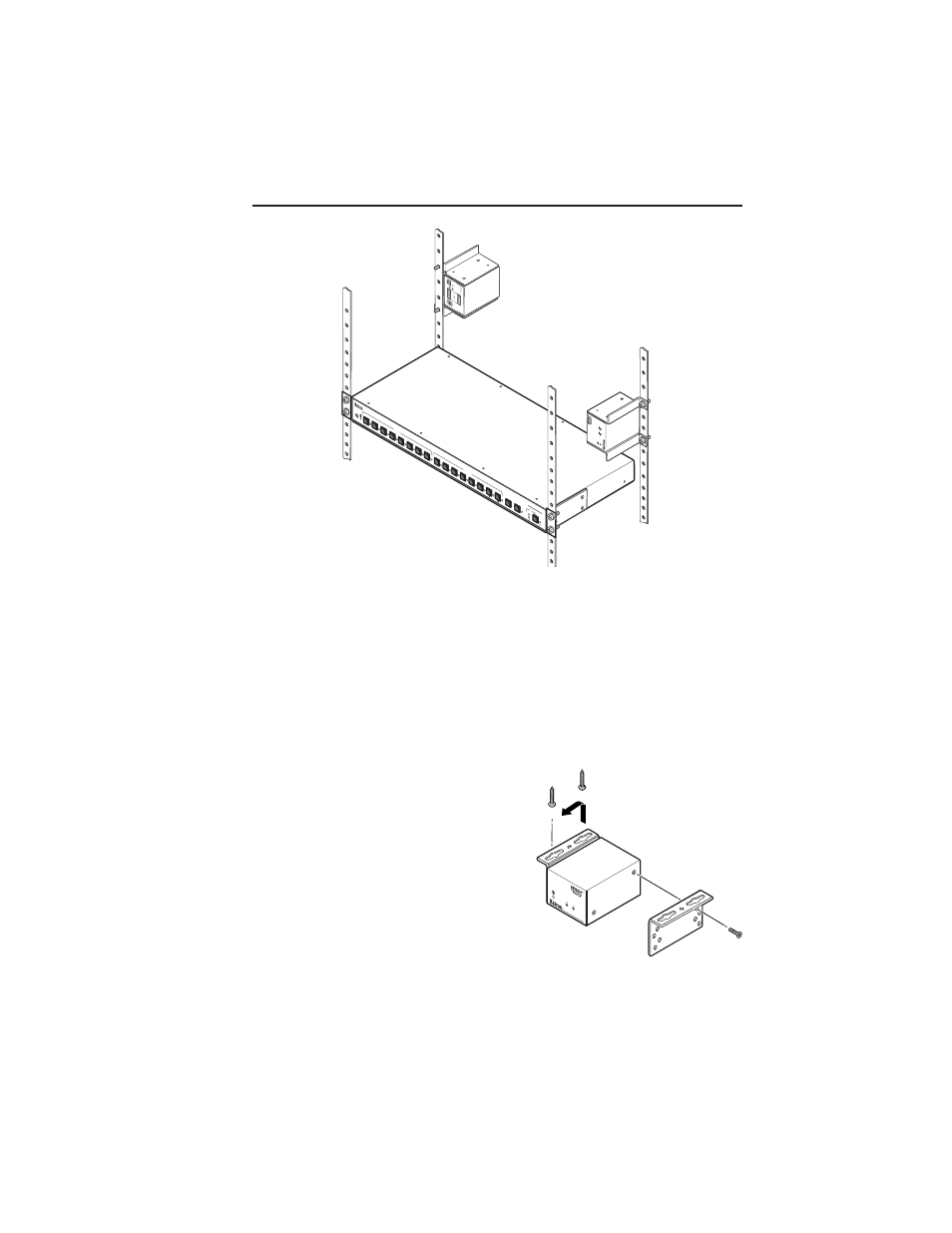

Furniture/Projector mounting
Use the optional MBU 123 mounting kit (furniture,
part #70-212-01, or the PMK 100 projector pole mount kit, part
#70-217-01) to mount the MIX 301, as follows.
Furniture mounting
1. Remove the rubber feet if they were previously installed.
2. Attach the mounting
bracket to the MIX 301,
as shown here.
a. Remove the two
machine screws
from one side of
the unit. Save
these screws for
future use.
b. After lining up a
bracket with the
holes, attach the
bracket using the
longer machine screws provided.
c. Repeat this step to attach the other bracket.
3. Attach the MIX 301 to the furniture.
