EAGLE - EVR-150 Installation and Operation Instructions
Set Up the Radio
The user MMSI is a unique nine digit number, similiar to a personal telephone number. It is
used on marine transceivers that are capable of using DSC (Digital Select Calling).
If you don’t have a user MMSI contact the appropriate authorities in your country. If you’re
unsure who to contact, consult your Eagle dealer.
Enter Your User MMSI
Refer to 4.2 Enter your user MMSI on page 29.
Pin
WIre
Function
Notes
1
Red
No connection
(Not used)
2
Orange
No connection
(Not used)
3
White
Program/clone
(Not used)
4
Green
NMEA IN (-)
(From GPS)
5
Yellow
NMEA IN (+)
(From GPS)
6
Black
No connection
(Not used)
7
Blue
No connection
(Not used)
8
Grey
No connection
(Not used)

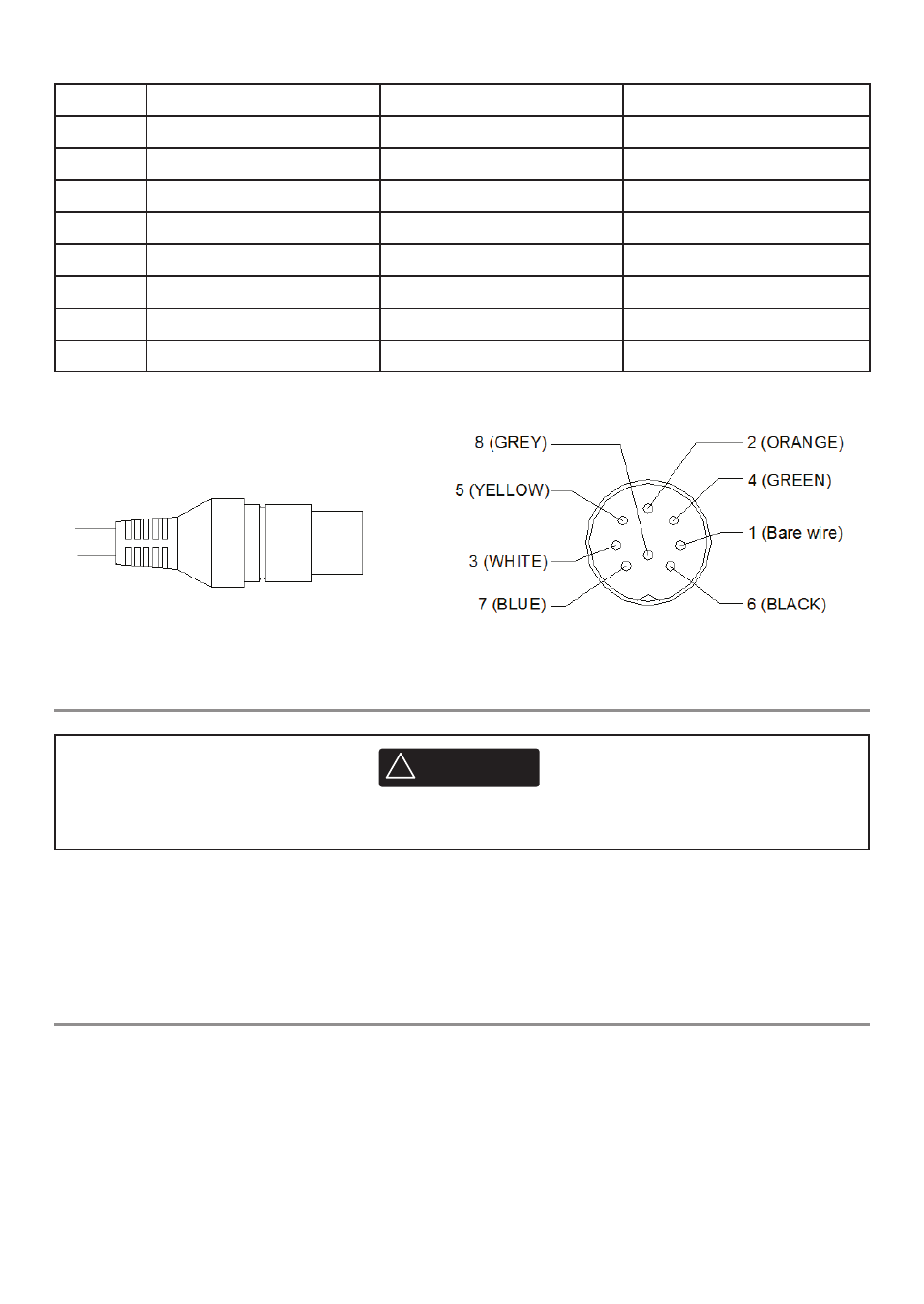

Wiring for GPS/COM connector
!
WARNING
You can’t make any DSC transmissions until you’ve obtained a user MMSI and entered it into
your EVR-150.
