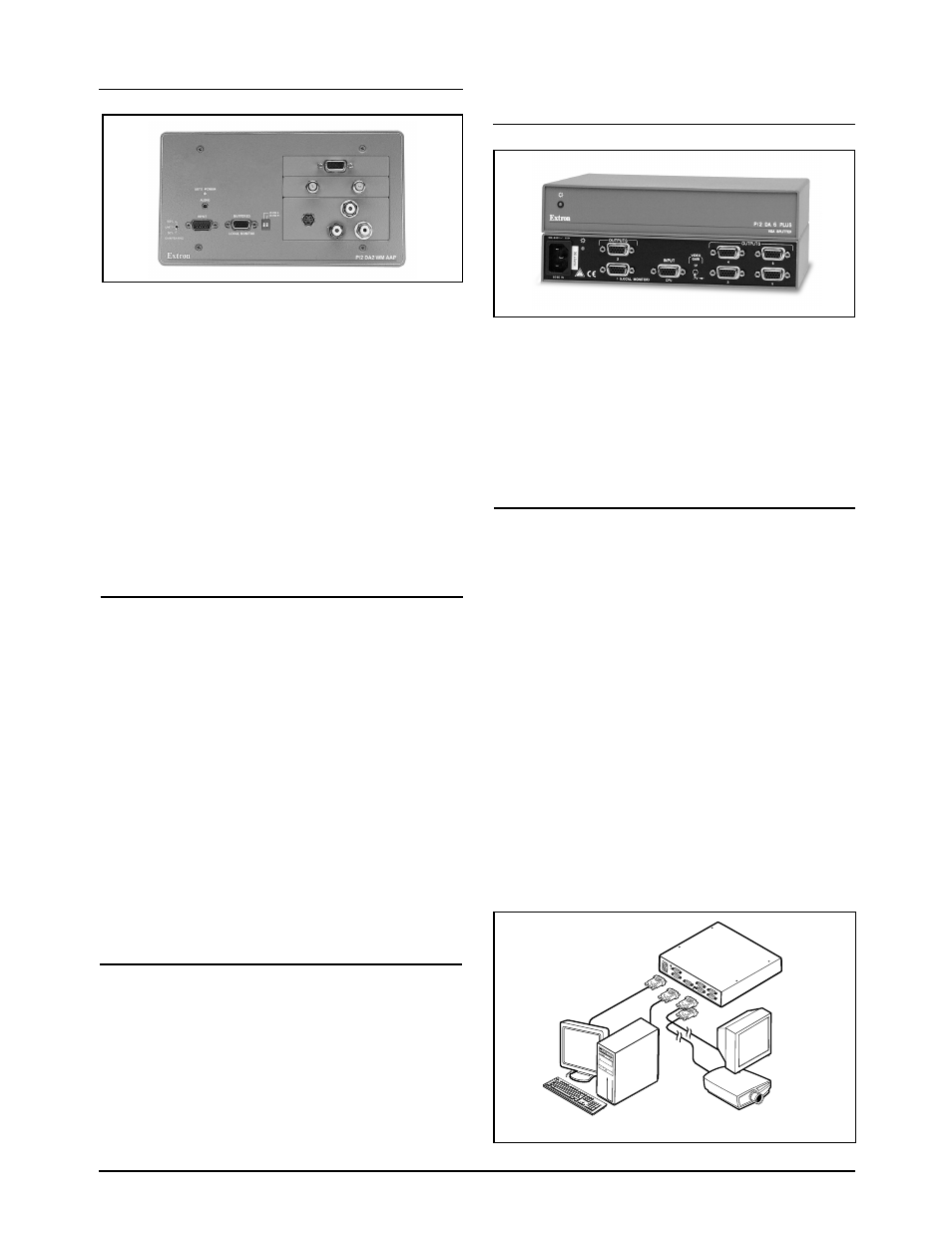

Extron’s P/2 DA2 WM is a wall-mountable, one input, two
buffered output, high resolution VGA/SXGA distribution
amplifier with audio. This DA drives a high resolution com-
puter-video signal up to 250 feet through high-quality cable,
such as Extron’s VGA cable. The P/2 DA2 WM is enclosed in
a two-gang box with a face plate (available in grey, black, or
white). It fits flush into a wall, podium, or table and blends
into the environment. The P/2 DA2 WM is available in an
EC model compatible with European channel mounting sys-
tems. Both the P/2 DA2 WM and the P/2 DA2 EC are avail-
able with openings for optional Architectural Adapter Plates to
provide additional signal pass-through connectors.
The P/2 DA2 WM has the same features as the P/2 DA2 MT
except for the following differences:
■ Bandwidth – 270 MHz (-3dB) RGB video bandwidth.
■ Input connector – Features a 15-pin HD male connector for
input. The P/2 DA2 WM does not include an input cable.
■ Wall-mountable – Self-contained enclosure allows easy
installation into existing walls.
■ EC model – EC version with white face plate available for
European cable channel mounting systems.
■ Architectural Adapter Plate openings – The P/2 DA2 WM
and P/2 DA2 EC are available with openings for
Architectural Adapter Plates (AAPs). Over 100 AAPs fea-
ture various video and audio signal pass-through connec-
tors.
■ Power – Accepts 12-24 AC/DC through captive screw
connector. Power supply sold separately.
P/2 DA2 WM (grey) ............................................ 60-296-01
P/2 DA2 WM (black) .......................................... 60-296-02
P/2 DA2 WM (white) .......................................... 60-296-03
P/2 DA2 EC (white) ............................................ 60-296-10
P/2 DA2 WM AAP (grey) .................................... 60-311-01
P/2 DA2 WM AAP (black) .................................. 60-311-02
P/2 DA2 WM AAP (white) ................................ 60-311-03
P/2 DA2 EC AAP (white) .................................... 60-311-10
Extron’s P/2 DA4 PLUS and P/2 DA6 PLUS are rack-mount-
able, high resolution VGA/SXGA distribution amplifiers. The
P/2 DA4 PLUS provides four buffered outputs, and the
P/2 DA6 PLUS provides six buffered outputs. Each DA drives a
high resolution computer-video signal up to 250 feet through
high-quality cable, such as Extron’s VGA cable.
■ Bandwidth – 300 MHz (-3dB) RGB video bandwidth.
■ Compatibility – Compatible with all modes/resolutions of
VGA, SVGA, XGA, and SXGA graphic cards, monitors,
and projectors. Compatible with Mac sources and Mac-
compatible displays with optional Mac/VGA adapter.
■ Video connectors – Features 15-pin HD female connec-
tors for video input, buffered video outputs, and buffered
local monitor output.
■ ID bits – ID bits are routed to local monitor output.
■ Boost – Boost switch helps maintain signal integrity for
long cable runs.
■ Rack-mountable – Housed in a 1U high, 1/2 rack width
enclosure.
■ Power supply – Includes a worldwide, 100-240VAC,
50/60 Hz, auto-switchable internal power supply.
■ Part numbers
P/2 DA4 PLUS ........................................ 60-246-01
P/2 DA6 PLUS ........................................ 60-245-01
P/2 DA2 WM
P
ART NUMBERS
P/2 DA4 PLUS
P/2 DA6 PLUS
F
EATURES
F
EATURES
PC Computer
P/2 DA6 PLUS
VGA/SVGA Compatible
Displays
P/2 DA6 PLUS Shown
P/2 DA2 WM AAP (w/ Architectural Adapter Plates)
APPLICATION DIAGRAM
