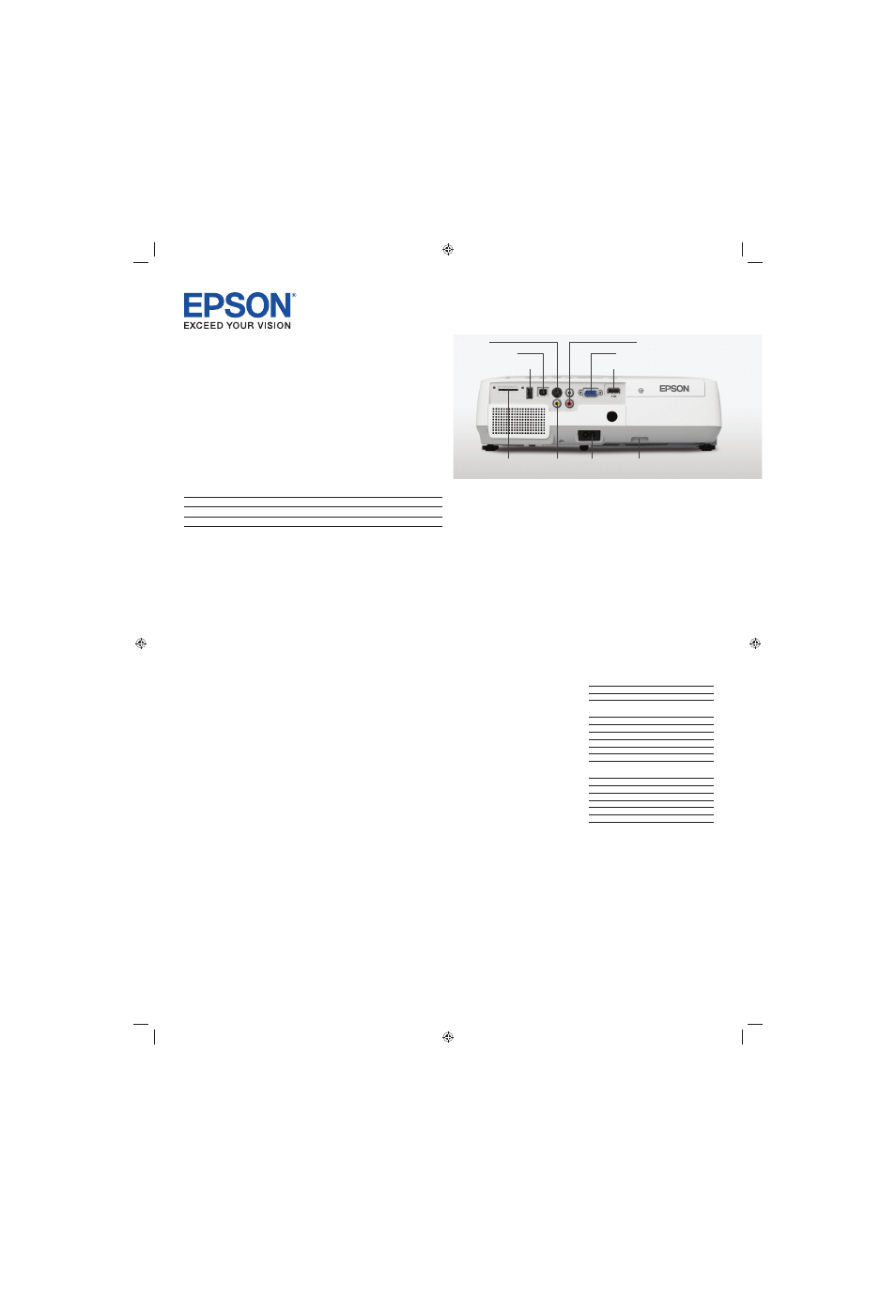

BACK PANEL
Computer/Component Video
HDMI
S-video
USB (Type B)
Audio L/R
Composite
Video
Power Anchor
Bar
USB (Type A)
SD Card
Slot
ORDERING INFORMATION
Product Name Product Code UPC
PowerLite Home Cinema 700 V11H285620 0 10343 87154 0
Replacement Lamp V13H010L41 0 10343 86157 2
Replacement Air Filters V13H134A13 0 10343 86412 2
PowerLite
Home Cinema 700
Home Theater Projector
SPECIFICATIONS
Projection System
Epson 3LCD, 3-chip optical engine
Projection Method
Front/rear/ceiling mount
Driving Method
Epson Poly-silicon TFT Active Matrix
Pixel Number
1,024,000 dots (1280 x 800) x 3
White Light Output*
2000 lumens (ISO 21118 Standard)
Color Light Output*
2000 lumens
Aspect Ratio
16:10
Native Resolution
1280 x 800 (WXGA)
Resize
640 x 480 (VGA), 1024 x 768 (XGA),
1152 x 864 (SXGA), 1400 x 900 (WXGA+),
1440 x 900 (WSXGA), 1680 x 1050 (WSXGA+),
1400 x 1050 (SXGA+), 1600 x 1200 (UXGA)
Lamp Type
140 W UHE (E-TORL – Epson Twin Optimized
Refl ection Lamp)
Lamp Life**
Up to 4000 hours (Low Light Output Mode)
Up to 3000 hours (High Light Output Mode)
Throw Ratio Range
1.58 – 1.90 (16:10)
1.79 – 2.15 (4:3)
Size (projected distance)
27" – 270" (2.8’ – 28.6’)
Keystone Correction Automatic
Vertical: ± 11 degrees
Keystone Correction Manual
Vertical: ± 30 degrees
Contrast Ratio
2000:1
Color Reproduction
16.77 million colors
PROJECTION LENS
Type
Manual zoom/Manual focus
F-number
1.6 – 1.74
Focal Length
18.4 mm – 22.12 mm
Zoom Ratio
Optical zoom 1.0 – 1.2
OTHER
Display Performance
NTSC: 560 line
PAL: 560 line
(Depends on observation of the
multi-burst pattern)
Input Signal
NTSC/NTSC4.43/PAL/M-PAL/
N-PAL/PAL60/SECAM
Interfaces
Computer/component video:
D-sub 15 pin x 1
S-video: Mini DIN x 1
Composite video: RCA (Yellow) x 1
Audio in: RCA x 1 (White/Red)
USB connector: Type B x 1
HDMI port
SD card slot
Monitor out: D-sub 15 pin x 1
Speaker
7 W (Mono)
Operating Temperature
41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
Power Supply Voltage
100 – 240 V ±10%, 50/60 Hz
Power Consumption
246 W, 3 W standby
Fan Noise
35 dB (High Light Output Mode)
28 dB (Low Light Output Mode)
Security
Kensington ® -style lock provision,
padlock and security cable hole
DIMENSIONS (W X D X H)
Including feet: 12.9" x 9.6" x 4.0"
Excluding feet: 12.9" x 9.6" x 3.6"
Weight: 6.2 lb/2.8 kg
REMOTE CONTROL
Features
Source search selection, HDMI, slideshow, USB
display, power, aspect, color mode, volume,
e-zoom, A/V mute, freeze, menu, page up and
down, help, auto, mouse functions, ID, user
Operating Angle
Right/left: ± 30 degrees
Upper/lower: ± 15 degrees
Operating Distance
19' (6 m)
SUPPORT — THE EPSON CONNECTION SM
Pre-sales support
U.S. and Canada
800-463-7766
Internet website www.epson.com
Service Programs
Two-year projector limited warranty, Epson Road
Service program, Epson PrivateLine
® dedicated
toll-free support and 90-day lamp warranty
What’s In The Box
Power cable, projector remote control, batteries,
user manual CD, Quick Setup Sheet, PrivateLine
support card, registration card and password
protection sticker
ACCESSORY PART NUMBERS
Universal projector
ceiling mount
ELPMBPJF
Component to VGA video cable ELPKC19
S-video cable ELPSV01
SwissGear ® backpack ELPKS63
Wheeled soft case ELPKS62
Soft shoulder case for
projector and laptop
ELPKS61
Molded hardshell case ELPKS58
50" portable screen ELPSC06
60" portable pop-up screen ELPSC07
80" portable pop-up screen ELPSC08
Duet™ screen ELPSC80
Epson DC-10s document camera ELPDC10S
Kensington security lock
ELPSL01
* Light output varies depending on modes (color and white light output). White light measured using ISO 21118 Standard.
** Lamp life results will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
PACKAGING SPECIFICATIONS
PowerLite Home Cinema 700
Dimensions 20.0" x 16.5" x 11.6" (W x D x H)
Weight 20.0 lb
Replacement Lamp
Dimensions 5.5" x 6.2" x 5.5" (W x D x H)
Weight 0.75 lb
Master Carton
Dimensions
13.1" x 28.2" x 6.7" (W x D x H)
Weight 10.05 lb
Units Per Master Carton 10
Replacement Air Filter
Dimensions 3.9" x 1.2" x 4.9" (W x D x H)
Weight 0.88 lb
Master Carton
Dimensions
12.8" x 5.3" x 4.7" (W x D x H)
Weight 1.1 lb
Units Per Master Carton 10
