www.enviromaster.com 5 Multi-zone Heat Pump Condensing Units

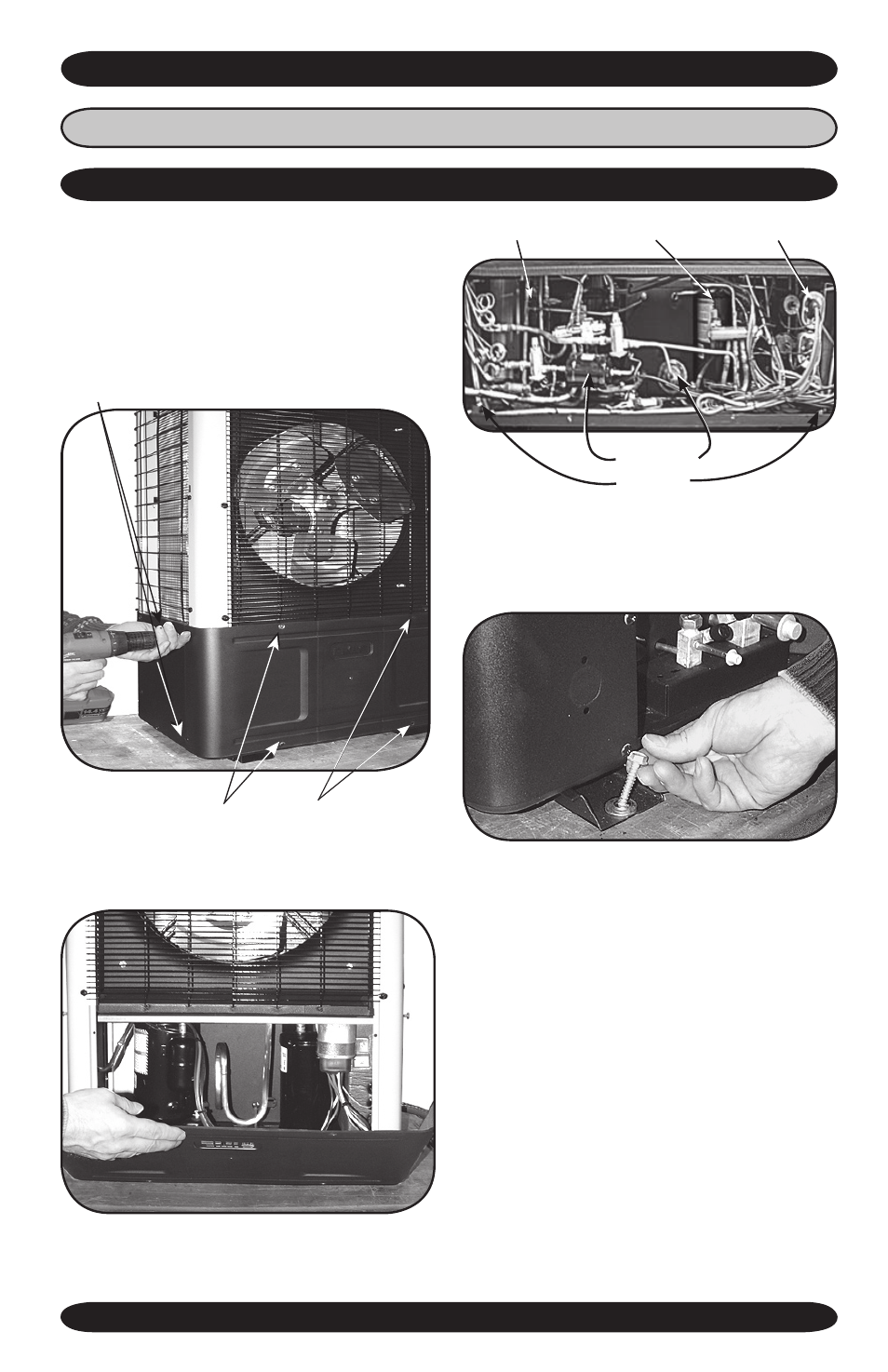

S2HA INSTALLATION INSTRUCTIONS
1. Loosen the screws on left and right sides
of the front panel. (Do not remove these
screws.)
2. Remove the screws on the front of the
panel.
3. To remove front panel:
4. Slide front panel forward to clear side
screws and remove.
Side discharge unit allows for permanent
mounting through the feet. This is highly
recommended due to the vertical design
of the unit.
S2HA UNIT MOUNTING SECTION
5. Insert lag bolts through the holes in
the bottom of the unit and tighten to
secure.
6. Insert lag bolts through the holes in the
feet on the back of the unit and tighten
to secure.
7. Replace the front panel, do not tighten
the side screws at this time.
Lag Bolts
Accumulator Compressor Capacitor
Filter Driers
NOTE: For T2HA installation refer to the T2HA Installation Instruction in this manual.
