Edelbrock 33505 - Manual (Page 3)

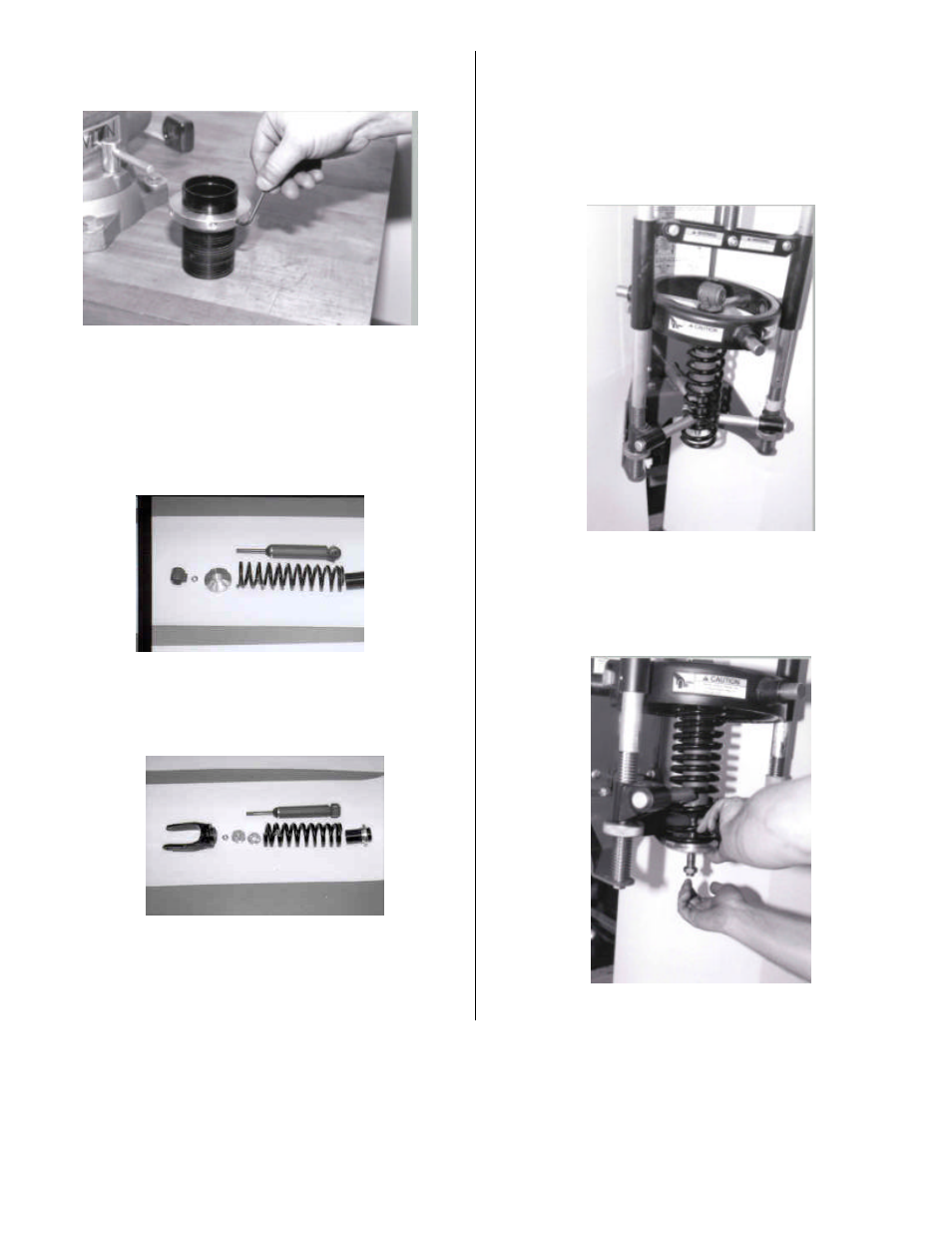

Step 8 Assembly of Front shocks
8(a) Insert coil spring with flat ground end against
threaded collar seat .
7(b) Install and tighten allen set screw with 1/8 allen
wrench (see Fig. 8).
Fig. 8
8(b) Put shock and coil spring in spring
compressor (see Fig. 11).
Fig. 11
7(c ) Slide threaded collar onto shock. It should
seat against snap ring. Front shocks are
easily identified by short threads on the piston
rod (see Fig. 9).
Fig. 9
The rears have long threads on Piston rod
(see Fig. 10).
Fig. 10
8(c) Compress coil spring until lower seat has
enough clearance to install lower seat and
9/16 jamb nut (see Fig. 12).
Fig. 12
