3
ENGLISH

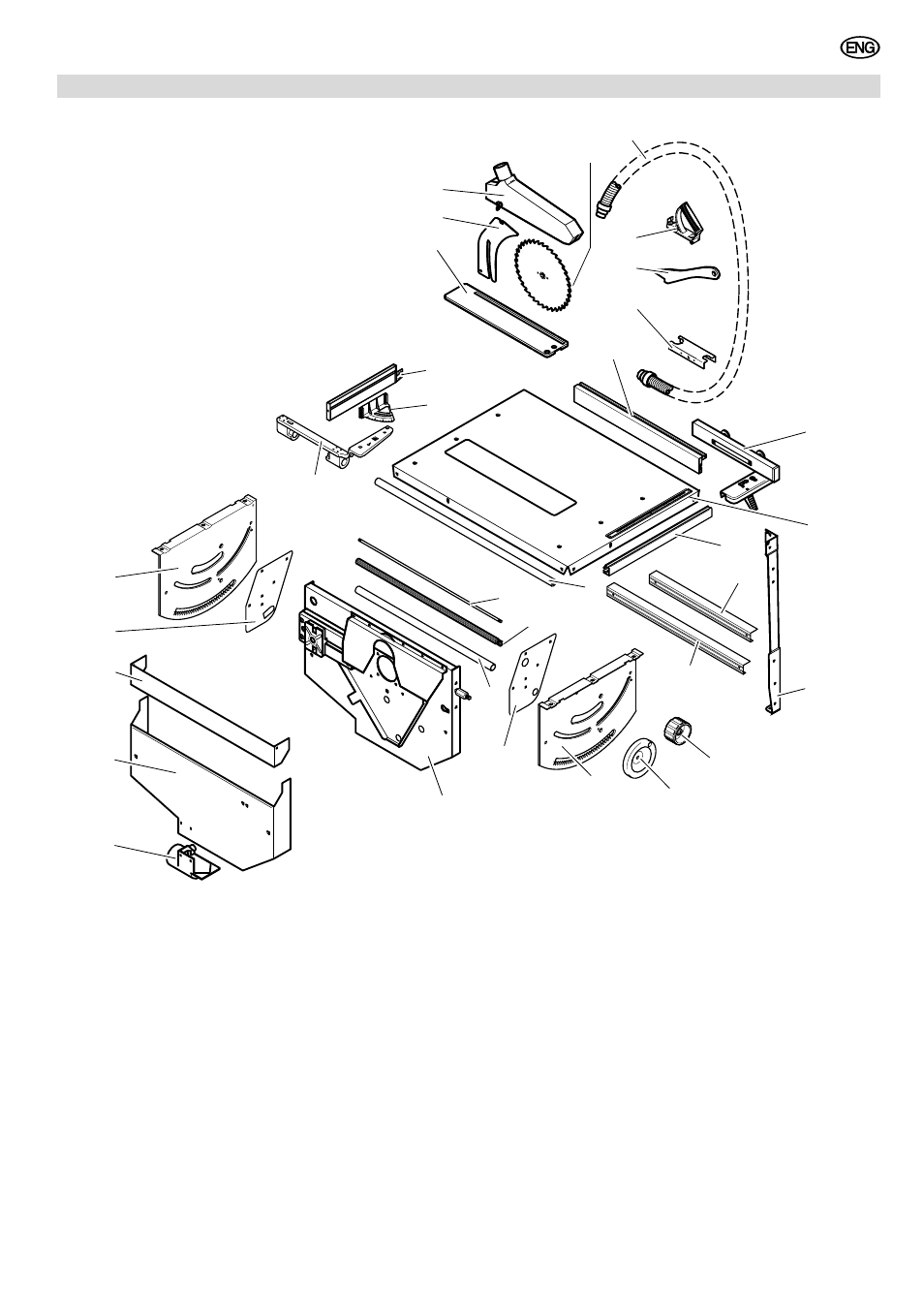

1. Scope of delivery
1
3
2
4
5
6
7
8
9
10
11
12
13
14
15
17
18
19
20
21
16
22
23
24
26
25
27
28
29
30
31
32
1 Table insert
2 Riving knife
3 Blade guard
4 Saw blade
5 Suction hose
6 Handle for push block
7 Push stick / feeding aid
8 Hose carrier
9 Rip fence extrusion / rip fence
10 Rip fence
11 Table top
12 Guide extrusion / rip fence
13 Guide bar / mitre fence
14 Stanchion, short (2x)
15 Stanchion, long (2x)
16 Leg (4x)
17 Handwheel / blade tilt
18 Handwheel / blade rise and fall
19 Chipcase guide panel, front
20 Bearing plate, front
21 Threaded rod
22 Pinion shaft
23 Setting tube
24 Motor carrier unit
25 Dust extraction port
26 Chipcase
27 Cover
28 Bearing plate, rear
29 Chipcase guide panel, rear
30 Fence carrier, lower /
mitre fence
31 Fence carrier, upper /
mitre fence
32 Mitre fence extrusion
– Assembly wrench
– Hardware bag
