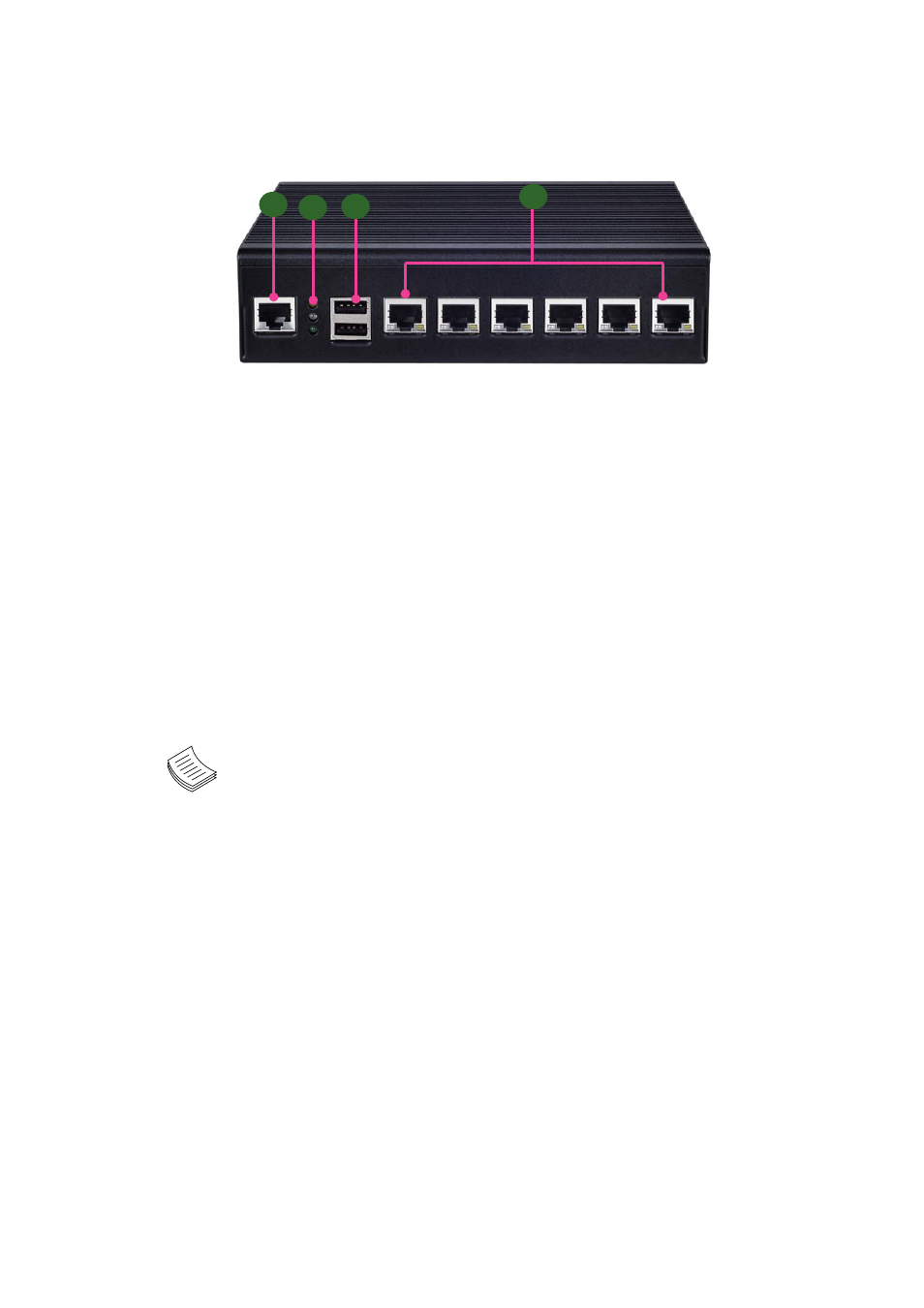

Front Panel Features
F4
F1 F2 F3
LAN1 LAN2
Intel i210AT Intel i210AT
LAN3 LAN4
Marvell 88E1543 Marvell 88E1543
LAN5 LAN6
Marvell 88E1543 Marvell 88E1543
(bypass pair)
F1 Console Port
RJ-45 console port: it is used to connect to a computer terminal for diagnostic or configuration
purpose.
F2 SSD/Status/Power LED
F3 Two USB 2.0 Ports
F4 Ethernet Ports (LAN1: PXE-capable Port, LAN5-LAN6: bypass pair
* )
LAN3~LAN6 GbE ports are provided by Marvell 88E1543 and LAN1~LAN2 are provided by Intel
i210AT. LAN1 is capable of Preboot eXecution Environment (PXE) (This feature needs to be enabled or
disable in the BIOS; the default is disabled). One pair (LAN5-LAN6) can be configured as LAN Bypass
by using Lanner Gen2 Bypass technology when failure events occur. This feature can be enabled
dynamically with a watch dog timer. Refer to your User’s Manual CD for sample implementation of
this feature.
Note:
The LAN bypass functionality is only available on model FW-7525A/C/D 1.
The FW-7525B only has 4 Ethernet ports. 2.
