Installing FW-7525 on a Rack
FW-7525 can be mounted on a wall by using optional
mounting kit.
Please read the precautions first.
1. Elevated Operating Ambient - If installed in a closed or
multi-unit rack assembly,
the operating ambient temperature of the rack
environment may be greater than room
ambient. Therefore, consideration should be given to
installing the equipment in an
environment compatible with the maximum ambient
temperature (Tma) specified by the manufacturer.
2. Reduced Air Flow - Installation of the equipment in a
rack should be such that the
amount of air flow required for safe operation of the
equipment is not compromised.
Mechanical Loading - Mounting of the equipment in the
rack should be such that a
hazardous condition is not created due to uneven
mechanical loading.
3. Circuit Overloading - Consideration should be given to
the connection of the
equipment to the supply circuit and the effect that
overloading of the circuits might have
on over-current protection and supply wiring.
Appropriate consideration of equipment
nameplate ratings should be used when addressing this
concern.
4. Reliable Earthing - Reliable earthing of rack-mounted
equipment should be maintained. Particular attention
should be given to supply connections other than direct
connections to the branch circuit (e.g. use of power
strips).”
Warning :
Slide/rail mounted equipment is not to be used as a shelf
or a work space
______________________________________________
After reading the precautions, please see the following
for mounting FW-7525 on a rack.

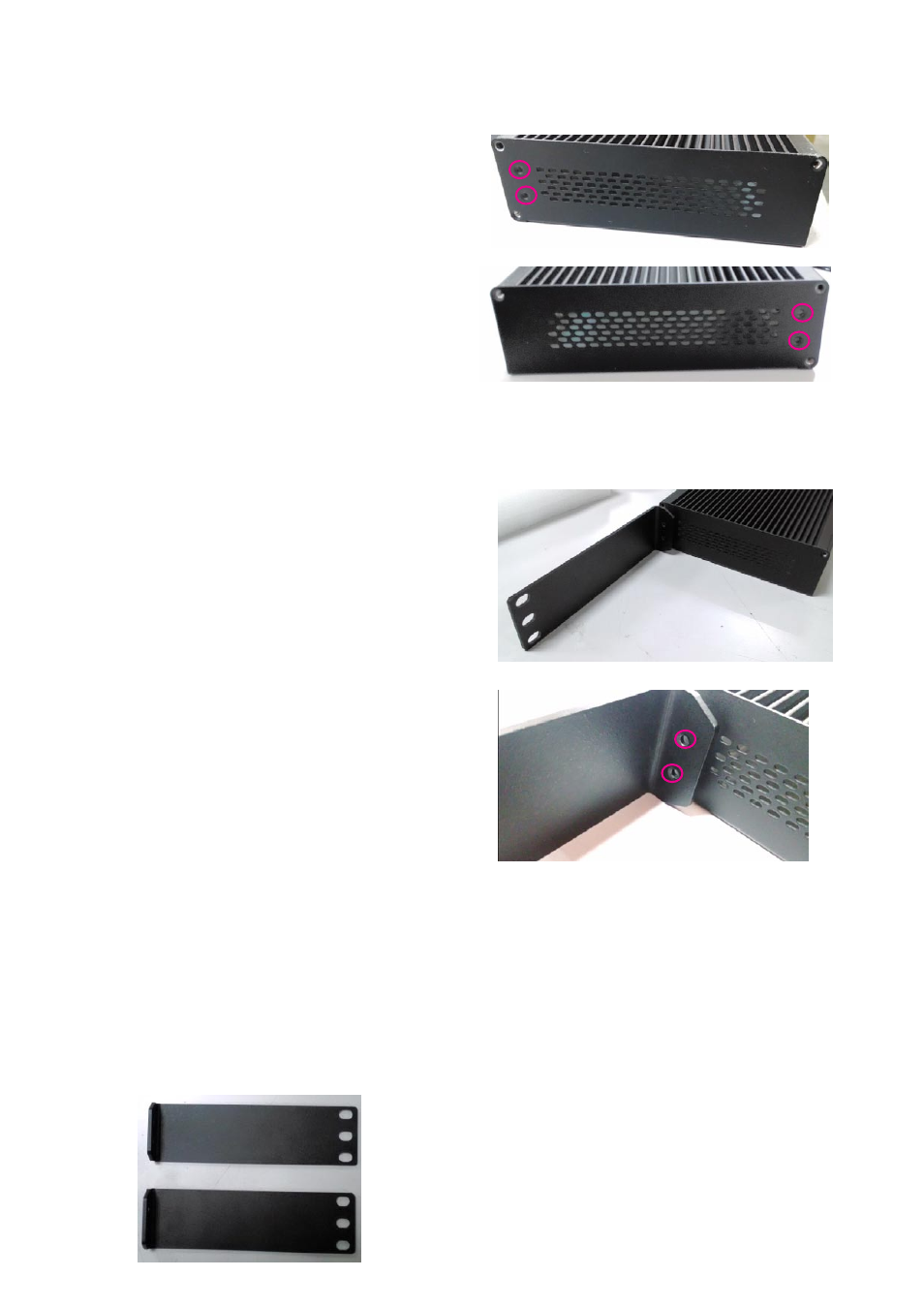

1. Prepare the L-shaped rackmounting brackets.
2. Locate the 2 screw holes on each side of the system.
3. Attach the L-shaped brackets to the screw holes on each
side of the system, as the image below. Apply screws to
secure the brackets until totally fixed.
