Drawer Port
The connector is a MOLEX 52065-6615 equivalent 6-pin modular connector on the optional
drawer board.

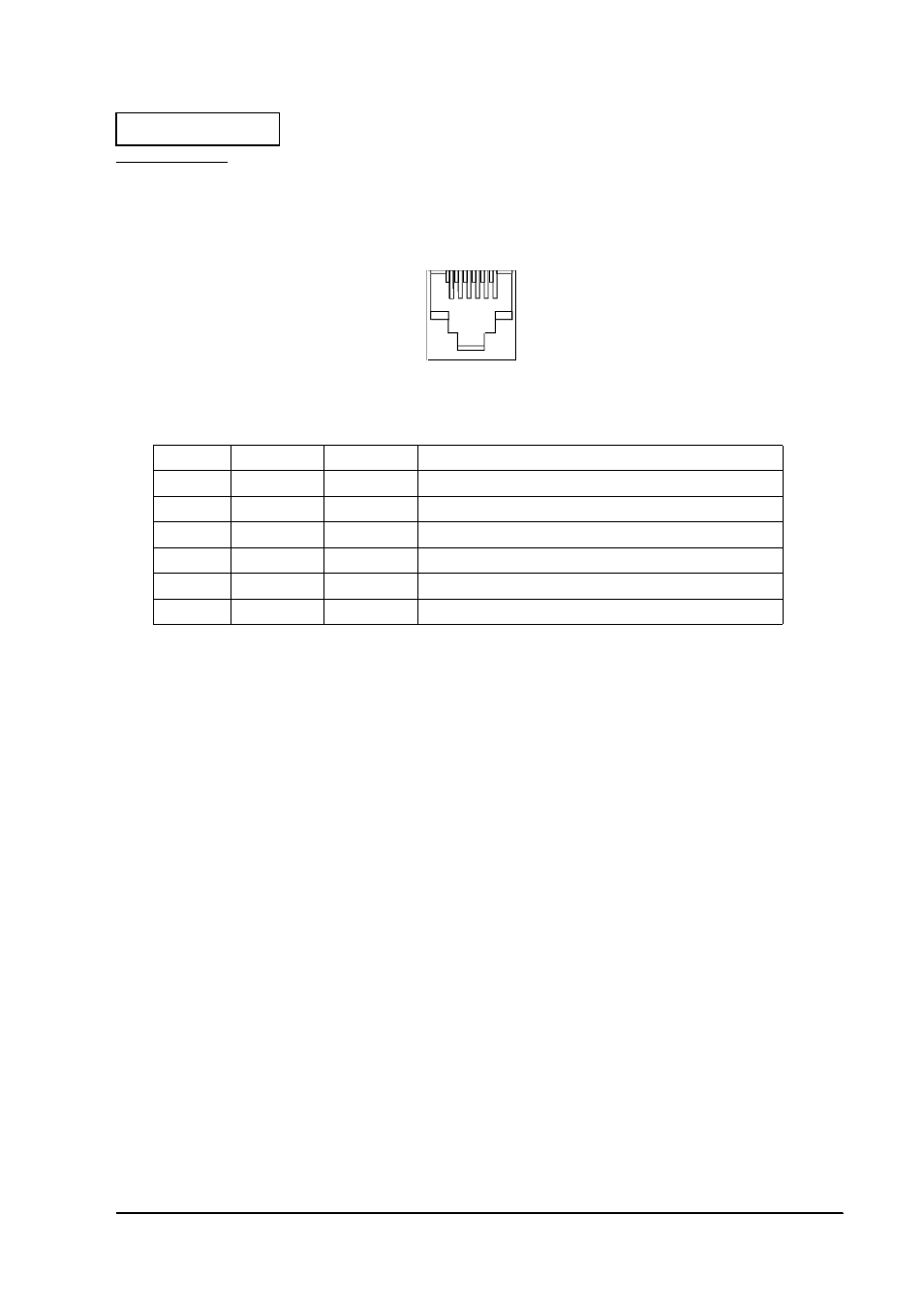

A1-10 Drawer port connector
Table A1-8
Drawer port pin assignments (DRW board CN3/4)
No.
Signal name
I/O
Description
1
FG
--
Frame ground
2
DKD1/2
O
Drawer 1/ 2 kick-out signal
Low:Open
3
DK Status
I
Drawer status signal
5
+24V
--
+24V(DC) of electrical power
6
DKD2
O
Drawer 2 kick-out signal
Low:Open
7
SG
--
Signal ground
