CRT Port
The CRT connector is a 15-pin D-Sub female connector located on the optional drawer
board.

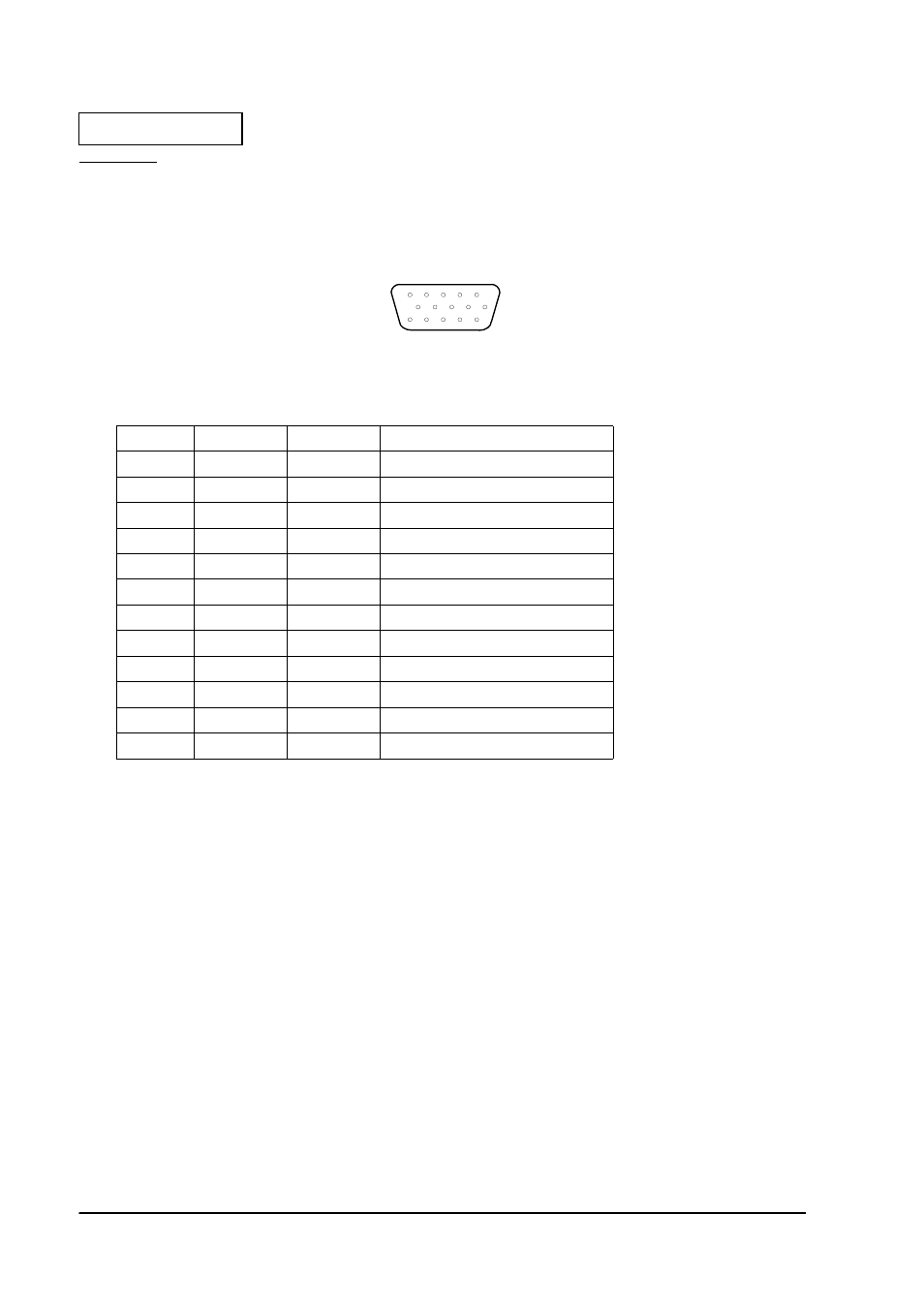

A1-9 CRT connector
Table A1-7
CRT port pin assignments(DRW board CN2)
No.
Signal name
I/O
Description
1
RED
O
Red data
2
GREEN
O
Green data
3
BLUE
O
Blue data
4
N.C.
--
Not connected
5 to 8
GND
--
Ground
9
N.C.
--
Not connected
10
GND
--
Ground
11
N.C.
--
Not connected
12
N.C.
O
Not connected
13
HSYNC
O
Horizontal synchronization signal
14
VSYNC
O
Vertical synchronization signal
15
N.C.
I
Not connected
1
10
11
6
15
5
