Basic Operation

JBL SYNTHESIS SDP-45

- 16 -

FRONT PANEL OVERVIEW

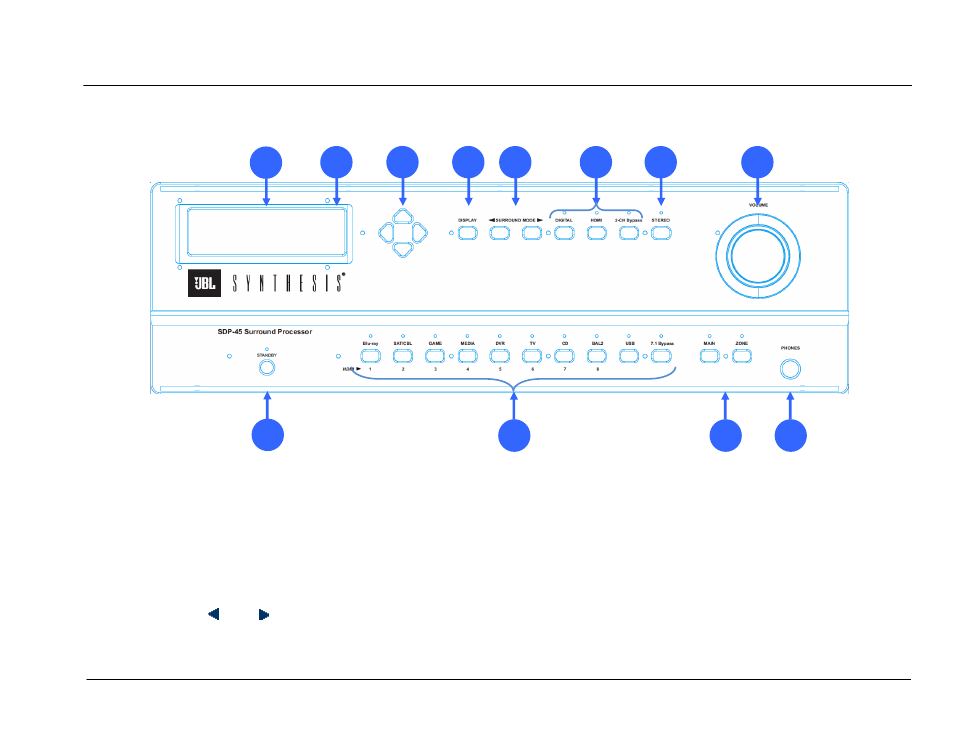

The SDP-45 is shown below. The numbers in the front panel illustration correspond with the numbered items below.

1. Standby Button

2. Front Panel Display

3. IR Receiver

4. Menu Navigation Buttons

5. Display On/Off Button

6. Surround Mode

and Buttons

7. Audio Input Select Buttons

8. Stereo / Stereo Down-mix Mode

9. Volume Control / Rotary Encoder

10. Headphone Jack [Not Available In All Regions]

11. Main / Zone Selection Buttons and MUTE LED Display

12. Source (Input) Selection Buttons
