5 Installation Procedure
YASKAWA ELECTRIC TOBP C730600 23C 1000-Series Option SI-P3/V, SI-P3/T Installation Manual 23
4.
Reattach the bottom cover.
5.
Connect the PROFIBUS-DP Option to the drive. Properly secure the tabs on the left
and right sides of the PROFIBUS-DP Option to the drive case.

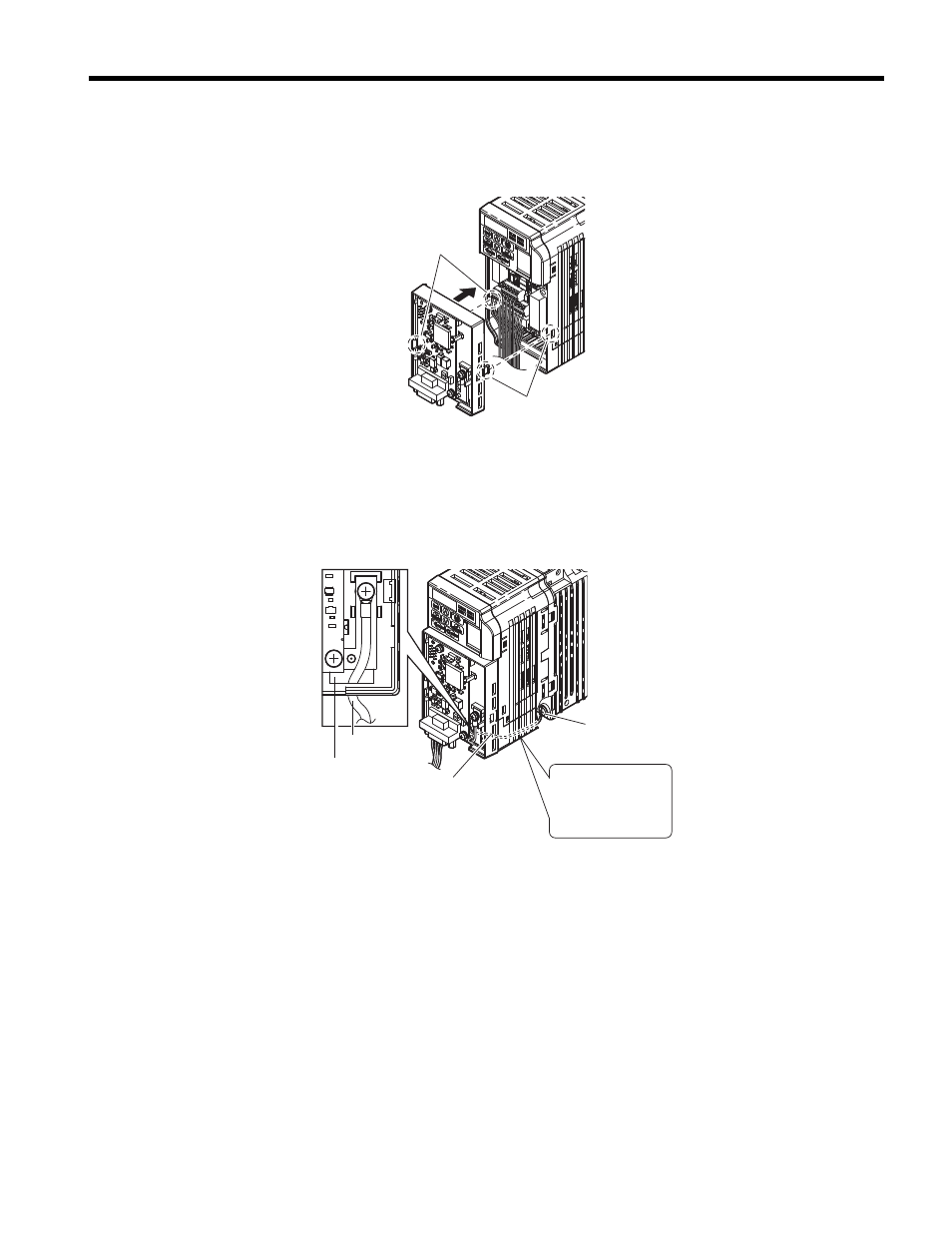

Figure 12
Figure 12 Attach PROFIBUS-DP Option
6.
Connect the ground cable from the drive ground terminal to the PROFIBUS-DP
Option ground. When wiring the PROFIBUS-DP Option, pass the ground cable
through the inside of the drive bottom cover, then pass the ground cable into the
through-hole at the front of the PROFIBUS-DP Option.
Figure 13
Figure 13 Ground Cable Connection
Tabs should line up
Tabs should line up
Ground
cable
Drive ground
terminal
Pass the ground
cable through
the bottom cover
of the drive.
Through-hole
for ground cable
Ground cable
