ShoreLand'r SRV59TBBAL - Manual (Page 8)

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com
0003249
Page 8 Rev G 04/10/2009

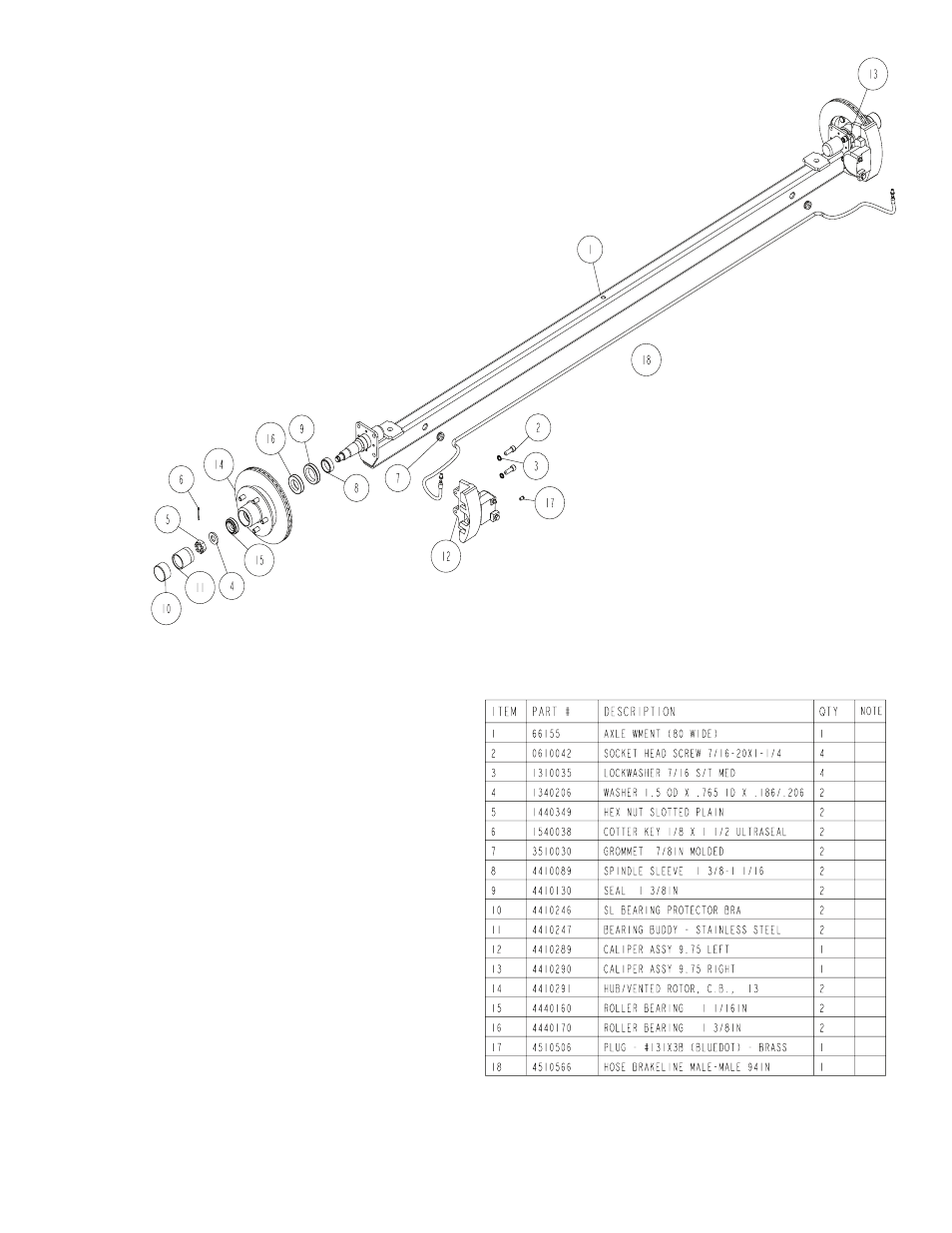

secure with 9/16” lock nut. Repeat on other side. To mount
the front non brake axle, insert a spring bushing into the front
of the rocker and align with the hole, insert a 9/16” x 3-¼”
hex bolt and secure with a 9/16” lock nut. Repeat on the
other side. Swing axle into place so the front of the leaf
spring aligns with the hole in the front loop on the spring
bracket and insert a 9/16” x 3- ¼” hex bolt from the outside in
and secure with a 9/16” lock nut. Repeat on other side.
Remove plug from right side caliper and insert brake hose
assembly securely, place the other end of the hose into the
clip on the spring bracket and secure with the hose clip.
Carefully uncoil the brake line and insert into the hose.
Tire And Wheel Assemblies
Mount the tire and wheel assemblies using the 1/2” fine
threaded tapered lug nuts provided. Tighten to 80-90
ft/lb. of torque using the rotation pattern as shown in the
ShoreLandr’s Owners Manual. Re-torque the lug nuts after
50 miles of driving and then periodically thereafter.
Brakes:
Refer to the Brake Service Manual for service and mainte-
nance.
